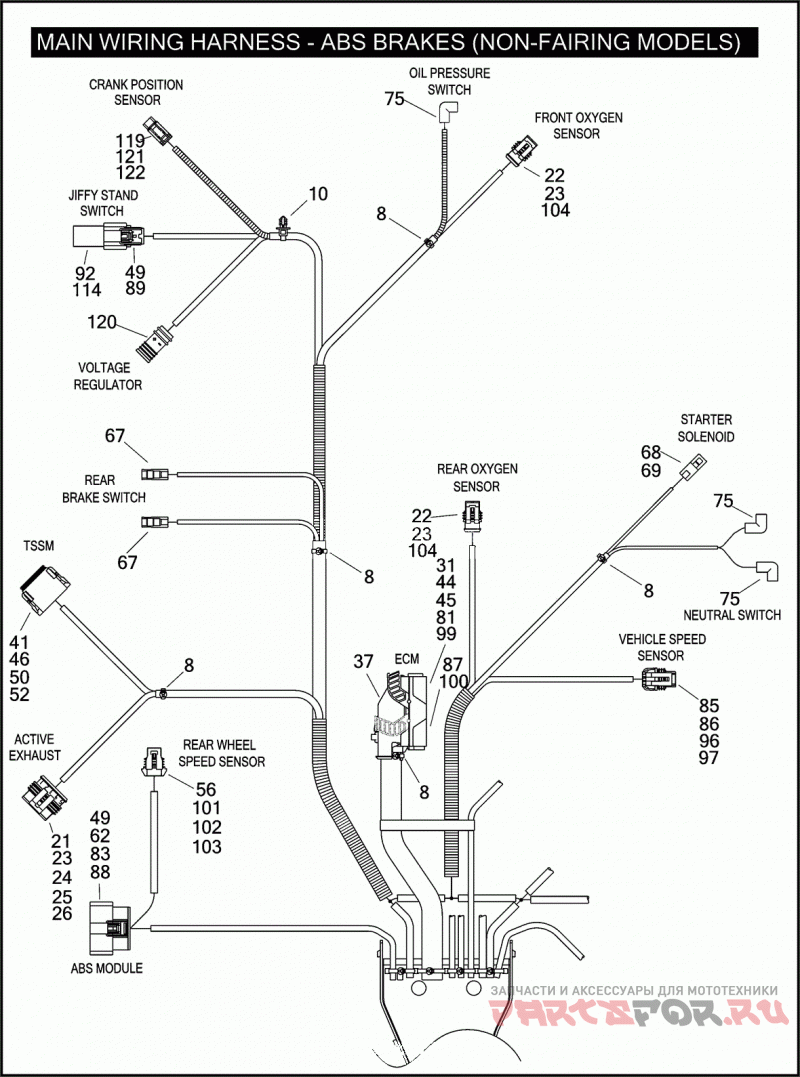

MAIN WIRING HARNESS - ABS BRAKES (NON-FAIRING MODELS) (5 OF 5)

Harley Davidson FLHR 1FB4 ROAD KING (2009)

Harley Davidson
#oem кодцена
70120-09
Деталь MAIN WIRING HARNESS - ABS
101
72606-08
Деталь SOCKET HOUSING 2-WAY
102
72609-08
Деталь SECONDARY LOCK 2-WAY (BLACK)
103
72610-08
Деталь SEAL 18-20 AWG (WHITE)
104
72611-07
Деталь TERMINAL SOCKET, 16-20 AWG (GOLD)
105
72620-08
Деталь FUSE COVER REAR
106
72914-01BK
Деталь HOUSING SOCKET, 4-WAY (BLACK)
107
72991-01
Деталь SOCKET TERMINAL 18-22 AWG
108
73102-96BK
Деталь PIN HOUSING 2-PLACE
109
73102-96WE
Деталь PIN HOUSING 2-POSITION (WHITE)
110
73106-96BK
Деталь PIN HOUSING 6-PLACE (BLACK)
111
73108-96BK
Деталь PIN HOUSING 8-PLACE (BLACK)
112
73190-96
Деталь TERMINAL PIN, 16-20 AWG
113
73198-96
Деталь CONNECTOR ANCHOR
114
73213-07
Деталь RETAINER X-MAS TREE CLIP
115
73301-04
Деталь HOUSING PIN, 2-WAY
116
73303-04
Деталь SECONDARY LOCK FEMALE, 2-WAY
117
73304-04
Деталь TERMINAL FEMALE, 10 AWG
118
73305-04
Деталь SEAL WIRE 10 AWG (BLUE)
119
74112-98BK
Деталь SOCKET HOUSING 2-WAY (BLACK)
120
74115-06
Деталь DC LEAD ASSEMBLY
121
74152-98
Деталь SOCKET LOCK SECONDARY, 2-WAY
122
74191-98
Деталь SOCKET TERMINAL
123
3634
Деталь SCREW 5/16-18 X 1.0 SELF-TAPPING
