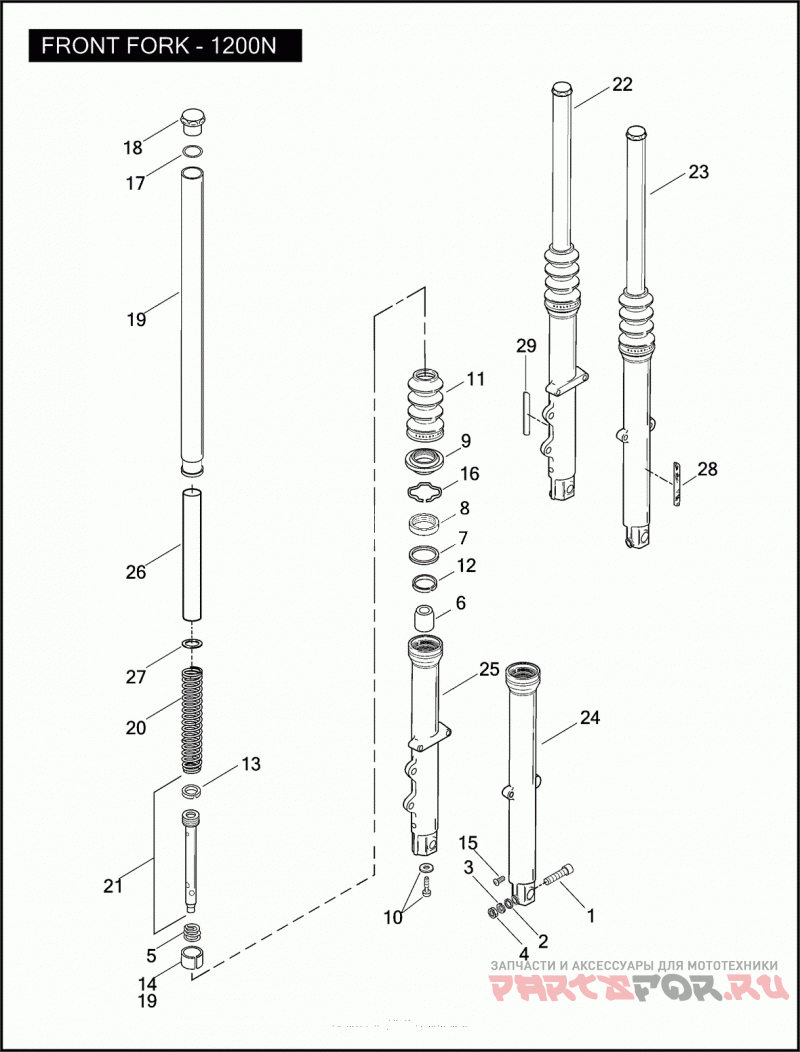

FRONT FORK - 1200N

Harley Davidson XL1200N 1CZ3 NIGHTSTER (2008)

Harley Davidson
#oem кодцена
1
4029A
SCREW 3/8-16 X 2-1/4 SOCKET HD. (BLACK)
2
6701
WASHER 3/8 X 13/16 X 1/16
3
7038
LOCKWASHER 3/8
4
7783
NUT 3/8-16 X 5/16 X 9/16 (GRADE 2)
5
45374-87
SPRING SLIDER
6
45361-90
LOWER STOP
7
45377-87
SPACER OIL SEAL
8
45378-87
Сальник
9
45401-87
SEAL DUST
10
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
11
45451-07
FORK GAITERS FRONT FORK
12
45461-87
BUSHING UPPER
13
45462-87
Кольцо
14
45465-87
BUSHING SLIDER TUBE
15
45790-80
DRAIN SCREW W/ WASHER
16
45905-87
RETAINING RING OIL SEAL
17
45984-87
Уплотнительное кольцо
18
45996-87
CAP SLIDER TUBE
19
46218-05
SLIDER TUBE W/ 45465-87
20
47299-07
Пружина
21
47313-07
PIPE COMPRESSION W/ 45462-87
22
48714-08
FORK ASSEMBLY LEFT
23
48715-08
FORK ASSEMBLY RIGHT
24
48716-08
SLIDER ASSEMBLY RIGHT
25
48726-08
SLIDER ASSEMBLY LEFT
26
48737-07
COLLAR SPRING
27
48738-07
WASHER SPRING
28
69861-07
REFLECTOR AMBER - RIGHT
29
69862-07
REFLECTOR AMBER - LEFT
