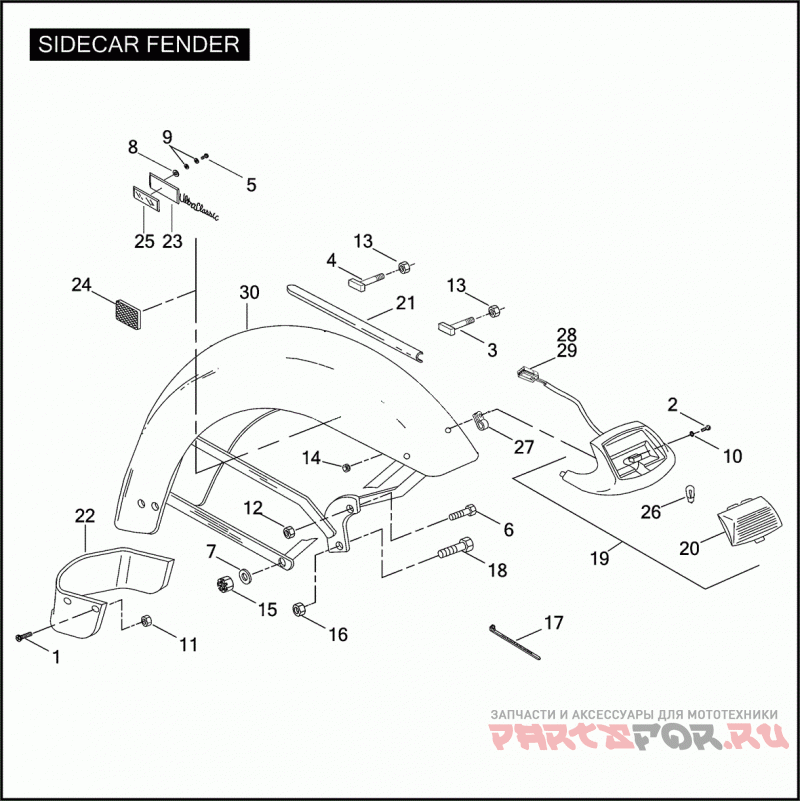

SIDECAR FENDER

Harley Davidson SIDECAR FOR FLTR 8SPX FLTR SIDECAR (2008)

Harley Davidson
#oem кодцена
1
2531
SCREW NO. 4-40 X 5/16 POZIDRIV PAN HD. (GRADE 2)
2
2604
SCREW NO. 10-32 X 1/2 POZIDRIV PAN HD. (GRADE 2)
3
3560WA
BOLT NO. 10-24 X 3/8
4
3561WC
BOLT NO. 10-24 X 3/8
6
4721
BOLT 3/8-16 X 1-1/2 HEX HD. (GRADE 5)
7
6653A
WASHER 1/2 X 1-1/8 X 3/32
10
7118
LOCKWASHER 3/16 INTERNAL TOOTH
11
7600
NUT NO. 4-40 KEPS
12
7601
LOCKNUT 3/8-16 FLANGE
13
7624
LOCKNUT NO. 10-24 X 1/4 X 3/8
14
7638
NUT NO. 10-32 X 1/8 X 3/8 (GRADE 2)
15
7823
NUT 5/8-18 X 3/8 X 15/16 SLOTTED (GRADE 2)
16
7993
LOCKNUT 5/8-18 X 15/16
17
10006
CABLE STRAP
17
10065
CABLE STRAP
18
41720-98
BOLT LOWER FENDER MOUNT TO FRAME
19
59663-99
LAMP ASSEMBLY FENDER TIP, W/ 59180-80, 68193-95, 73153-96BK, & 73191-96
20
59180-80
LENS FENDER TIP LAMP
21
59211-74A
TRIM FRONT FENDER
22
59231-86
TRIM SKIRT FRONT FENDER, LOWER
24
59255-91
REFLECTOR (red)
26
68193-95
BULB WEDGE TYPE
27
71795-63A
Зажим
28
73153-96BK
SOCKET HOUSING 3-PLACE
29
73191-96
TERMINAL SOCKET, 16-20 GAUGE
30
87901-99A
FENDER sidecar (prime)
