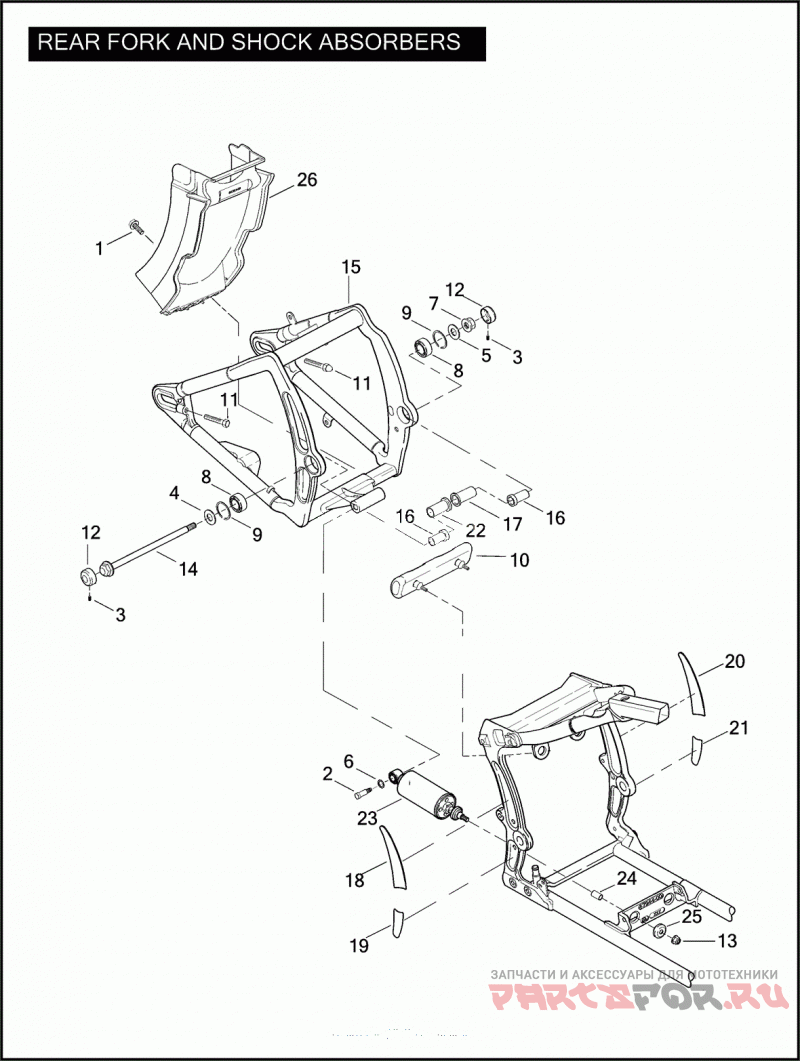

REAR FORK & SHOCK ABSORBERS

Harley Davidson FXSTSSE2 1PT9 CVO SOFTAIL SPRINGER (2008)

Harley Davidson
#oem кодцена
1
3588
SCREW 1/4-20 X 1/2 HEX FLANGE HD.
2
4074A
BOLT 1/2-13 X 2 HEX HD., SHOULDER
3
4695
SET SCREW 1/4-20 X 1/4 HEX DRIVE
4
6534
WASHER 3/8 X 1-3/4 X 3/32 HARDENED
5
6535
WASHER 5/16 X 1-1/4 X 3/32 HARDENED
6
6724
WASHER 21/32 X 1-1/16 X 1/16
7
7479
NUT 5/8-11 FLANGE (GRADE 6)
8
9209
BEARING W/ 11282
9
11282
RETAINING RING FORK BEARING
10
11514
BUMPER REAR FORK
11
4433
ADJUSTER SCREW RIGHT SIDE
11
8195
ADJUSTER SCREW LEFT SIDE
12
44502-03
COVER PIVOT
13
45764-00
LOCKNUT FLANGE
14
47610-08
PIVOT SHAFT
15
47574-08CRO
REAR FORK (INFERNO ORAGNE)
15
47574-08CRP
REAR FORK (BLACK DIAMOND)
15
47574-08CRR
REAR FORK (CRYSTAL COPPER)
16
48048-00A
BUSHING REAR FORK
17
48076-08
SPACER REAR FORK, LEFT HAND
18
48185-08CRO
INSERT RIGHT HAND/TOP FRAME (INFERNO ORANGE)
18
48185-08CRP
INSERT RIGHT HAND/TOP FRAME (BLACK DIAMOND)
18
48185-08CRR
INSERT RIGHT HAND/TOP FRAME (CRYSTAL COPPER)
19
48186-08CRO
INSERT RIGHT HAND/BOTTOM FRAME (INFERNO ORANGE)
19
48186-08CRP
INSERT RIGHT HAND/BOTTOM FRAME (BLACK DIAMOND)
19
48186-08CRR
INSERT RIGHT HAND/BOTTOM FRAME (CRYSTAL COPPER)
20
48194-08CRO
INSERT LEFT HAND/TOP FRAME (INFERNO ORANGE)
20
48194-08CRP
INSERT LEFT HAND/TOP FRAME (BLACK DIAMOND)
20
48194-08CRR
INSERT LEFT HAND/TOP FRAME (CRYSTAL COPPER)
21
48195-08CRO
INSERT LEFT HAND/BOTTOM FRAME (INFERNO ORANGE)
21
48195-08CRP
INSERT LEFT HAND/BOTTOM FRAME (BLACK DIAMOND)
21
48195-08CRR
INSERT LEFT HAND/BOTTOM FRAME (CRYSTAL COPPER)
22
48619-07A
SPACER REAR FORK, RIGHT HAND
23
54549-04
SHOCK ABSORBER COMPLETE
24
56182-00A
Втулка
25
56183-00
WASHER W/ GROMMET
26
60456-08
Защита
