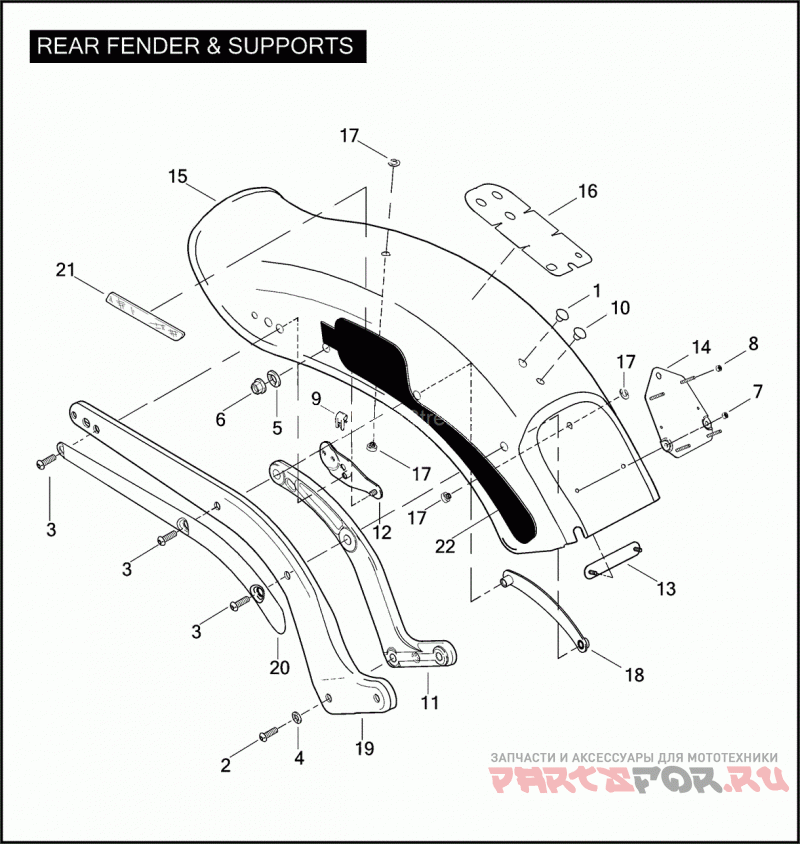

REAR FENDER & SUPPORTS

Harley Davidson FXSTSSE2 1PT9 CVO SOFTAIL SPRINGER (2008)

Harley Davidson
#oem кодцена
1
761
Заглушка
2
3056
SCREW 3/8-16 X 1-1/2 TORX BUTTON HD.
3
4266A
SCREW 3/8-16 X 7/8 BUTTON HD. (GRADE 5)
4
6400HB
WASHER 5/16 X 13/16 X 3/32
5
6701
WASHER 3/8 X 13/16 X 1/16
6
7601
LOCKNUT 3/8-16 FLANGE
7
7792
NUT 1/4-20 X 1/4 (GRADE 2)
8
8047
NUT NO. 10-32 X 7/32 FLANGE LOCK
9
10184
CLIP T-STUD
10
10228
Заглушка
11
47809-08BHP
SUPPORT LEFT HAND (CHROME)
11
47813-08BHP
SUPPORT RIGHT HAND (CHROME)
12
59076-06
BRACKET FENDER MOUNTING, REAR
13
59438-00
BRACKET ASSEMBLY ECM MOUNTING
14
59543-01
BRACKET ASSEMBLY
15
59641-08CRS
FENDER ASSEMBLY W/ TAPE (INFERNO ORANGE/FIREBURST FLAMES)
15
59641-08CRT
FENDER ASSEMBLY W/ TAPE (BLACK DIAMOND/SMOKED CANDY FLAMES)
15
59641-08CRV
FENDER ASSEMBLY W/ TAPE (CRYSTAL COPPER/BLACK ONYX)
16
59744-06
PROTECTIVE TAPE REAR FENDER
17
59768-97
FENDER SEAT NUT KIT
18
59798-06
BRACKET FENDER MOUNTING, FRONT
19
59430-08
SUPPORT RIGHT (CHROME)
19
59434-08
SUPPORT LEFT (CHROME)
20
60372-08
COVER SUPPORT RIGHT (CHROME)
20
60373-08
COVER SUPPORT LEFT (CHROME)
21
69490-07
Отражатель Красный
22
60834-07
DAMPING KIT LEFT & RIGHT (HDI)
