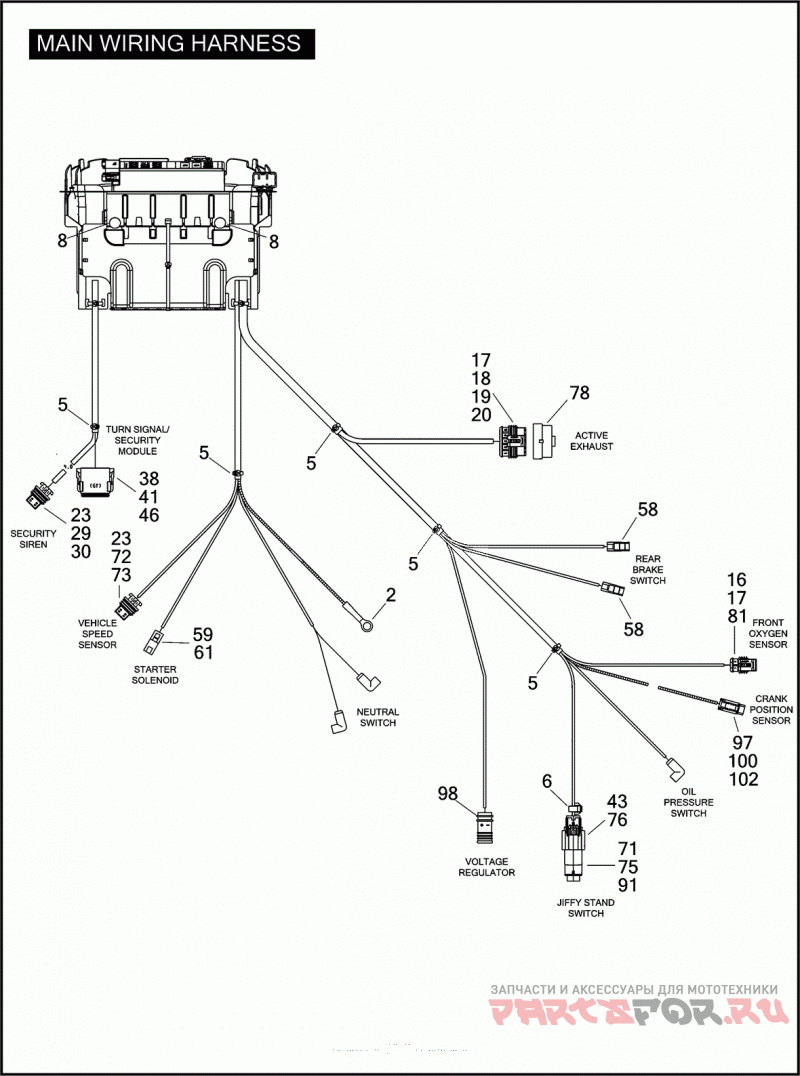

MAIN WIRING HARNESS (CONTINUED)

Harley Davidson FXSTSSE2 1PT9 CVO SOFTAIL SPRINGER (2008)

Harley Davidson
#oem кодцена
70132-08A
Деталь MAIN WIRING HARNESS (CONTINUED)
44
72189-04
Деталь SEAL PIN
45
72190-94
Деталь TERMINAL PIN
46
72191-94
Деталь TERMINAL SOCKET
47
72195-94
Деталь SEAL PIN
48
72199-94
Деталь CONNECTOR ANCHOR
49
72213-94
Деталь TERMINAL SOCKET
50
72214-94
Деталь CABLE SEAL #14-16 WIRE
51
72230-98
Деталь SOCKET HOUSING 3-WAY
52
72231-98
Деталь SECONDARY LOCK 3-WAY
53
72249-94
Деталь SHRINK TUBE
54
72254-94
Деталь TERMINAL 1/4 RING
55
72260-04
Деталь HOUSING 1-WAY (GRAY)
56
72272-07
Деталь TERMINAL SOCKET, #14-16 AWG
57
72289-04
Деталь TERMINAL FEMALE
58
72290-94
Деталь TERMINAL FEMALE
59
72295-94
Деталь HOUSING STARTER
60
72303-08
Деталь TERMINAL FEMALE, 12 AWG
61
72304-08
Деталь TERMINAL FEMALE, #14-16 AWG
62
72314-01
Деталь FUSE MAXI, 40 AMP
63
72327-03A
Деталь HOUSING FEMALE, 3-WAY
64
72330-95
Деталь FUSE 15 AMP
64
72369-08A
Деталь BRACKET FUSE BLOCK HOLDER,(BLACK)
65
72414-07BK
Деталь HOUSING 6-WAY, SOCKET
66
72427-00
Деталь TERMINAL FAST-ON, .187, 16-22 GAGUE
67
72430-00
Деталь FUSE BLOCK TYPE 0
68
72432-00
Деталь FUSE BLOCK TYPE 2
69
72434-00
Терминал
70
72469-07GY
Деталь HOUSING 8-WAY, SOCKET (GREY)
71
72473-07
Деталь SEAL PIN
72
72484-08
Деталь TERMINAL SOCKET, #20 AWG
73
72486-08
Деталь WIRE SEAL #20 AWG, GREEN
74
72499-07
Деталь WIRE SEAL #20-22 AWG, GREEN
75
72511-07BK
Деталь HOUSING 3-WAY, PINT (BLACK)
76
72512-07BK
Деталь HOUSING 3-WAY, SOCKET (BLACK)
77
72533-06
Деталь DUST CAP 2-PIN CONNECTOR
77
72548-07
Деталь COVER FUSEBLOCK (NOT ILLUSTRATED)
78
72553-07
Деталь DUST CAP 5-PIN CONNECTOR
79
72568-08
Деталь TERMINAL SOCKET, #20-22 AWG
80
72569-08
Деталь TERMINAL SOCKET, #20-22 AWG
81
72611-07
Деталь TERMINAL SOCKET, #16-20 AWG
82
72914-01BK
Деталь SOCKET HOUSING 4-WAY (BLACK)
83
72991-01
Деталь SOCKET TERMINAL #18-22 AWG
84
73103-96BK
Деталь PIN HOUSING 3-WAY
85
73104-96BK
Деталь PIN HOUSING 4-WAY (BLACK)
86
73106-96BK
Деталь PIN HOUSING 6-WAY (BLACK)
87
73108-96BK
Деталь PIN HOUSING 8-WAY (BLACK)
88
73190-96
Деталь TERMINAL PIN 20-16 GAUGE
89
73196-96
Деталь ANCHOR T-STUD
90
73199-96
Деталь ANCHOR PIN HOUSING
91
73213-07
Деталь RETAINER X-MAS TREE CLIP
92
73301-04
Деталь PIN HOUSING 2-WAY
93
73303-04
Деталь SECONDARY LOCK 2-WAY
94
73304-04
Деталь TERMINAL #10 AWG
95
73305-04
Деталь SEAL #10 AWG (BLUE)
96
74108-98BK
Деталь PIN HOUSING 8-WAY (BLACK)
97
74112-98BK
Деталь HOUSING SOCKET 2-WAY (BLACK)
98
74120-08
Деталь DC LEAD ASSEMBLY
99
74148-98
Деталь SECONDARY LOCK PIN - 8-WAY
100
74152-98
Деталь SECONDARY LOCK SOCKET - 2-WAY
101
74190-98
Деталь TERMINAL PIN
102
74191-98
Деталь TERMINAL SOCKET
103
74195-98
Деталь SEAL PIN PLUG
104
74196-04
Деталь TERMINAL SOCKET
105
74197-04
Деталь SECONDARY LOCK
