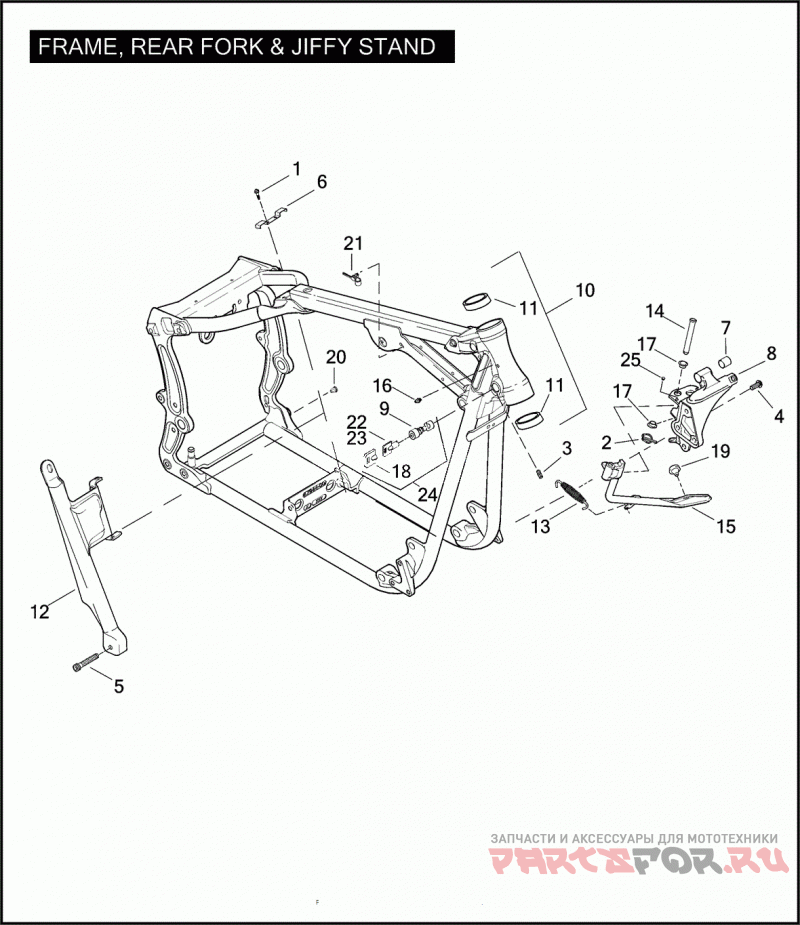

FRAME, REAR FORK & JIFFY STAND

Harley Davidson FXSTSSE2 1PT9 CVO SOFTAIL SPRINGER (2008)

Harley Davidson
#oem кодцена
1
939
SCREW 1/4-20 X 1 SELF-TAPPING, W/WASHER (GRADE 2)
2
554A
PRETZEL CLIP
3
3233
SCREW 1/4-28 X 1/4 SOCKET HD.
4
4512A
SCREW 3/8-16 X 1 TORX RECESSED BUTTON HD. (GRADE 8)
5
4813A
SCREW 1/4-20 X 1-3/8 KNURLED HD., W/LOCKPATCH
6
10193
WIRE CLAMP
7
33708-94
BEARING SLEEVE
8
33749-07A
BRACKET JIFFY STAND, SHIFT LEVER, & FOOTREST (CHROME) W/ 33708-94
9
45680-90
FORKLOCK (SPECIFY KEY CODE)
10
47173-08CRO
FRAME W/ 48315-60 (2) (INFERNO ORANGE)
10
47173-08CRP
FRAME W/ 48315-60 (2) (BLACK DIAMOND)
10
47173-08CRR
FRAME W/ 48315-60 (2) (CRYSTAL COPPER)
11
48315-60
BEARING CUP
12
48895-08CRO
POST ASSEMBLY SEAT (INFERNO ORANGE)
12
48895-08CRP
POST ASSEMBLY SEAT (BLACK DIAMOND)
12
48895-08CRR
POST ASSEMBLY SEAT (CRYSTAL COPPER)
13
49725-07A
SPRING jiffy stand
14
50003-89B
CLEVIS PIN
15
50087-07A
LEG JIFFY STAND (CHROME)
16
83459-09
FITTING lubrication
17
53176-08
Втулка
18
61081-92
COVER KEY HEAD SET
19
62123-07
Амортизатор ударов
20
68446-00
Заглушка
21
70446-08
RETAINER THROTTLE CABLE
22
71031-04
KEY KIT DECO
24
71557-07
LOCK SET COMPLETE W/ KEYS, IGNITION SWITCH & FORK LOCK
24
91625-04
COVER KIT MOTORCYCLE (NOT ILLUSTRATED)
