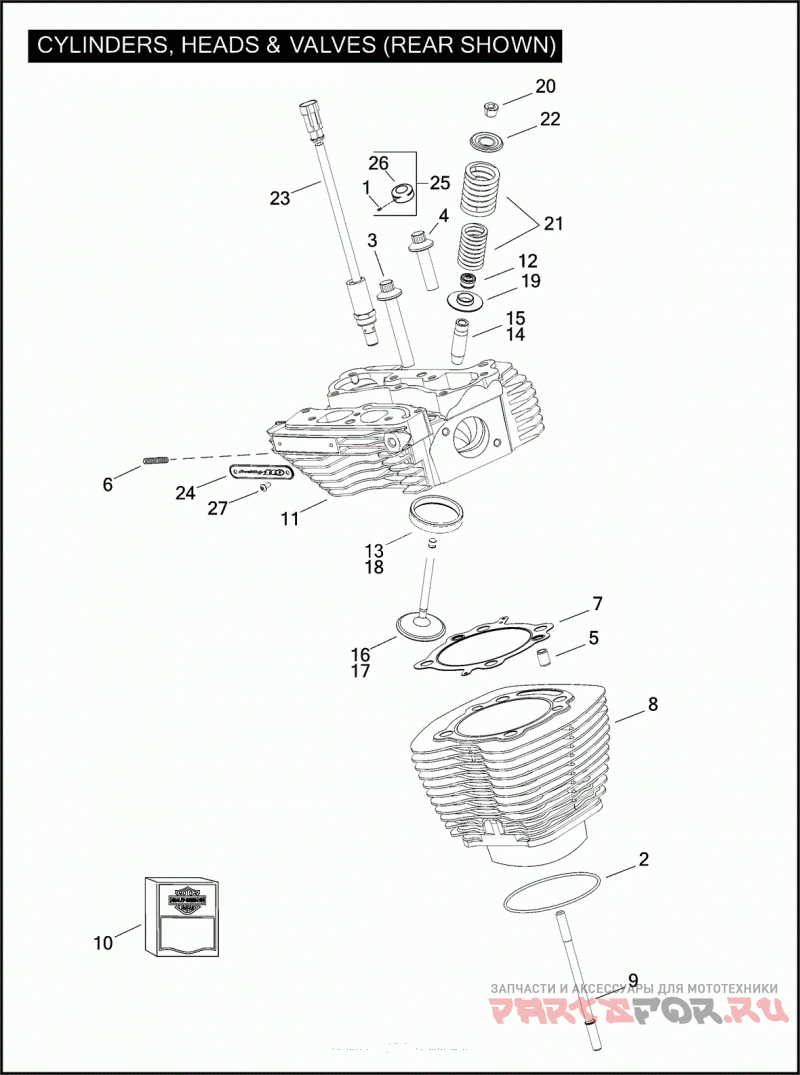

CYLINDERS, HEADS, & VALVES (REAR SHOWN)

Harley Davidson FXSTSSE2 1PT9 CVO SOFTAIL SPRINGER (2008)

Harley Davidson
#oem кодцена
1
4695
SET SCREW 1/4-20 X 1/4 HEX DRIVE
3
16478-85A
SCREW INTERNAL-THREAD, 3-3/16 IN. LONG
4
16480-92A
SCREW INTERNAL-THREAD, 1-7/8 IN. LONG
5
16595-99A
DOWEL RING
6
16715-83
STUD EXHAUST-PORT
7
16801-07B
Прокладка
8
17454-08A
CYLINDER ASSEMBLY WITH 16595-99A (GRAY GRANITE)
9
16834-99A
STUD CYLINDER
10
17052-99C
GASKET KIT top end
10
17053-99C
GASKET KIT engine overhaul
11
17328-08A
HEAD CYLINDER, FRONT, W/ 18048-98A, 18161-08, 18168-08 & 18189-07 (GRANITE)
11
17331-08A
HEAD, cylinder, rear, w/ 18048-98A, 18161-08, 18168-08 & 18189-07 (granite)
12
18046-98
SEAL VALVE
13
18048-98A
SEAT EXHAUST-VALVE
14
18151-05
GUIDE EXHAUST-VALVE
14
18153-05
GUIDE EXHAUST-VALVE, 0.001 O.S.
14
18155-05
GUIDE EXHAUST-VALVE, 0.002 O.S.
14
18157-05
GUIDE EXHAUST-VALVE, 0.003 O.S.
15
18152-05
GUIDE INTAKE-VALVE
15
18154-05
GUIDE INTAKE-VALVE, 0.001 O.S.
15
18156-05
GUIDE INTAKE-VALVE, 0.002 O.S.
15
18158-05
GUIDE INTAKE-VALVE, 0.003 O.S.
16
18183-03
VALVE EXHAUST
17
18187-07
VALVE INTAKE
18
18189-07
SEAT INTAKE-VALVE
19
18270-00A
COLLAR, valve spring lower
20
18271-00
KEY COLLAR, VALVE-SPRING
21
18272-00
SPRING SET INNER & OUTER, VALVE
22
18280-07
COLLAR UPPER, VALVE-SPRING
23
28861-07A
SOLENOID, auto compression release, w/ 72009-05 & 72011-05
24
29517-07A
MEDALLION KIT
25
43822-01
KIT HEADBOLT COVER W/ 43823-01A (4) & 4695 (4)
26
43823-01A
HEADBOLT COVER
