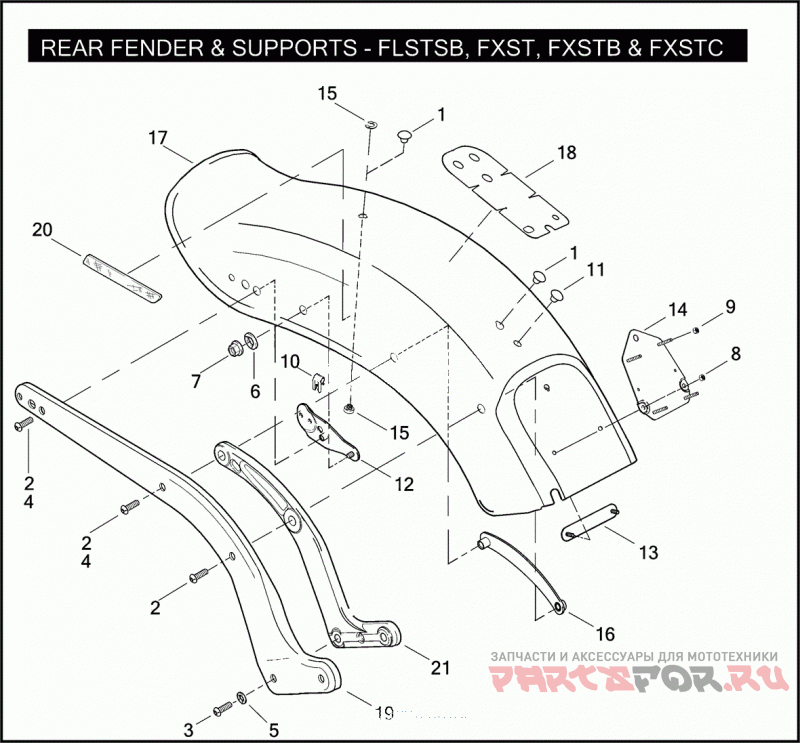

REAR FENDER & SUPPORTS - FLSTSB & FXST, FXSTB, FXSTC

Harley Davidson FXSTC 1JL5 SOFTAIL CUSTOM (2008)

Harley Davidson
#oem кодцена
1
761
Заглушка
2
4266A
SCREW 3/8-16 X 7/8 BUTTON HD. (GRADE 5)
3
3056
SCREW 3/8-16 X 1-1/2 TORX BUTTON HD.
4
4598
SCREW 3/8-16 X 1-1/8 SEMS TORX BUTTON HD.
5
6400HB
WASHER 5/16 X 13/16 X 3/32
6
6701
WASHER 3/8 X 13/16 X 1/16
7
7601
LOCKNUT 3/8-16 FLANGE
8
7792
NUT 1/4-20 X 1/4 (GRADE 2)
9
8047
NUT NO. 10-32 X 7/32 FLANGE LOCK
10
10184
CLIP T-STUD
11
10228
Заглушка
12
59076-06
BRACKET FENDER MOUNTING, REAR
13
59438-00
BRACKET ASSEMBLY ECM MOUNTING
14
59543-01
BRACKET ASSEMBLY
16
59798-06
BRACKET FENDER MOUNTING, FRONT
17
59914-06
FENDER ASSEMBLY (PRIME)
18
59744-06
PROTECTIVE TAPE REAR FENDER
19
59430-08
SUPPORT RIGHT (CHROME)
19
59434-08
SUPPORT LEFT (CHROME)
19
60834-07
INNER FENDER DAMPING KIT (NOT ILLUSTRATED)
20
69490-07
Отражатель Красный
21
47813-08BHP
SUPPORT RIGHT
21
47809-08BHP
SUPPORT LEFT
