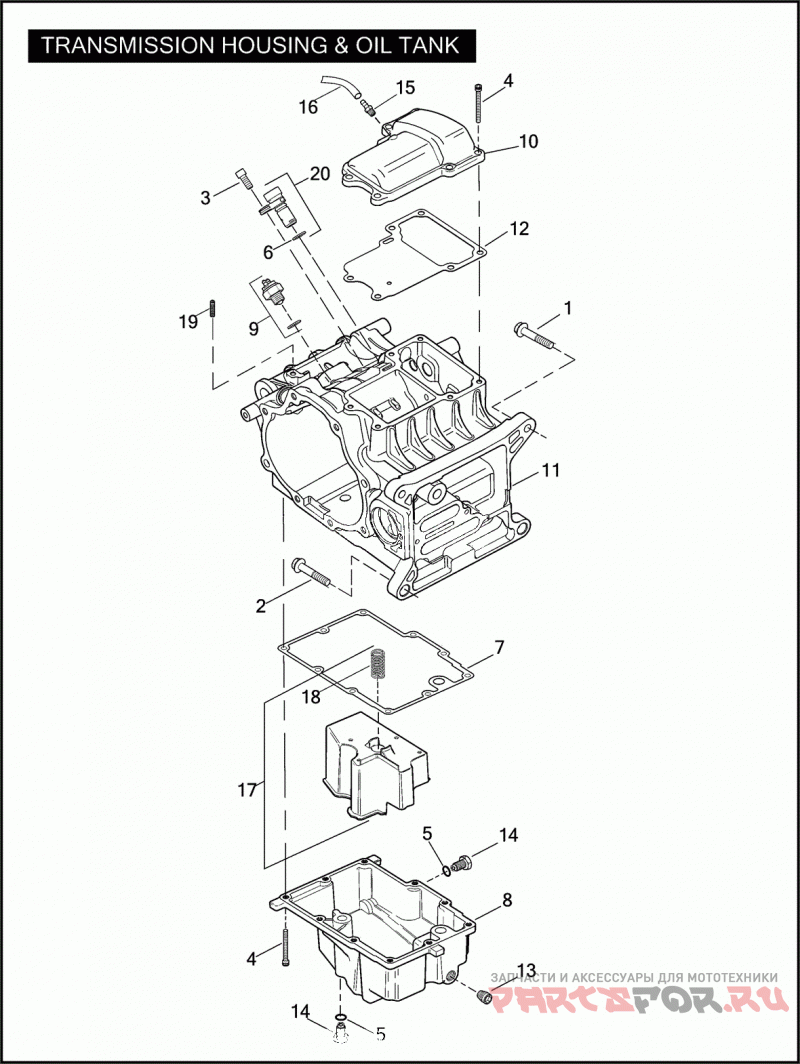

TRANSMISSION HOUSING & OIL TANK

Harley Davidson FXDSE2 1PS8 CVO DYNA (2008)

TRANSMISSION HOUSING & OIL TANK

#

oem код

название

цена

1

SCREW 3/8-16 X 1-5/8 HEX FLANGE HD., W/WASHER (GRADE 8)

SCREW 3/8-16 X 1-5/8 HEX FLANGE HD., W/WASHER (GRADE 8)

2

SCREW 3/8-16 X 2.0 HEX FLANGE HD. (GRADE 8)

SCREW 3/8-16 X 2.0 HEX FLANGE HD. (GRADE 8)

3

SCREW 1/4-20 X 11/16 SEMS SOCKET HD., W/LOCKPATCH

SCREW 1/4-20 X 11/16 SEMS SOCKET HD., W/LOCKPATCH

4

SCREW 1/4-20 X 1 SOCKET HD., W/LOCKPATCH

SCREW 1/4-20 X 1 SOCKET HD., W/LOCKPATCH

5

Уплотнительное кольцо

Уплотнительное кольцо

6

Уплотнительное кольцо

Уплотнительное кольцо

7

GASKET OIL PAN

GASKET OIL PAN

8

OIL PAN (GRANITE)

OIL PAN (GRANITE)

8

TRANSMISSION, 6-SPD SPUR, GRANITE

TRANSMISSION, 6-SPD SPUR, GRANITE

9

NEUTRAL SWITCH W/ O-RING

NEUTRAL SWITCH W/ O-RING

10

TRANSMISSION COVER, top (chrome)

TRANSMISSION COVER, top (chrome)

12

GASKET COVER

GASKET COVER

13

PLUG PIPE

PLUG PIPE

14

PLUG OIL DRAIN MAGNETIC, W/ 11105

PLUG OIL DRAIN MAGNETIC, W/ 11105

15

FITTING STRAIGHT

FITTING STRAIGHT

16

HOSE VENT

HOSE VENT

17

BAFFLE ASSEMBLY W/ 62828-99

BAFFLE ASSEMBLY W/ 62828-99

18

SPRING BAFFLE

SPRING BAFFLE

19

STUD GROUND

STUD GROUND

20

SENSOR SPEEDOMETER

SENSOR SPEEDOMETER
