Глушитель для мотоциклов Harley Davidson FXDSE2 1PS8 CVO DYNA (2008) (2008)

Москва и регионы России

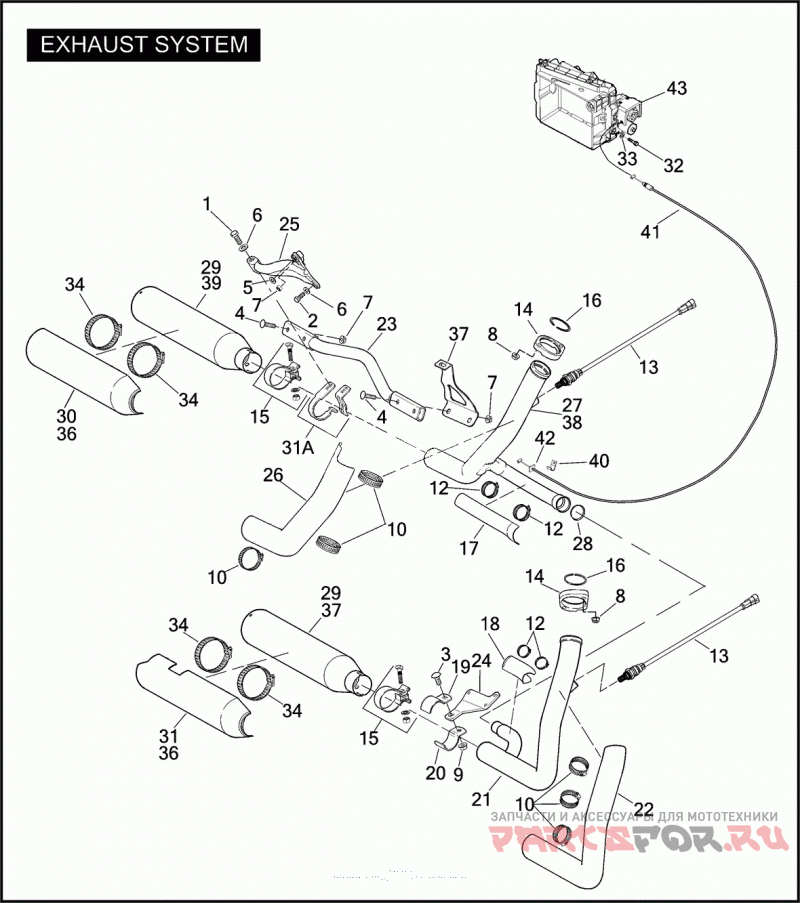

Глушитель

Harley Davidson FXDSE2 1PS8 CVO DYNA (2008)

Глушитель

#

oem код

название

цена

1

BOLT 3/8-16 X 1 HEX HD. (GRADE 5)

BOLT 3/8-16 X 1 HEX HD. (GRADE 5)

2

SCREW 5/16-18 X 1-3/4 HEX HD. (GRADE 5)

SCREW 5/16-18 X 1-3/4 HEX HD. (GRADE 5)

3

BOLT 3/8-16 X 7/8 CARRIAGE (GRADE 5)

BOLT 3/8-16 X 7/8 CARRIAGE (GRADE 5)

4

BOLT 5/16 X 1-1/4 CARRIAGE (GRADE 5)

BOLT 5/16 X 1-1/4 CARRIAGE (GRADE 5)

5

WASHER 3/8 X 13/16 X 1/16

WASHER 3/8 X 13/16 X 1/16

6

WASHER 5/16 X 11/16 X 1/16

WASHER 5/16 X 11/16 X 1/16

7

LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE

LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE

8

NUT 5/16-24 FLANGE

NUT 5/16-24 FLANGE

9

LOCKNUT 3/8-16 FLANGE

LOCKNUT 3/8-16 FLANGE

10

CLAMP WORM DRIVE #24

CLAMP WORM DRIVE #24

11

CABLE STRAP (NOT SHOWN)

CABLE STRAP (NOT SHOWN)

12

CLAMP WORM DRIVE

CLAMP WORM DRIVE

13

SENSOR O2

SENSOR O2

14

FLANGE EXHAUST PIPE

FLANGE EXHAUST PIPE

16

Стопорное кольцо

Стопорное кольцо

17

SHIELD CROSSOVER, REAR (JAPAN)

SHIELD CROSSOVER, REAR (JAPAN)

18

SHIELD CROSSOVER, FRONT

SHIELD CROSSOVER, FRONT

19

CLAMP EXHAUST, TOP

CLAMP EXHAUST, TOP

20

CLAMP EXHAUST, BOTTOM

CLAMP EXHAUST, BOTTOM

21

EXHAUST PIPE ASSEMBLY FRONT

EXHAUST PIPE ASSEMBLY FRONT

22

HEATSHIELD ASSEMBLY FRONT

HEATSHIELD ASSEMBLY FRONT

23

SUPPORT BAR MUFFLER

SUPPORT BAR MUFFLER

24

MOUNTING BRACKET FRONT (REFERENCE ONLY)

MOUNTING BRACKET FRONT (REFERENCE ONLY)

25

BRACKET REAR EXHAUST

BRACKET REAR EXHAUST

26

HEATSHIELD REAR (CHROME)

HEATSHIELD REAR (CHROME)

27

EXHAUST PIPE ASSEMBLY REAR

EXHAUST PIPE ASSEMBLY REAR

28

GASKET EXHAUST INTERCONNECT

GASKET EXHAUST INTERCONNECT

29

MUFFLER CHROME

MUFFLER CHROME

30

SHIELD MUFFLER, 3.25 INCH

SHIELD MUFFLER, 3.25 INCH

31

SHIELD MUFFLER, 3.25 INCH

SHIELD MUFFLER, 3.25 INCH

31A

CLAMP 2-PIECE ASSEMBLY

CLAMP 2-PIECE ASSEMBLY

32

SCREW 1/4-20 X 3/4 SOCKET PAN HD.

SCREW 1/4-20 X 3/4 SOCKET PAN HD.

33

WASHER 1/4 X 5/8 X 1/16

WASHER 1/4 X 5/8 X 1/16

34

CLAMP WORM DRIVE (HDI)

CLAMP WORM DRIVE (HDI)

35

BRACKET EXHAUST VALVE (HDI)

BRACKET EXHAUST VALVE (HDI)

36

SHIELD MUFFLER (HDI)

SHIELD MUFFLER (HDI)

37

MUFFLER FRONT, CHROME (HDI)

MUFFLER FRONT, CHROME (HDI)

38

EXH PIPE ASY,RR CHRM-HDI

EXH PIPE ASY,RR CHRM-HDI

39

MUFFLER REAR, CHROME (HDI)

MUFFLER REAR, CHROME (HDI)

40

CABLE RETAINER REAR (HDI)

CABLE RETAINER REAR (HDI)

41

CABLE EXHAUST VALVE (HDI)

CABLE EXHAUST VALVE (HDI)

42

CLIP CABLE (HDI)

CLIP CABLE (HDI)

43

ACTUATOR EXHAUST VALVE (HDI)

ACTUATOR EXHAUST VALVE (HDI)
