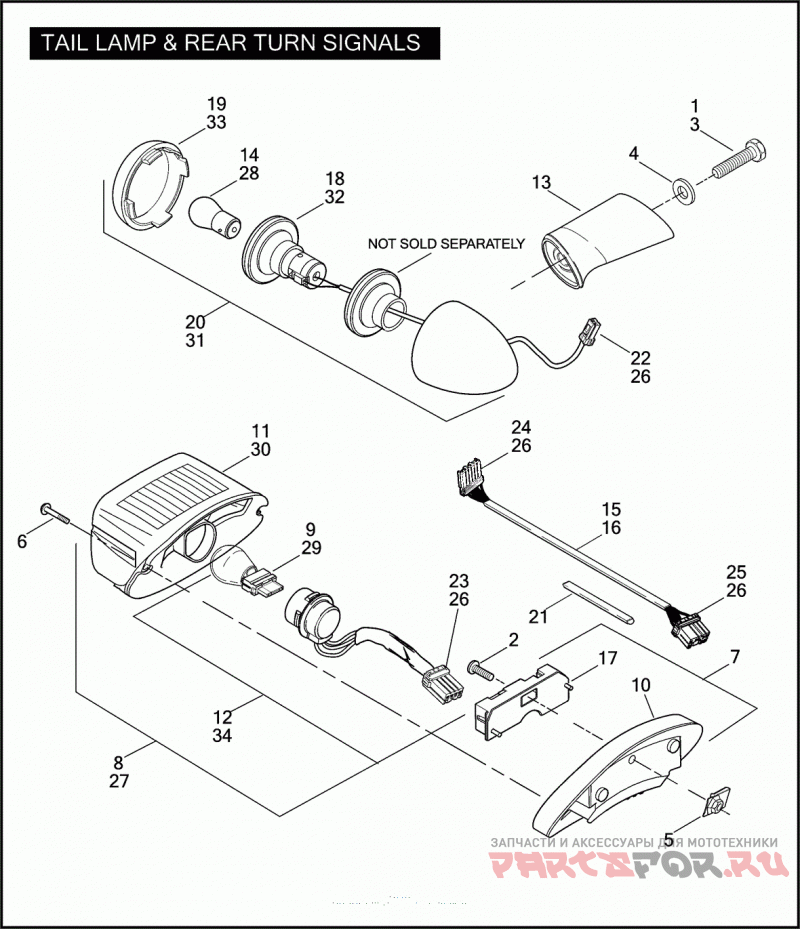

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FXDF 1GY4 DYNA FAT BOB (2008)

Harley Davidson
#oem кодцена
1
2887WA
SCREW 5/16-18 X 1-3/4 HEX HD. (GRADE 5)
4
6016
WASHER 11/32 X 11/16 X 1/16
6
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
8
68140-04
LIGHT ASSEMBLY TAIL LAMP, W/ 68369-03 & 68370-03A
9
68167-04
BULB TAIL LAMP - WEDGE MOUNT
11
68369-03
LENS TAIL LAMP, W/ 68026-99
12
68370-03A
SOCKET ASSEMBLY TAIL LAMP, W/ 68167-04, 73154-96BK & 73191-96
13
68821-00
SUPPORT REAR LAMP MOUNTING
14
68572-64B
BULB REAR TURN SIGNAL
15
68764-99
HARNESS REAR LIGHTING
16
68771-02A
HARNESS ASSEMBLY REAR LIGHTING W/ 68764-99
17
68830-99A
CIRCUIT BOARD/COVER ASSEMBLY
18
68905-00
SOCKET ASSEMBLY TURN SIGNAL
19
68973-00
LENS AMBER
20
68977-00
TURN SIGNAL ASSEMBLY REAR
21
70540-02
CONDUIT KIT
22
73152-96BK
HOUSING 2-PLACE SOCKET
23
73154-96BK
HOUSING 4-PLACE SOCKET
24
73156-96BK
HOUSING 6-PLACE SOCKET
25
73158-96BK
HOUSING 8-PLACE SOCKET
26
73191-96
TERMINAL SOCKET, #16-20 AWG (AS REQUIRED)
27
68141-04
LIGHT ASSEMBLY TAIL LAMP, W/ 68372-03 & 69187-03A (HDI)
28
68163-84
BULB (HDI)
29
68167-04
BULB TAIL LAMP (HDI) - WEDGE MOUNT
30
68372-03
LENS TAIL LAMP, W/ 68026-99 (HDI)
32
68978-00
TURN SIGNAL ASSEMBLY REAR (HDI)
33
68973-00
LENS, turn signal (amber) (HDI, ENGLAND, JAPAN) - INTERNATIONAL MODELS ONLY
34
69187-03A
SOCKET ASSEMBLY TAIL LAMP, W/ 68167-04, 73154-96BK & 73191-96 (HDI)
