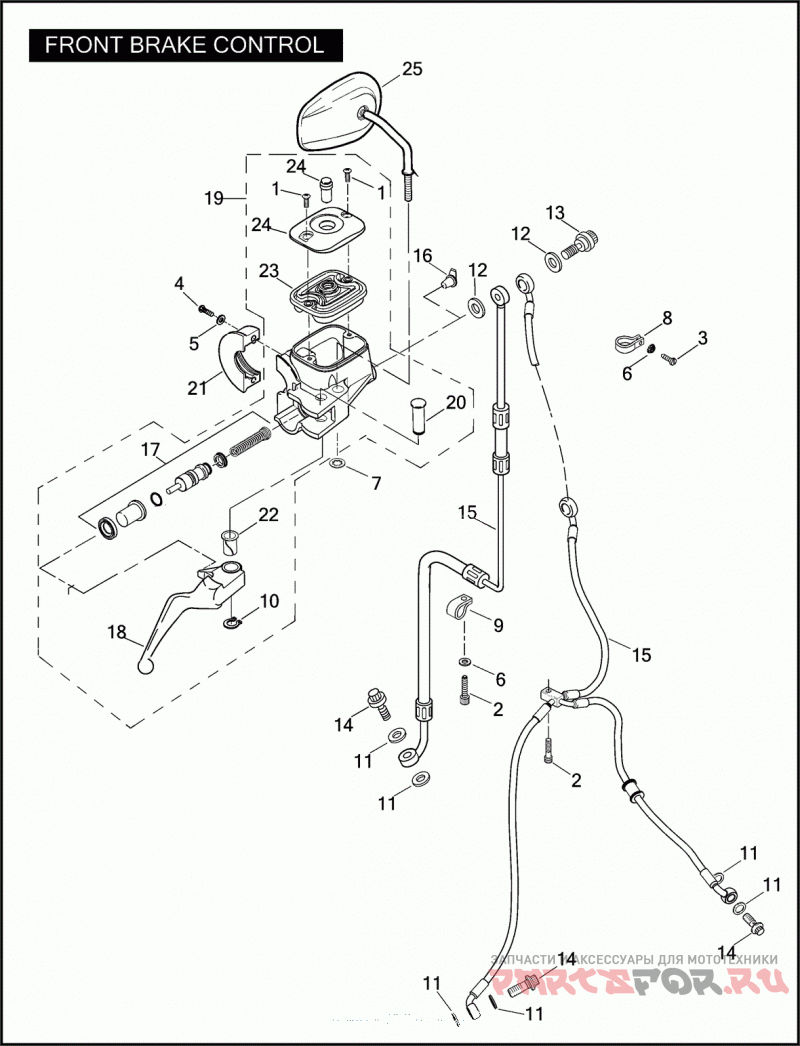

FRONT BRAKE CONTROL

Harley Davidson FXDF 1GY4 DYNA FAT BOB (2008)

Harley Davidson
#oem кодцена
1
2579A
SCREW NO. 8-32 X 5/16 POZIDRIV OVAL HD.
2
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
4
4132
SCREW 1/4-20 X 1-1/8 TORX BUTTON HD. (GRADE 5) (BLACK)
5
6101
WASHER 17/64 X 27/64 X 1/16
6
6703
WASHER 1/4 X 5/8 X 1/16
7
7127
LOCKWASHER 5/16 INTERNAL TOOTH
8
10031
CLAMP BRAKE LINE - UPPER
9
10053
Зажим
10
11143
Стопорное кольцо
11
41731-01
Прокладка
12
41733-88
GASKET 6-GY
13
41739-84A
FITTING MASTER CYLINDER
14
41747-82A
FITTING MASTER CYLINDER (9/16 IN. BORE)
15
42163-08A
BRAKE LINE DUAL DISC
16
44147-87A
CAP BLEEDER SCREW
17
45072-96D
REPAIR KIT MASTER CYLINDER (11/16 IN BORE)
18
45016-08
HAND LEVER RIGHT, W/ 45423-96
19
45170-08D
MASTER CYLINDER 11/16 IN BORE
20
45032-82
PIN PIVOT
21
45044-96A
CLAMP HANDLEBAR CONTROL
22
45423-96
BUSHING LEVER PIVOT
24
46423-05C
MASTER CYLINDER COVER KIT WITH 2590, BAFFLE PLATE AND GASKET
26
91909-03B
MIRROR KIT (RIGHT), LONG (BLACK), WITH 1, 2
