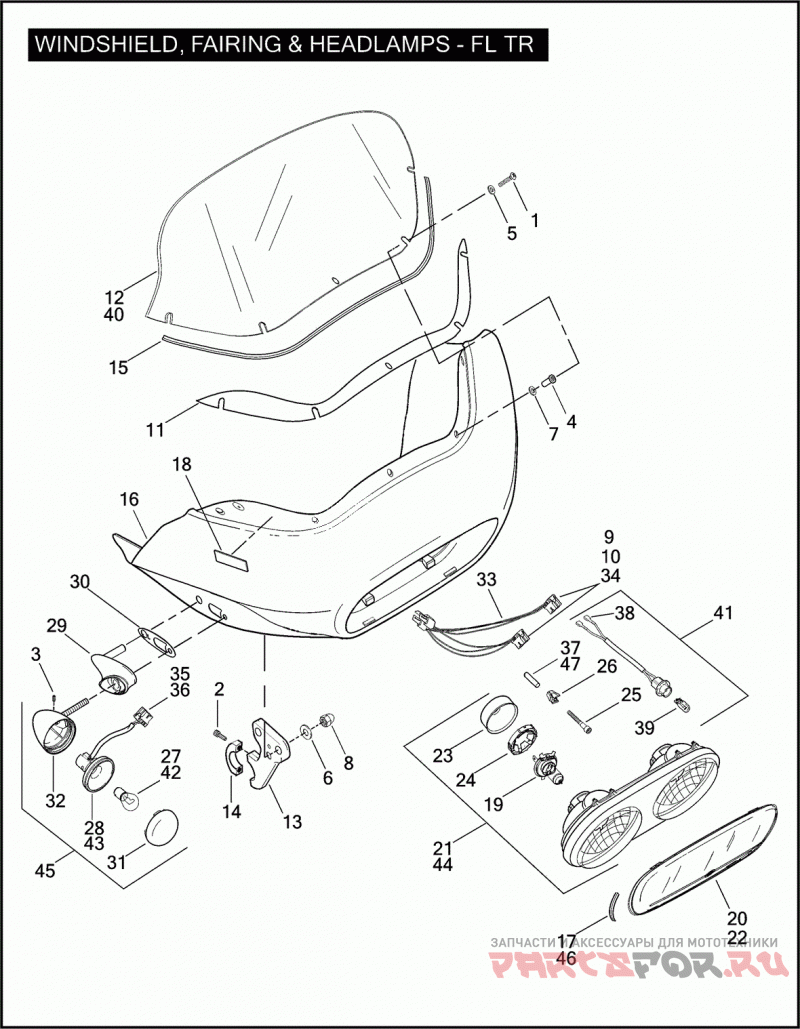

WINDSHIELD, FAIRING & HEADLAMPS - FLTR

Harley Davidson FLTR 1FS4 ROAD GLIDE (2008)

Harley Davidson
#oem кодцена
1
933
SCREW NO. 10-32 X 15/16 POZIDRIV TRUSS HD. (GRADE 2)
2
2647B
SCREW NO. 10-24 X 3/4 SOCKET HD., SELF-LOCKING
3
3256
SCREW 5/16-18 X 2-1/2
4
5207
WELL NUT
5
6054
WASHER 3/16 X 9/16 X 1/16 NYLON (BLACK)
6
6702
WASHER 5/16 X 11/16 X 1/16
7
7462A
WASHER 25/64 X 3/4 X 1/8 RUBBER
8
7549A
ACORN NUT 5/16-18 X 9/16 X 1/2
9
9847
CONNECTOR FEMALE SPADE
10
9848
CONNECTOR FEMALE SPADE
11
14629-04
DECAL WINDSHIELD
12
57958-04B
WINDSHIELD KIT W/ 58705-98D (DOMESTIC)
13
58454-04
MOUNT LOWER FAIRING
14
58487-04
CLAMP LOWER FAIRING MOUNT
15
58705-98D
TRIM WINDSHIELD
16
58733-98B
OUTER FAIRING (PRIME)
17
58711-98
Планка
18
67093-04
ISOLATOR STRIP
19
68329-03
BULB HALOGEN HB2/H-4
20
67759-98A
COVER HEADLAMPS, W/ EDGE TRIM
21
67775-01C
DUAL HEADLAMP ASSEMBLY
22
67959-01
Планка
23
67978-98
чехол
24
67979-98
RETAINER HEADLAMP BULB
25
67980-98A
ADJUSTMENT STUD
26
67981-98A
MOUNTING CLIP
27
68168-89A
BULB TURN SIGNAL
28
68904-00
SOCKET ASSEMBLY W/ MOUNT
29
68933-04
MOUNTING BRACKET RIGHT
29
69199-04
MOUNTING BRACKET LEFT
30
69283-04
Прокладка
31
68973-00
LENS TURN SIGNAL (AMBER)
32
69550-04
TURN SIGNAL HOUSING W/ 3256
33
70423-98
HARNESS DUAL HEADLAMP ADAPTER
34
72056-92
HOUSING TERMINAL, 3-WAY
35
73153-96BK
SOCKET HOUSING 3-WAY
36
73191-96
TERMINAL SOCKET, 16-20 GAUGE (DOMESTIC)
37
89582-04
CAP THREAD PROTECTOR
38
9897
TERMINAL WIRE (JAPAN)
39
53436-97
BULB POSITION LAMP, WEDGE (JAPAN)
40
58246-05B
WINDSHIELD KIT W/ 58705-98D (HDI)
41
68083-01
POSITION LAMP W/ 9897 &53436-97 (JAPAN)
42
68163-84
BULB TURN SIGNAL (2) (JAPAN)
44
68996-01B
HEADLAMP ASSMEBLY DUAL, LEFT, DIP, W/ 19, 23, 24, 25, 26, 33, 41, 46, & 47 (JAPAN)
45
69272-05
TURN SIGNAL ASSEMBLY W/ 31, 32, 36, 42, & 43 (JAPAN)
46
69291-05
TRIM RING (JAPAN)
47
89582-04
CAP THREAD PROTECTOR (JAPAN)
