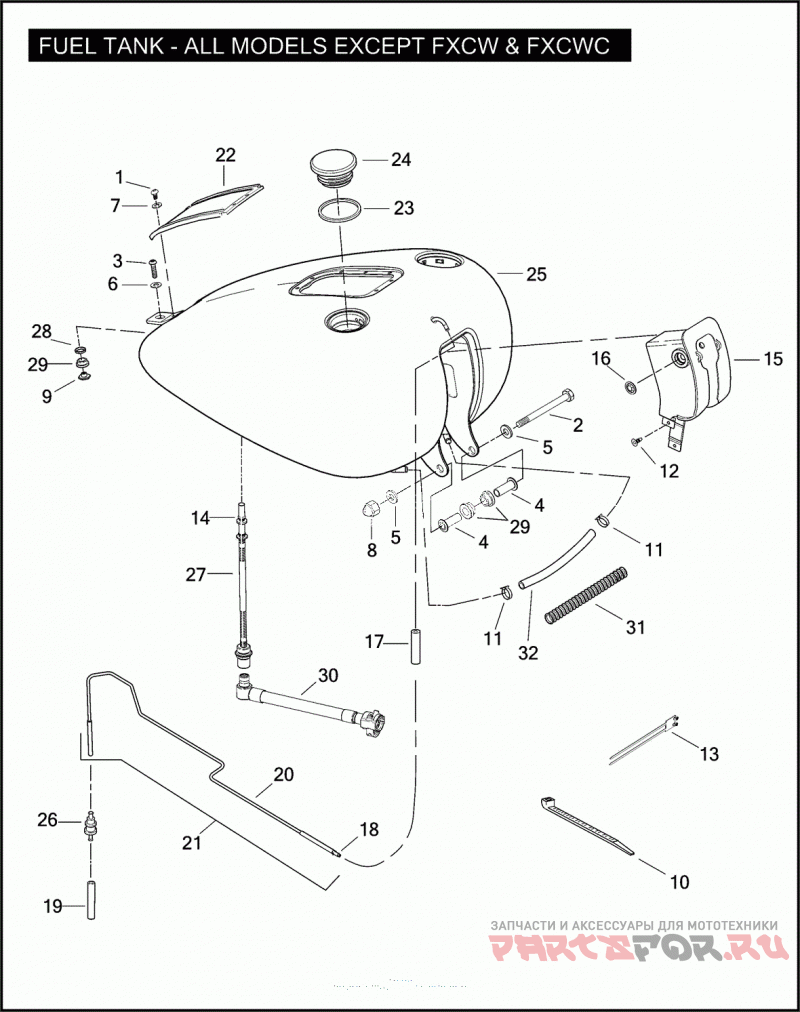

FUEL TANK - ALL MODELS EXCEPT FXCW & FXCWC

Harley Davidson FLSTSB 1JM5 CROSS BONES (2008)

Harley Davidson
#oem кодцена
1
3017
SCREW NO. 10-24 X 0.44 TORX PAN HD., SELF-TAPPING
2
4197
BOLT 3/8-16 X 3-3/4 HEX HD. (GRADE 5)
3
4763
SCREW 5/16-18 X 1-1/4 TORX BUTTON HD. (GRADE 5)
4
5818A
BUSHING FRONT TANK MOUNT
5
6545
WASHER FERROUS, HEAT-TREATED
6
6702
WASHER 5/16 X 11/16 X 1/16
7
6716
WASHER NO. 10 X 1/2 X 3/64
8
7862
ACORN NUT 3/8-16 (CHROME)
9
7965
TEE NUT
10
10006
CABLE STRAP RIGHT SIDE ONLY
11
10038A
CLAMP FUEL CROSSOVER HOSE
11
10102
CLIP (NOT ILLUSTRATED)
12
10226
FASTENER NYLON
13
10236
CABLE STRAP DOUBLE WIDTH
14
11387A
Уплотнительное кольцо
15
11529
RUBBER TRIM FUEL TANK
16
11533
Стопорное кольцо
17
27016-08
HOSE REDUCER
18
27251-08
CONNECTOR STRAIGHT
19
27328-00A
HOSE VALVE-TO-ATMOSPHERE
20
28828-00
TUBE TANK-TO-VALVE
21
28838-08
VENT LINE ASSEMBLY FUEL TANK TO VAPOR VALVE (NOT USED IN VEHICLES SOLD IN CALIFORNIA.)
22
71210-08
TRIM PANEL FUEL TANK
23
61109-85D
Прокладка
24
61272-92C
FILLER CAP (replaces 61273-92)
25
61625-08
FUEL TANK 5 GALLON (PRIME)
26
62150-85
VAPOR VALVE
27
62189-08B
CHECK VALVE OUT
28
62880-00
GROMMET FUEL TANK, UPPER REAR
29
62881-00
GROMMET FUEL TANK, LOWER REAR & FRONT
30
62900-01D
FUEL LINE FROM TANK TO INTAKE
30
75307-07
ADAPTER KIT FUEL LEVEL SENSOR (NOT ILLUSTRATED)
31
62555-95
INSULATOR 5/8 IN. I.D. (NYLON) (8 FT. LENGTH)
32
63521-95A
HOSE 5/16 IN. I.D. X 5/8 IN. O.D. (RUBBER) (25 FT. LENGTH)
