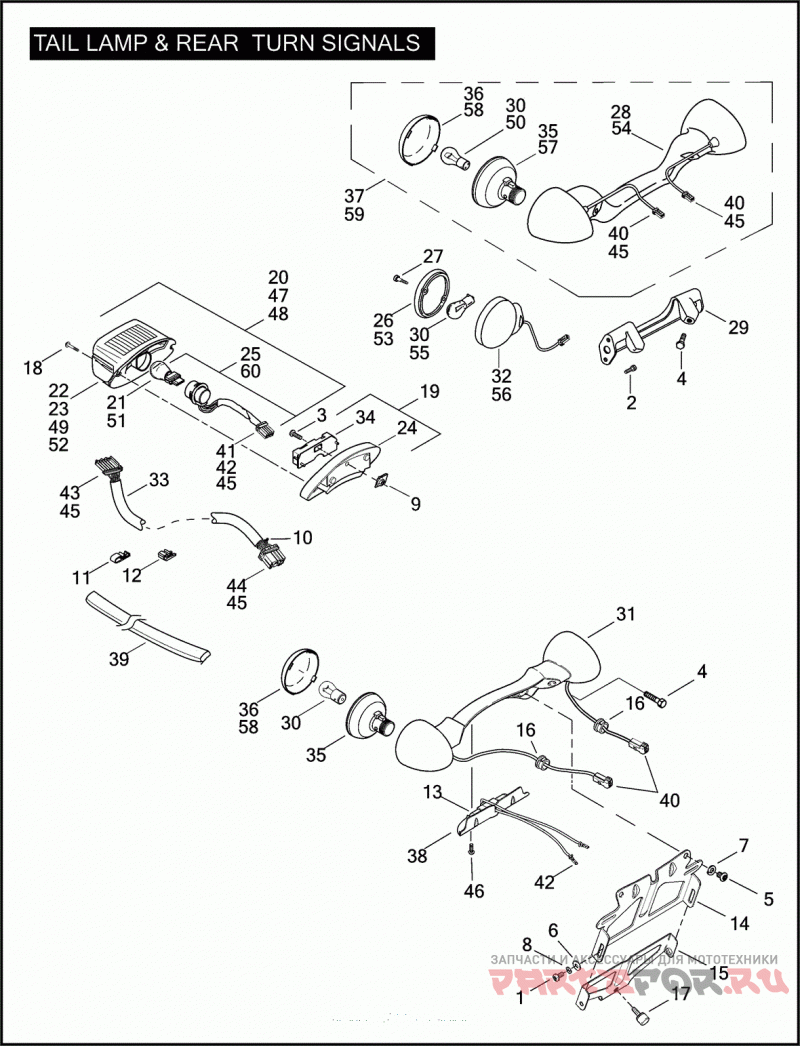

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FLHX 1KB4 STREET GLIDE (2008)

Harley Davidson
#oem кодцена
1
2660
SCREW NO. 10-24 X 3/8 PAN HD.
3
3022A
SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
4
3576
SCREW 5/16-18 X 1/2 HEX HD., W/WASHER.
5
3728
SCREW 1/4-20 X 1/2 HEX HD.
6
6716
WASHER NO. 10 X 1/2 X 3/64
7
7036
WASHER 1/4 X 31/64 X 1/16
8
7069
LOCKWASHER NO. 10
9
7964
J-NUT
10
10006
CABLE STRAP
11
10183
CLIP T-STUD
12
10184
CLIP T-STUD
13
52441-95
BULB BACKLITE
14
60089-05
BRACKET LICENSE PLATE, TOP
15
60090-05
BRACKET LICENSE PLATE, BOTTOM
16
67266-94
BUSHING NYLON
17
67845-05
BUMPER RUBBER
18
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
19
68066-99A
TAIL LAMP BASE ASSEMBLY W/ 68296-99A & 68830-99A
21
68167-04
BULB TAIL LAMP, WEDGE MOUNT
22
68245-03
LENS TAIL LAMP (RED), W/ 68026-99
24
68296-99A
TAIL LIGHT BASE (CHROME)
25
68370-03A
SOCKET ASSEMBLY TAIL LAMP W/ 68167-04
30
68572-64B
BULB REAR TURN SIGNAL
31
68629-05
LIGHTBAR TURN SIGNAL
33
68772-06
HARNESS REAR LAMPS, W/ 10006, 70522-06, 73156-96BK, 73158-96BK & 73191-96
34
68830-99A
CIRCUIT BOARD & COVER
35
68905-00
SOCKET ASSEMBLY REAR TURN SIGNAL (2) (KB DOMESTIC ONLY)
36
68973-00
LENS REAR TURN SIGNAL
38
69353-05
LAMP ASSEMBLY W/ 52441-95 & 73191-96
39
70522-06B
CONDUIT self-adhesive
40
73152-96BK
SOCKET HOUSING 2-PLACE
41
73154-96BK
SOCKET HOUSING 4-PLACE
42
73153-96BK
SOCKET HOUSING 3-PLACE
43
73156-96BK
SOCKET HOUSING 6-PLACE
44
73158-96BK
SOCKET HOUSING 8-PLACE
45
73191-96
TERMINAL SOCKET, 16-20 GAUGE
46
2482
SCREW, 6-32 X 5/16 socket button hd. (stainless)
47
68141-04
LAMP ASSEMBLY TAIL LAMP, W/ 69187-03A & 68372-03 (HDI)
50
68163-84
BULB TURN SIGNAL (2) (HDI)
51
68167-04
BULB TAIL LAMP, WEDGE MOUNT (HDI)
52
68372-03
LENS TAIL LAMP W/ 68026-99 (2) (HDI)
54
68508-04
BRACKET REAR TURN SIGNAL BAR (HDI)
58
68973-00
LENS TURN SIGNAL (2) (HDI)
59
68997-04
LAMP ASSEMBLY REAR TURN SIGNAL, W/ 68163-84, 68508-04, 68907-00, 68973-00, 73152-96BK, & 73191-96 (HDI)
60
69187-03A
BULB SOCKET ASSEMBLY TAIL LAMP, W/ 68167-04, 73154-96BK, & 73191-96 (HDI)
