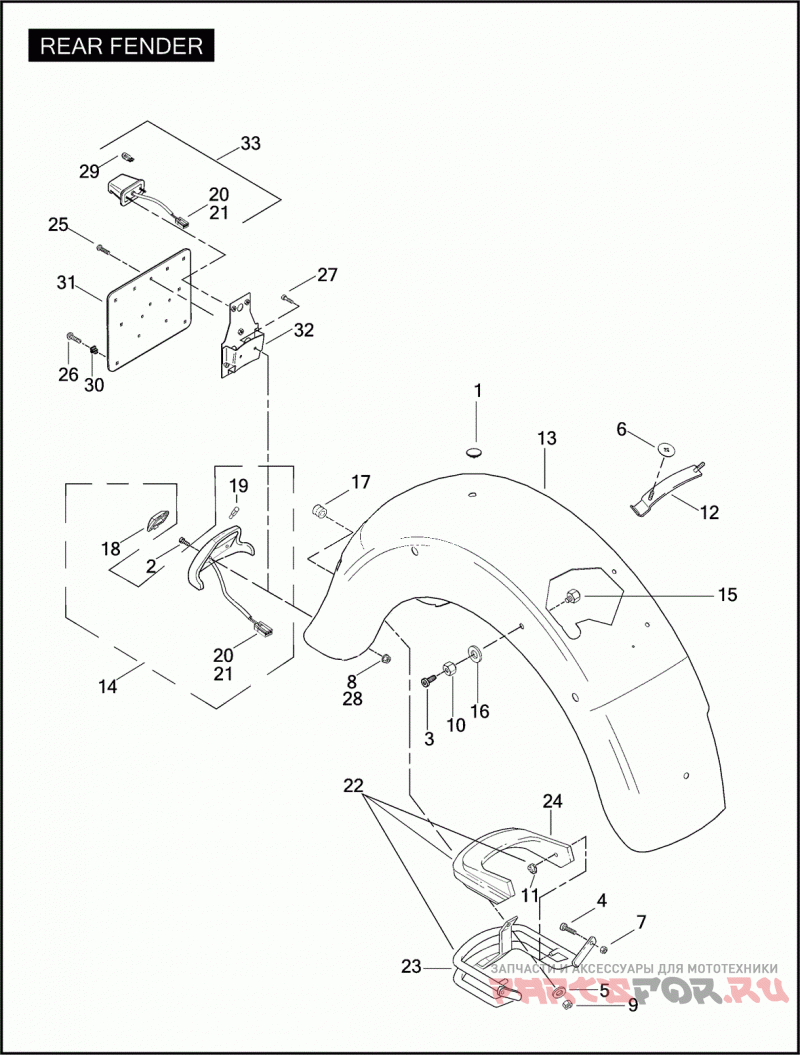

Задний бампер

Harley Davidson FLHTP 1FMM ELECTRA GLIDE STANDARD POLICE (2008)

Harley Davidson
#oem кодцена
1
761
Заглушка
2
2604
SCREW NO. 10-32 X 1/2 POZIDRIV PAN HD. (GRADE 2)
3
3676
SCREW 5/16-18 X 5/8 TORX PAN HD.
4
3684
SCREW 5/16-18 X 1 TORX PAN HD.
5
6703
WASHER 1/4 X 5/8 X 1/16
6
7434
WASHER 1/4 X 1-29/64 X 1/16 NYLON
7
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
8
7629
NUT NO. 10-32 X 3/8 KEPS
9
7683
LOCKNUT 1/4-28 X 5/16 X 7/16
10
7880
NUT 1/2-13 X 7/16 X 3/4 (GRADE 2)
11
8135B
SPEED NUT
12
59174-99
STUD PLATE
13
59579-06
FENDER REAR (PRIME)
14
59672-99
LAMP ASSEMBLY FENDER TIP, W/ 68046-79, 68193-95, 73153-96BK & 73191-96 (DOMESTIC)
15
59786-01
FENDER MOUNTING BOSS INNER
16
59788-01
FENDER MOUNTING WASHER
17
67266-94
GROMMET TURN SIGNAL
18
68046-79
LENS REAR FENDER LAMP
19
68193-95
BULB FENDER TIP LAMP
20
73153-96BK
SOCKET HOUSING 3-WAY
21
73191-96
TERMINAL SOCKET, 16-20 AWG
22
91013-79A
REAR BUMPER ASSEMBLY W/ 8135B, 91023-79A, & 91123-77
23
91023-79A
RAIL REAR BUMPER
24
91123-77
BUMPER CUSHION REAR
25
2420
SCREW 1/4-20 X 3/4 TRUSS HD. (GRADE 2)
26
2731W
SCREW NO. 10 X 3/8 PHILLIPS TRUSS HD., SELF-TAPPING
27
3574
SCREW 1/4-20 X 3/4 FLANGE
28
7499
NUT 1/4-20 LARGE FLANGE
29
53436-97
BULB WEDGE (HDI)
30
59292-94
NUT PLASTIC (HDI)
31
60026-97
PLATE LICENSE BACK (HDI)
32
60039-97
BRACKET LICENSE PLATE MOUNTING (HDI)
33
68180-99
LAMP ASSEMBLY LICENSE PLATE ILLUMINATION, W/ 7629, 53436-97, 73153-96BK & 73191-96 (HDI)
