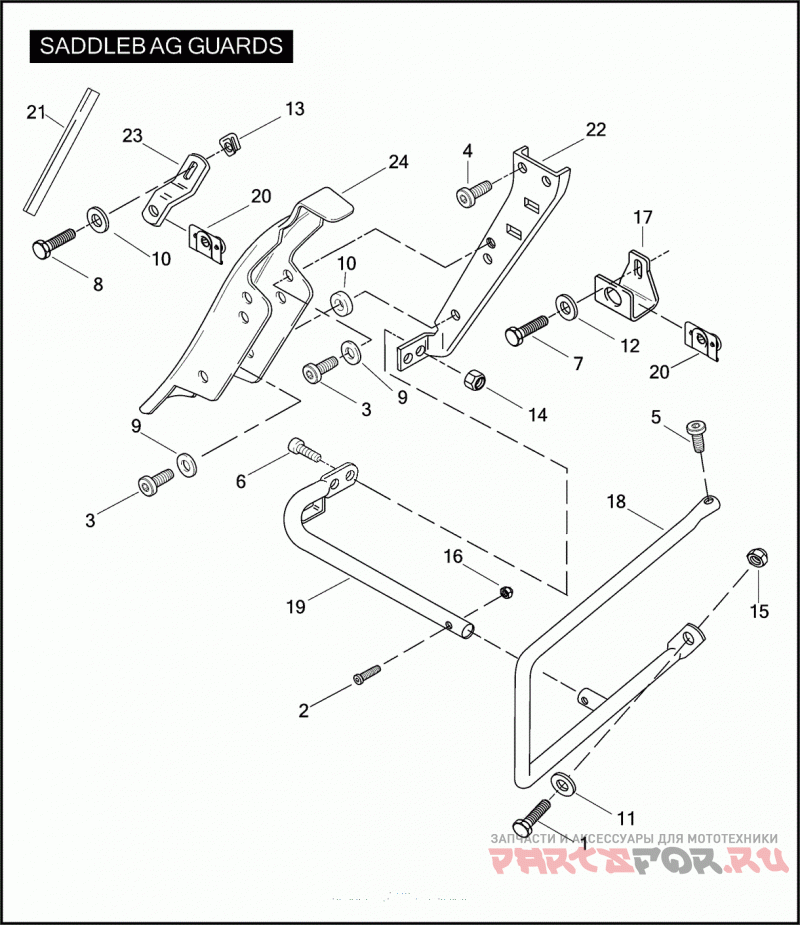

SADDLEBAG GUARDS

Harley Davidson FLHTCUSE3 1PR8 CVO ULTRA CLASSIC (2008)

Harley Davidson
#oem кодцена
1
2879W
BOLT 3/8-16 X 1 HEX HD. (GRADE 5)
2
3601
SCREW 1/4-20 X 1-1/4 KNURLED HD. (GRADE 8)
3
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
4
3676
SCREW 5/16-18 X 5/8 TORX PAN HD.
5
3678
SCREW 3/8-16 X 7/8 TORX PAN HD.
6
3684
SCREW 5/16-18 X 1 TORX PAN HD.
7
3787
BOLT 1/4-20 X 3/4 HEX HD. (GRADE 5)
8
3802W
BOLT 1/4-20 X 7/8 HEX HD. (GRADE 5)
9
6116
WASHER 5/16 X 16/16 X 1/8
10
6378
WASHER 21/64 X 7/8 X 11/64
11
6701
WASHER 3/8 X 13/16 X 1/16
12
6703
WASHER 1/4 X 5/8 X 1/16
13
7490
CLIP NUT
14
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
15
7601
LOCKNUT 3/8-16 FLANGE
16
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
17
47449-06
BRACKET FRONT
18
49176-97
GUARD RIGHT
18
49187-97
GUARD LEFT
19
49194-85
SUPPORT SADDLEBAG, LEFT
19
90781-93
SUPPORT SADDLEBAG, RIGHT
20
70909-95
RECEPTACLE
21
90594-85A
MOLDING RUBBER
22
90718-79C
SUPPORT BRACKET KIT LEFT
22
90720-79C
SUPPORT BRACKET KIT RIGHT
23
90801-06
BRACKET SADDLEBAG MOUNTING
24
91413-08CAS
FILLER STRIP SADDLEBAG TRIM (CANYON COPPER)
24
91413-08CRR
FILLER STRIP SADDLEBAG TRIM (CRYSTAL COPPER)
24
91413-08CTF
FILLER STRIP SADDLEBAG TRIM (WHITE FROST)
