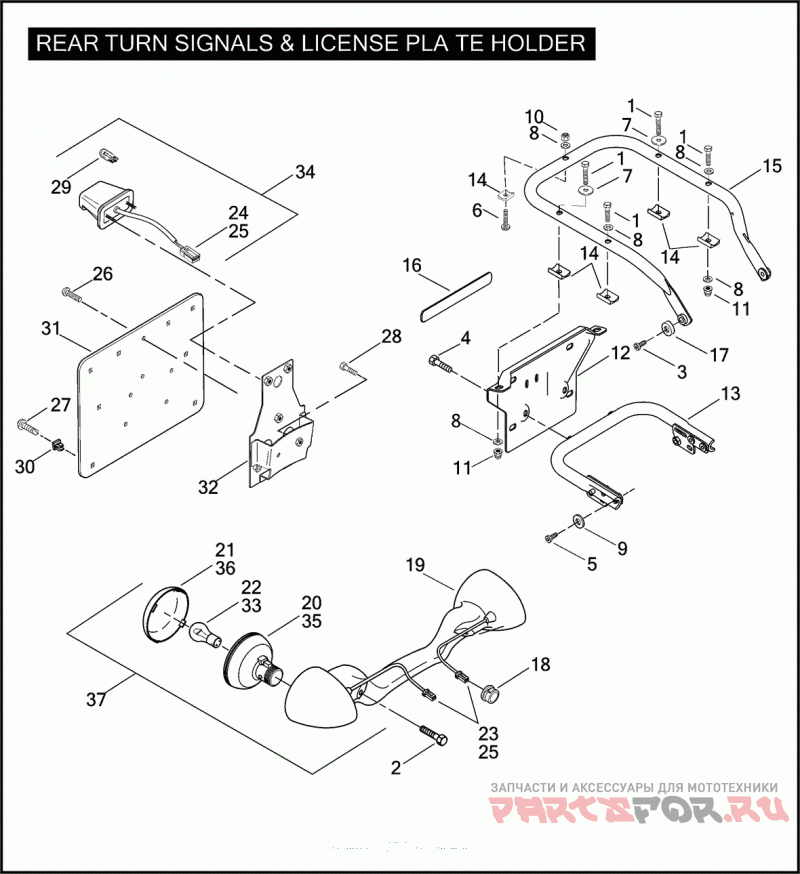

REAR TURN SIGNALS & LICENSE PLATE HOLDER

Harley Davidson FLHTCUSE3 1PR8 CVO ULTRA CLASSIC (2008)

Harley Davidson
#oem кодцена
1
2718
BOLT 1/4-20 X 1-5/8 HEX HD. (GRADE 5)
2
3576
SCREW 5/16-18 X 1/2 HEX HD., W/WASHER.
3
3684
SCREW 5/16-18 X 1 TORX PAN HD.
4
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
5
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
6
4033
SCREW 1/4-20 X 1-5/8 SOCKET BUTTON HD.
7
6036
WASHER 17/64 X 1 X 1/16
8
6703
WASHER 1/4 X 5/8 X 1/16
9
7127
LOCKWASHER 5/16 INTERNAL TOOTH
10
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
11
7887
LOCKNUT 1/4-20 NYLON
12
53375-97A
LICENSE PLATE HOLDER
13
53422-97
TUBE SUPPORT BOTTOM
14
53799-99
LUGGAGE RACK SPACER
15
53801-98
TUBE SUPPORT TOP
16
59988-72A
Отражатель
17
61135-57
Проставка
18
67266-94
Втулка
19
68508-04
BRACKET REAR TURN SIGNAL BAR
20
68905-00
SOCKET ASSEMBLY
21
69325-02
LENS TURN SIGNAL
22
69330-02
BULB TURN SIGNAL
23
73152-96BK
SOCKET HOUSING 2-WAY (BLACK)
24
73153-96BK
SOCKET HOUSING 3-WAY (BLACK)
25
73191-96
SOCKET TERMINAL
26
2420
SCREW 1/4-20 X 3/4 TRUSS HD. (GRADE 2)
27
2731W
SCREW NO. 10 X 3/8 PHILLIPS TRUSS HD., SELF-TAPPING
28
3574
SCREW 1/4-20 X 3/4 FLANGE
29
53436-97
BULB WEDGE (HDI)
30
59292-94
NUT PLASTIC (HDI)
31
60026-97
PLATE LICENSE BACK (HDI)
32
60039-97
BRACKET LICENSE PLATE MOUNTING (HDI)
33
68163-84
BULB TURN SIGNAL (HDI)
34
68180-99
LAMP ASSEMBLY LICENSE PLATE ILLUMINATION, W/ 7629, 53436-97, 73153-96BK, & 73191-96 (HDI)
36
68973-00
LENS REAR TURN SIGNAL (HDI)
37
68997-04
LAMP ASSEMBLY REAR TURN SIGNAL, W/ 68163-84, 68508-04, 68907-00, 68973-00, 73152-96BK, & 73191-96 (HDI)
