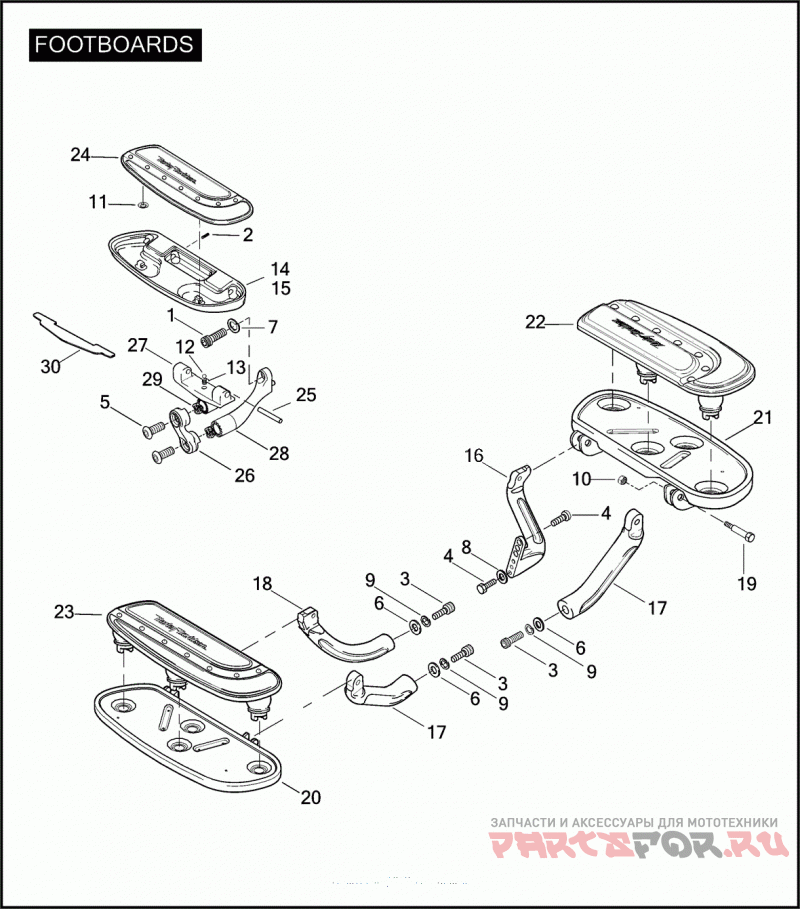

FOOTBOARDS

Harley Davidson FLHTCUSE3 1PR8 CVO ULTRA CLASSIC (2008)

Harley Davidson
#oem кодцена
1
861A
SCREW 3/8-16 X 1 KNURLED HD. (GRADE 8)
2
3341
SET SCREW NO. 10-24 X 1/2 HEX HEAD (STAINLESS)
3
3599
SCREW 1/2-13 X 1-1/8 KNURLED HD. (GRADE 8)
4
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
5
4631
Винт
6
6738
WASHER 17/32 X 7/8 X 7/64
7
7038
LOCKWASHER 3/8
8
7041
LOCKWASHER 5/16
9
7068
LOCKWASHER 1/2
10
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
11
8126A
PUSHNUT
12
8861
Шарик
13
51501-07
Пружина
14
50700-04
FOOTBOARD LEFT-HAND, PASSENGER
15
50701-04
FOOTBOARD RIGHT-HAND, PASSENGER
16
50806-07
BRACKET SUPPORT FOOTBOARD, REAR LEFT
17
47370-04
MOUNTING BRACKET FRONT FOOTBOARD
18
50571-04
BRACKET SUPPORT FOOTBOARD, REAR RIGHT
19
50635-82A
BOLT FOOTBOARD HINGE
20
50683-04
BOTTOM ASSEMBLY RIGHT, W/ HINGE
21
50688-04
BOTTOM ASSEMBLY LEFT, W/ HINGE
22
50812-07
INSERT ASSEMBLY LEFT, RIDER
23
50816-07
INSERT ASSEMBLY RIGHT, RIDER
24
50819-07
FOOTBOARD INSERT PASSENGER, LEFT, W/ 8126A
24
50823-07
FOOTBOARD INSERT PASSENGER, RIGHT W/ 8126A (NOT ILLUSTRATED)
25
50938-04
PIVOT PIN KIT W/ 4 PINS
26
50998-07
ARM ROTATING, RIGHT
26
51006-07
ARM ROTATING, LEFT
27
51007-07
SUPPORT FOOTBOARD
28
51008-07
ARM MAIN MOUNTING ASSEMBLY
29
51023-07
WAVE SPRING
30
44430-04
PAD RUBBER (HDI)
