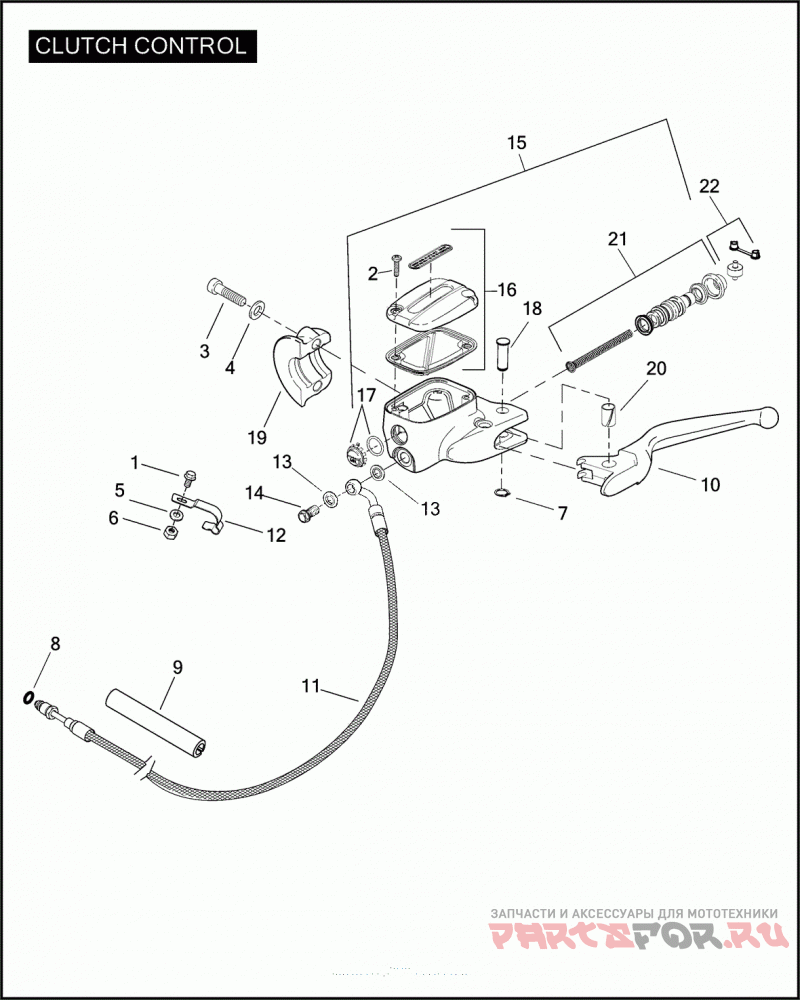

Привод управления сцеплением

Harley Davidson FLHTCUSE3 1PR8 CVO ULTRA CLASSIC (2008)

Harley Davidson
#oem кодцена
1
1001
SCREW 1/4-20 X 5/8 TORX BUTTON HD., SELF-TAPPING (GRADE 8)
2
3089
SCREW 8-32 X 5/8 PHILLIPS HD. (STAINLESS)
3
4293
SCREW 1/4-20 X 1-1/8 TORX BUTTON HD,
4
6099
WASHER 1/4 X 7/16 X 1/16
5
6703
WASHER 1/4 X 5/8 X 1/16
6
7688
NUT 1/4-20 X 7/32 X 7/16 (GRADE 2)
6
10039
STRAP CABLE (NOT ILLUSTRATED)
7
11143
RING RETAINING
8
11348
Уплотнительное кольцо
9
28919-04
TUBING SPLIT
10
38774-08
LEVER ASSEMBLY HAND, W/ 11143 & 45423-92
11
38881-08A
LINE ASSEMBLY, hydraulic-clutch, w/ 11348
12
38901-08
Фиксатор Кабеля
13
41751-06A
GASKET BANJO-BOLT
14
42010-06B
BOLT, BANJO (CHROME)
15
42101-06A
MSTER CYL ASY, LH/CHRM
16
36700094A
MASTER CYLINDER COVER KIT WITH 3089 AND GASKET (CHROME)
17
42145-06
SIGHT GLASS KIT
18
45032-82
PIN PIVOT
19
45282-99A
CLAMP MASTER CYLINDER (CHROME)
20
45423-92
BUSHING HAND LEVER
22
46246-01
BUSHING & ROLLER KIT
