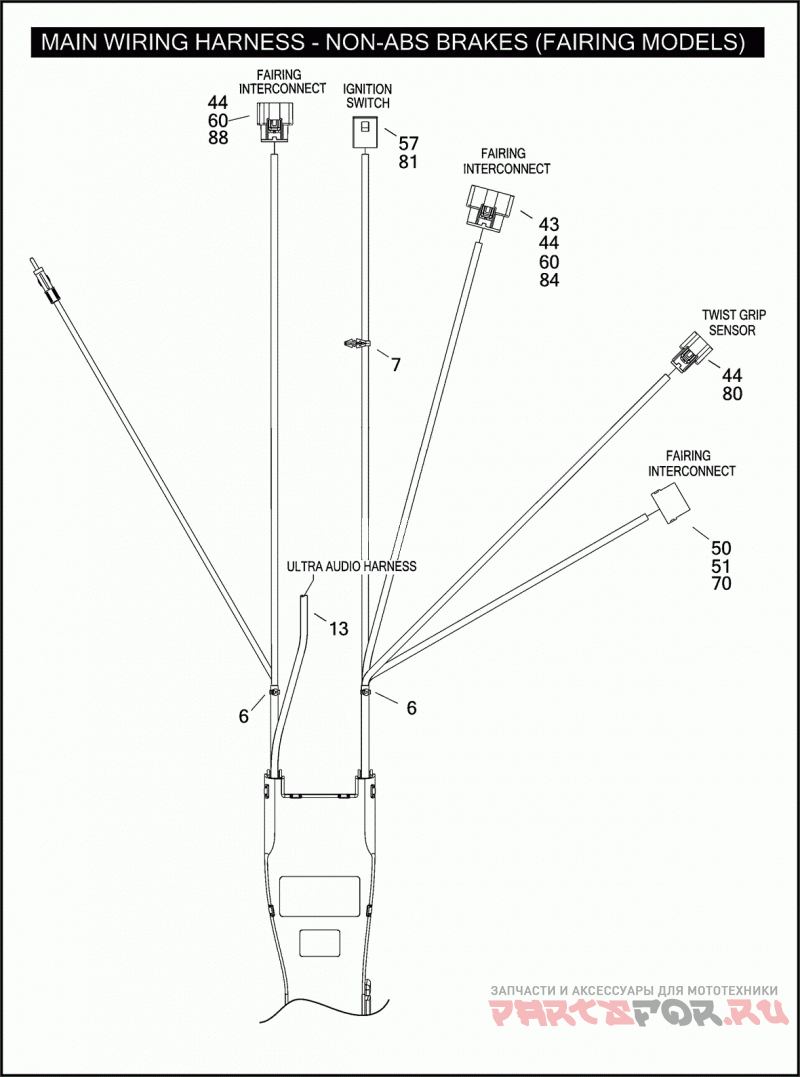

MAIN WIRING HARNESS - NON-ABS BRAKES (FAIRING MODELS)

Harley Davidson FLHTCU 1FC4 ULTRA CLASSIC (2008)

Harley Davidson
#oem кодцена
71000-08
MAIN WIRING HARNESS - NON-ABS
1
9819
TERMINAL 1/4 IN. RING, 12 AWG
2
9838
TERMINAL 1/4 IN. RING, 10-12 AWG
3
9842
TERMINAL 1/4 IN. RING, 10-12 AWG
4
9898
TERMINAL INSTULATED
5
10039
CABLE STRAP
6
10065
CABLE STRAP
7
10073
CABLE STRAP ROSEBUD MOUNT
8
10147
CLIP CONNECTOR
9
10177
CABLE STRAP TREE MOUNT
10
11779
FASTENER PUSH-IN (BLACK)
11
31504-91B
RELAY W/ DIODE
12
31586-07
RELAY
13
70160-08A
WIRING HARNESS, audio overlay
14
70348-08
CADDY FUSE BLOCK
15
70598-99
BOOT ENGINE TEMPERATURE SENSOR
16
70980-08
TRAY WIRE TROUGH
17
70981-08
COVER WIRE TROUGH
18
72006-05
SOCKET TERMINAL 16-20 AWG
19
72007-05
SOCKET HOUSING 2-WAY
20
72011-05
WIRE SEAL 16-20 AWG (YELLOW)
21
72012-07
SOCKET HOUSING 5-WAY
22
72014-07
SEAL PIN
23
72024-08
SOCKET TERMINAL 20-22 AWG
24
72046-79
HOUSING 5-PLACE, FEMALE
25
72063-06
HOUSING 2-WAY
