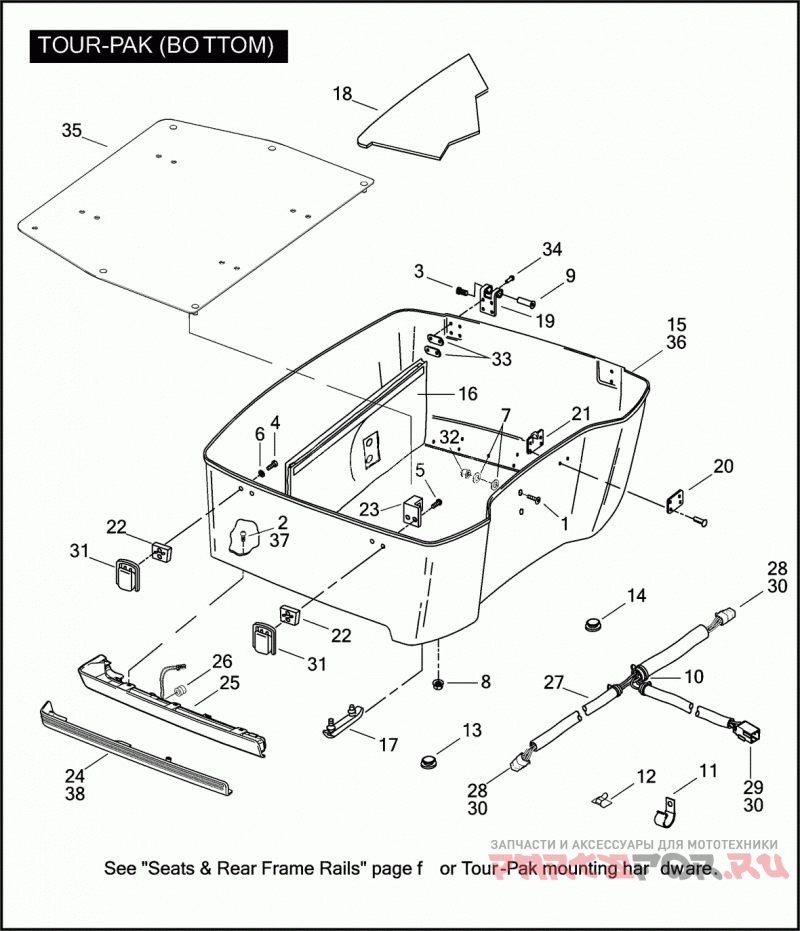

TOUR-PAK (BOTTOM)

Harley Davidson FLHTC 1FF4 ELECTRA GLIDE CLASSIC (2008)

Harley Davidson
#oem кодцена
90493-83
Заглушка
1
2724
SCREW NO. 10-16 X 1/2 (GRADE 2) (CHROME)
2
2968
SCREW NO. 8-32 X 3/4 TORX PAN HD.
3
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
4
3597
SCREW NO. 6-32 X 9/16 TORX PAN HD., THREAD-CUTTING
5
3598
SCREW NO. 6-32 X 3/4 TORX PAN HD., THREAD-CUTTING
6
6029
WASHER 5/32 X 3/8 X 1/32
7
6716
WASHER NO. 10 X 1/2 X 3/64
8
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
9
8500A
HINGE PIN KIT W/ 3595
10
10065
CABLE STRAP
11
10091
CLAMP (2-FC)
12
10102
CLIP ANTENNA CABLE (2, 4 - FC)
13
11486
Уплотнитель резиновый
14
11507
GROMMET SPLIT
15
53121-06
BOTTOM TOUR-PAK (PRIME)
16
53165-89A
POUCH TOUR-PAK
17
53429-93
Амортизатор ударов
18
53435-06
MAT LUGGAGE BOX
19
53447-87
HINGE LOWER
20
53478-80
BACKING PLATE BRACE
21
53563-82
BRACKET CABLE MOUNTING
22
53615-85A
Проставка
23
53616-85
CATCH LOWER
24
53734-06
TRIM LEFT-BOTTOM, TOUR-PAK (CHROME)
24
53735-06
TRIM RIGHT-BOTTOM, TOUR-PAK (CHROME)
27
70646-00
WIRING HARNESS LUGGAGE BOX, W/ 73102-96BK, 72103-96BK, & 73190-06
28
73102-96BK
PIN HOUSING 2-PLACE
29
73103-96BK
PIN HOUSING 3-PLACE
30
73190-96
TERMINAL PIN, 16-20 AWG
31
90649-07
BODY LATCH
32
90844-80
ACORN NUT NO. 10 X 3/8 FLANGE (GRADE 2)
33
90964-63
BACKING PLATE
34
90965-63
заклёпка
35
90755-09
PLATE TOUR-PAK REINFORCING
36
53145-06
BOTTOM TOUR-PAK (PRIME) (HDI, JAPAN)
37
2968
SCREW NO. 8-32 X 3/4 TORX PAN HD.
38
53734-06
TRIM LEFT-BOTTOM, TOUR-PAK (CHROME) (HDI)
38
53735-06
TRIM RIGHT-BOTTOM, TOUR-PAK (CHROME) (HDI)
