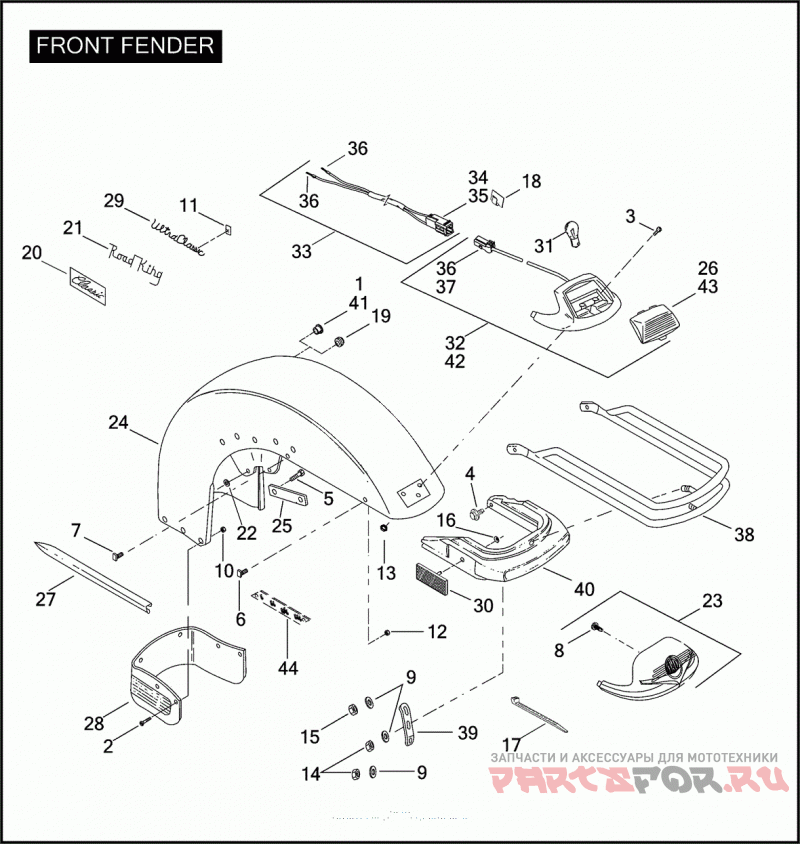

Переднее крыло

Harley Davidson FLHTC 1FF4 ELECTRA GLIDE CLASSIC (2008)

Harley Davidson
#oem кодцена
2
2531
SCREW NO. 4-40 X 5/16 POZIDRIV PAN HD. (GRADE 2)
3
2604
SCREW NO. 10-32 X 1/2 POZIDRIV PAN HD. (GRADE 2)
4
3602A
SCREW NO. 10-32 X 1/2 SELF-TAPPING
5
3462
BOLT 5/16-18 X 1-1/4 HEX HD. (GRADE 8)
6
3560WA
BOLT NO. 10-24 X 3/8
7
3561WC
BOLT NO. 10-24 X 3/8
9
6703
WASHER 1/4 X 5/8 X 1/16
10
7600
NUT NO. 4-40 KEPS
12
7624
LOCKNUT NO. 10-24 X 1/4 X 3/8
13
7629
NUT NO. 10-32 X 3/8 KEPS
14
7682
LOCKNUT 1/4-28 X 3/16 X 7/16
15
7683
LOCKNUT 1/4-28 X 5/16 X 7/16
16
8126A
PUSH NUT REFLECTOR
17
10065
CABLE STRAP
18
10102
Зажим
19
11437
GROMMET WIRING HARNESS
20
13967-99
DECAL CLASSIC (MEDIUM SILVER)
20
14331-90
DECAL CLASSIC (PALE GOLD METALLIC)
22
45279-00
Шайба
24
59093-00B
FENDER (PRIME)
25
59166-80
LOCKPLATE
26
59180-80
LENS FENDER LAMP (AMBER)
27
59211-74A
TRIM FRONT FENDER
28
59231-86
TRIM SKIRT FRONT FENDER, LOWER
30
59261-91
REFLECTOR (AMBER)
31
68193-95
BULB FENDER TIP LAMP
32
68706-00
FENDER LIGHT ASSEMBLY W/ 59180-80, 68193-95, 73152-96BK, & 73191-96
33
70196-00
WIRE HARNESS ASM. JUMPER, W/ 73102-96BK, 73190-96, & 73191-96
34
73102-96BK
PIN HOUSING 2-PLACE
35
73190-96
TERMINAL PIN, 16-20 AWG
36
73191-96
TERMINAL SOCKET, 16-20 GAUGE
37
73152-96BK
SOCKET HOUSING 2-PLACE
38
91085-83D
FRONT BUMPER ASSEMBLY
39
91090-77A
BRACKET BUMPER
40
91107-77C
BUMPER CUSHION front
41
755
HOLE PLUG (HDI)
42
59116-96
FENDER TIP ASSEMBLY W/ 59201-96 (HDI)
43
59201-96
LENS FENDER TIP (CHROME) (HDI)
