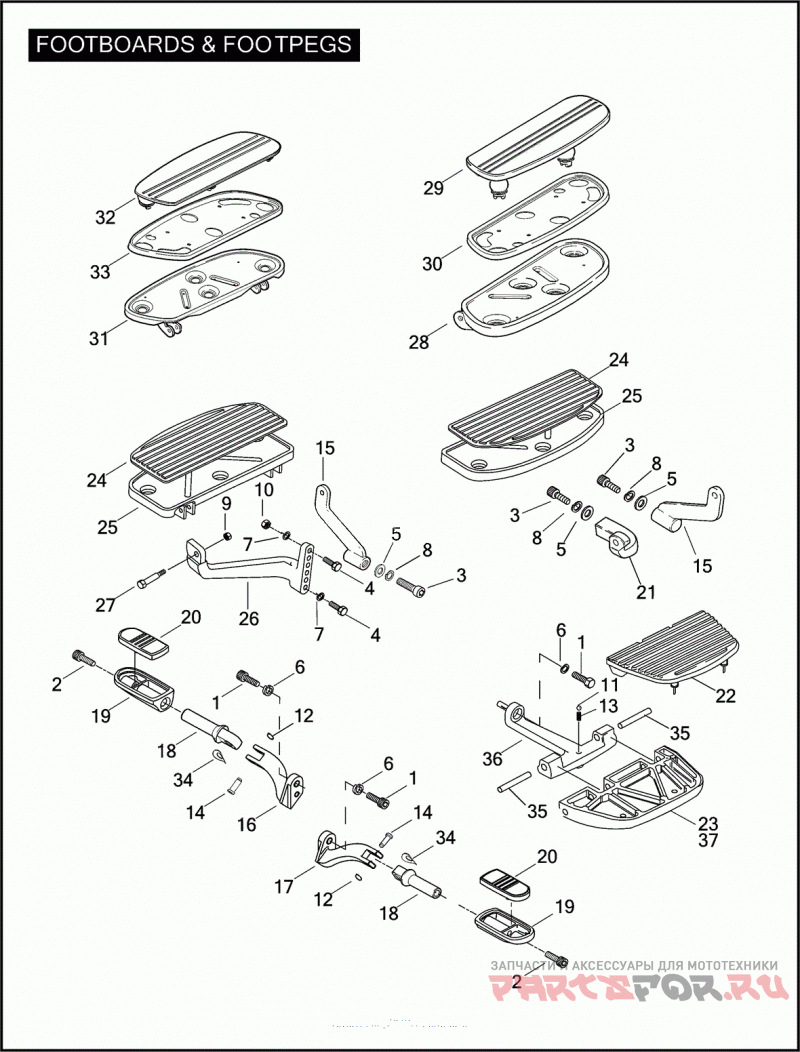

FOOTBOARDS & FOOTPEGS

Harley Davidson FLHT 1FV4 ELECTRA GLIDE STANDARD (2008)

Harley Davidson
#oem кодцена
1
861A
SCREW 3/8-16 X 1 KNURLED HD. (GRADE 8)
3
3599
SCREW 1/2-13 X 1-1/8 KNURLED HD. (GRADE 8)
4
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
5
6738
WASHER 17/32 X 7/8 X 7/64
6
7038
LOCKWASHER 3/8
7
7041
LOCKWASHER 5/16
8
7068
LOCKWASHER 1/2
9
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
10
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
11
8860
Шарик
13
33085-74
Пружина
15
47365-83C
BRACKET FRONT FOOTBOARD, W/ 3599
21
50518-83B
BRACKET KIT RIGHT REAR, W/ 3599
22
50606-06
PAD PASSENGER FOOTBOARD
23
50613-91A
FOOTREST PASSENGER
24
50614-06
PAD FOOTBOARD
25
50621-06
FOOTBOARD ASSEMBLY OPERATOR, W/ 50614-06
26
50622-83C
BRACKET MOUNTING KIT LEFT-REAR, W/ 4017
27
50635-82A
SHOULDER BOLT FOOTBOARD
35
50938-04
PIN PIVOT KIT
36
52719-93B
SUPPORT KIT FOOTBOARD
37
50899-99A
FOOTREST PASSENGER (HDI)
