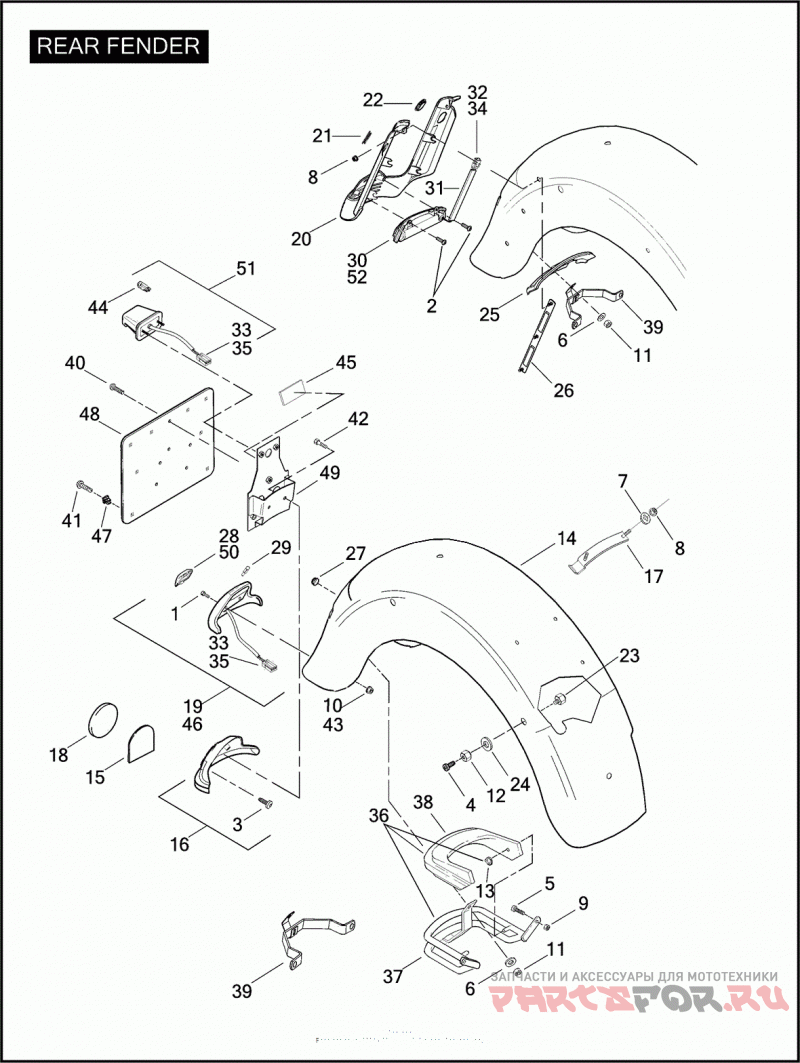

Задний бампер

Harley Davidson FLHT 1FV4 ELECTRA GLIDE STANDARD (2008)

Harley Davidson
#oem кодцена
1
2604
SCREW NO. 10-32 X 1/2 POZIDRIV PAN HD. (GRADE 2)
4
3676
SCREW 5/16-18 X 5/8 TORX PAN HD.
5
3684
SCREW 5/16-18 X 1 TORX PAN HD.
6
6703
WASHER 1/4 X 5/8 X 1/16
7
7434
WASHER 1/4 X 1-29/64 X 1/16 NYLON
8
7499
NUT 1/4-20 LARGE FLANGE
9
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
10
7629
NUT NO. 10-32 X 3/8 KEPS
11
7683
LOCKNUT 1/4-28 X 5/16 X 7/16
12
7880
NUT 1/2-13 X 7/16 X 3/4 (GRADE 2)
13
8135B
Гайка
14
59579-06
FENDER REAR (PRIME)
17
59174-99
STUD PLATE
19
59672-99
LAMP ASSEMBLY FENDER TIP, W/ 68046-79, 68193-95, 73153-96BK & 73191-96
23
59786-01
FENDER MOUNTING BOSS INNER
24
59788-01
FENDER MOUNTING WASHER
27
67266-94
BUSHING NYLON, TURN SIGNAL
28
68046-79
LENS REAR FENDER LAMP
29
68193-95
BULB WEDGE
29
68772-06
HARNESS REAR, LIGHTING, (NOT ILLUSTRATED) W/ 10006, 70522-06, 73156-96BK, 73158-96BK & 73191-96
33
73153-96BK
SOCKET HOUSING 3-PLACE (BLACK)
35
73191-96
TERMINAL SOCKET, 16-20 GAUGE
36
91013-79A
REAR BUMPER ASSEMBLY W/ 8135B, 91023-79A, & 91123-77
37
91023-79A
RAIL REAR BUMPER
38
91123-77
BUMPER CUSHION REAR
40
2420
SCREW 1/4-20 X 3/4 TRUSS HD. (GRADE 2)
41
2731W
SCREW NO. 10 X 3/8 PHILLIPS TRUSS HD., SELF-TAPPING
44
53436-97
BULB WEDGE (HDI)
45
59259-90
REFLECTOR RED (HDI)
46
59117-96
LAMP ASSEMBLY FENDER TIP, W/ 68081-96 (HDI)
47
59292-94
NUT PLASTIC (HDI)
49
60039-97
BRACKET LICENSE PLATE MOUNTING (HDI)
