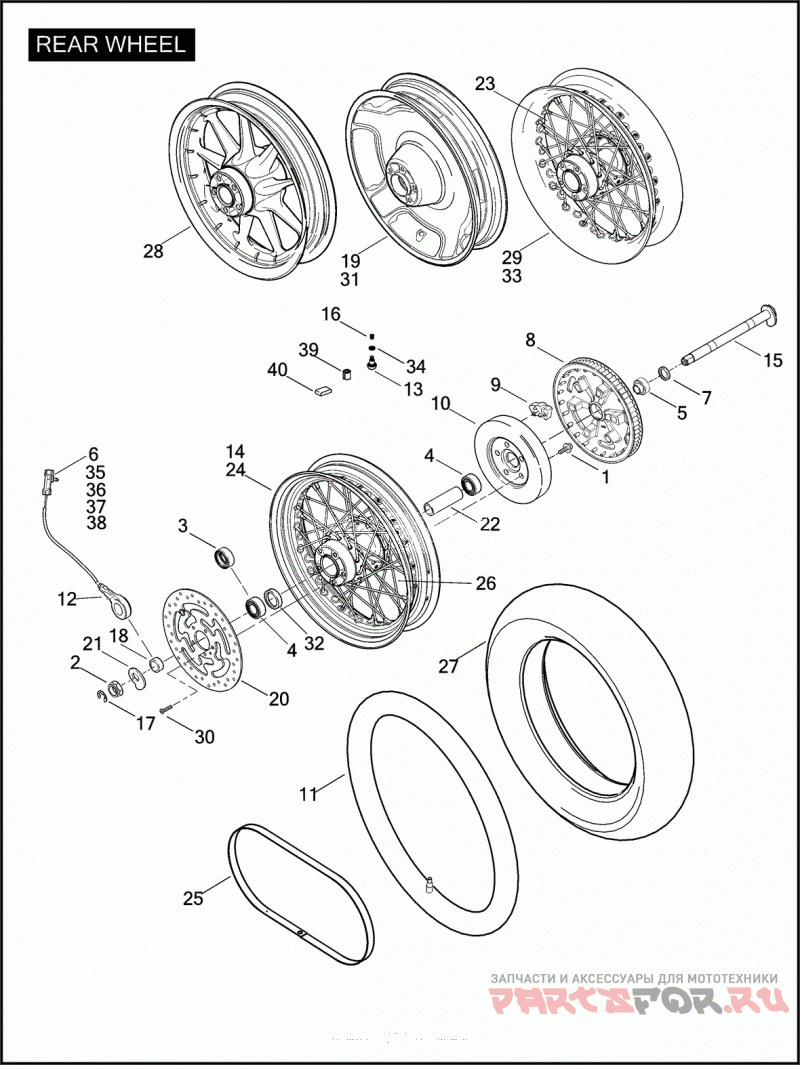

Заднее колесо

Harley Davidson FLHT 1FV4 ELECTRA GLIDE STANDARD (2008)

Harley Davidson
#oem кодцена
1
3814
SCREW 7/16-14 X 1-3/4 HEX HD., W/WASHER (GRADE 8)
2
8020
NUT M24 X 2.0 X 15
3
9252
BALL BEARING W/ ENCODER, ABS
4
9276A
Подшипник
5
9285
BALL BEARING 2 ROW, EXTENDED RACE
6
10147
CLIP CONNECTOR
7
11844
Проставка
8
40265-08
SPROCKET 66-TOOTH (BLACK)
9
40278-08
ISOLATOR RUBBER
10
40560-05
BOWL COMPENSATOR
12
40615-08
SENSOR WHEEL SPEED, ABS, W/ 10147, 72607-08, 72608-08, 72609-08 & 72610-08
13
40999-87
VALVE STEM CAST WHEELS
15
41056-08
Ось задняя
15
44103-08
KIT, SIDECAR PARKING BRAKE
16
41123-79
VALVE CAP
17
41139-02
Пружинный Зажим
18
41242-08
SPACER WHEEL BEARING, NON-ABS
20
41810-08B
BRAKE DISC
21
41819-02
AXLE CAM
22
41900-08
SLEEVE BEARING SPACER
23
43052-05A
SPOKE & NIPPLE KIT 16 INCH, SET OF 40
27
43200001
TIRE 16 IN
28
43402-00B
WHEEL ASSEMBLY 16 INCH CAST, W/O BEARINGS & SLEEVE (BLACK)
30
43567-92
SCREW 3/8-16 X 1 TORX PAN HD., W/LOCKPATCH
32
43904-08
SPACER REAR WHEEL BEARING
35
72607-08
HOUSING 2 WAY PIN
36
72608-08
TERMINAL PIN 16-20 AWG
37
72609-08
LOCK SECONDARY, 2-WAY (BLACK)
38
72610-08
SEAL 18-20 AWG (WHITE)
39
95578-41
WEIGHT 1/2 OZ. - 0.275 INCH I.D. ROUND, LACED WHEELS
39
95581-47
WEIGHT 3/4 OZ. - 0.275 INCH I.D. ROUND, LACED WHEELS
39
95582-47
WEIGHT 1 OZ. - 0.275 INCH I.D. ROUND, LACED WHEELS
40
95595-84B
WHEEL WEIGHT 5 grams (plain)
