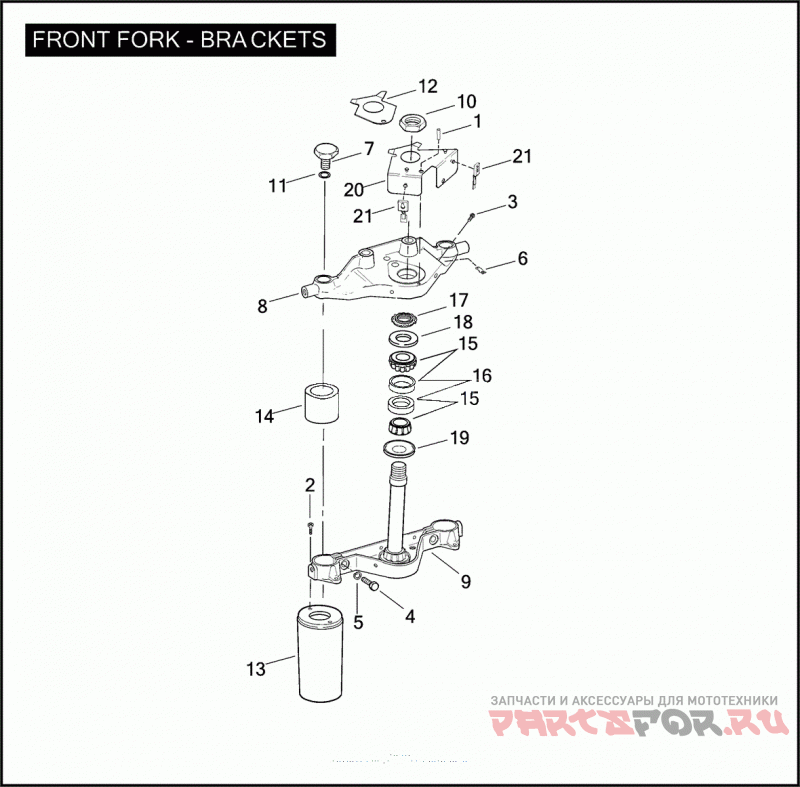

FRONT FORK - BRACKETS

Harley Davidson FLHPE 1FTM ROAD KING POLICE (2008)

FRONT FORK - BRACKETS

#

oem код

название

цена

1

Палец

Палец

2

SCREW 1/4-28 X 1/2 FLANGE HD., W/LOCKPATCH

SCREW 1/4-28 X 1/2 FLANGE HD., W/LOCKPATCH

3

SCREW NO. 10-24 X 3/16 HEX HD., W/WASHER

SCREW NO. 10-24 X 3/16 HEX HD., W/WASHER

4

BOLT 7/16-14 X 1-1/4 HEX HD. (GRADE 8)

BOLT 7/16-14 X 1-1/4 HEX HD. (GRADE 8)

5

LOCKWASHER 7/16

LOCKWASHER 7/16

7

BOLT FORK

BOLT FORK

8

BRACKET UPPER FORK STEM

BRACKET UPPER FORK STEM

9

BRACKET ASSEMBLY FORK STEM

BRACKET ASSEMBLY FORK STEM

10

NUT 1-24 X 1.5 X 0.47

NUT 1-24 X 1.5 X 0.47

11

OIL SEAL FORK BRACKET BOLT

OIL SEAL FORK BRACKET BOLT

13

COVER ASSEMBLY FORK TUBE

COVER ASSEMBLY FORK TUBE

14

FORK STOP

FORK STOP

15

ROLLER BEARING STEERING HEAD, W/ 48315-60

ROLLER BEARING STEERING HEAD, W/ 48315-60

16

CUP BEARING

CUP BEARING

17

SEAT UPPER HEAD CONE

SEAT UPPER HEAD CONE

18

DUST SHIELD BEARING, UPPER

DUST SHIELD BEARING, UPPER

19

DIRT GUARD BEARING, STEERING HEAD

DIRT GUARD BEARING, STEERING HEAD

20

BRACKET MOUNTING

BRACKET MOUNTING

21

ANCHOR T-STUD CONNECTOR

ANCHOR T-STUD CONNECTOR
