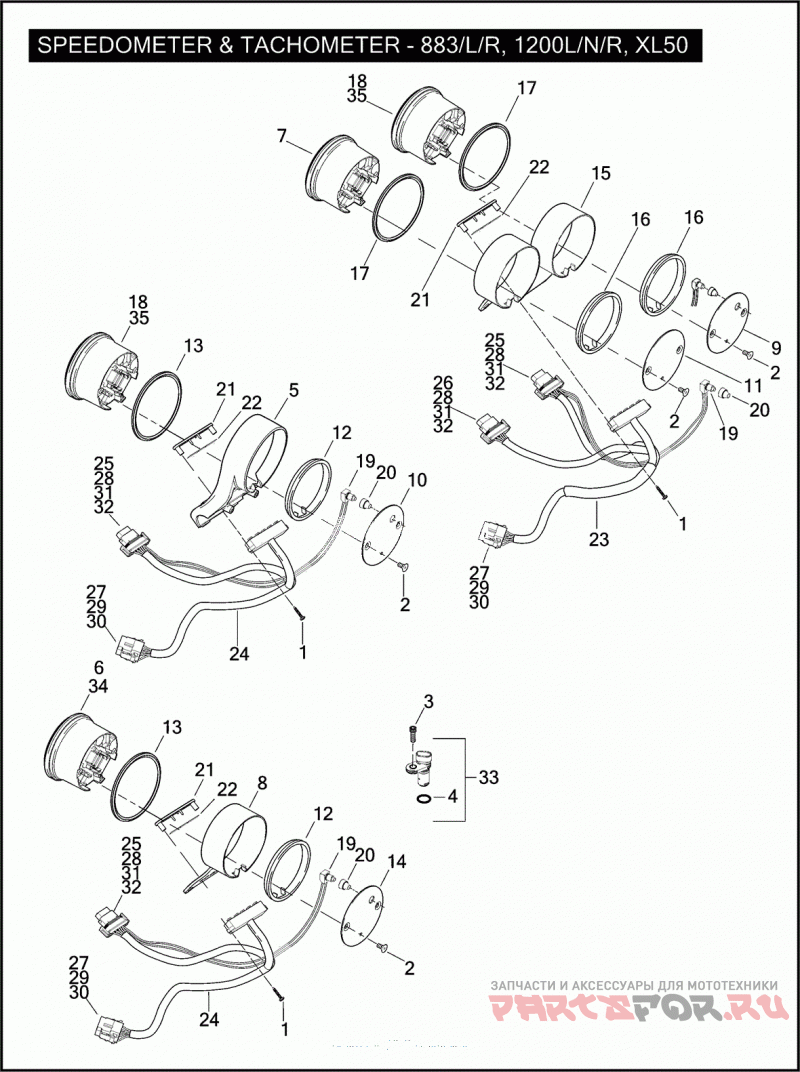

SPEEDOMETER & TACHOMETER - 883/L/R, 1200L/N/R, XL50

Harley Davidson XL50 1CY3 50th ANV SPORTSTER (2007)

Harley Davidson
#oem кодцена
1
2325
SCREW NO. 6 X 3/4 CROSS RECESS PAN HD., SELF-TAPPING
2
2361
SCREW NO. 8-32 X 3/8 SOCKET COUNTERSINK HD., W/LOCKPATCH
3
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
4
11289A
Уплотнительное кольцо
7
67049-04B
TACHOMETER
9
67085-95
COVER SPEEDOMETER BACK (CHROME RIM)
11
67103-95
COVER TACHOMETER BACK (CHROME RIM)
15
67338-97
BRACKET SPEEDOMETER & TACHOMETER
16
67344-97
CUSHION REAR
17
67345-97
CUSHION FRONT
18
67436-04A
SPEEDOMETER MPH (DOMESTIC, CALIFORNIA)
19
67854-98
SWITCH, reset
20
67880-94
BOOT RESET SWITCH
23
68811-07
HARNESS WARNING LAMP ASSEMBLY, W/ LED INDICATOR
25
72130-04
HOUSING SOCKET 12-WAY (BLACK)
26
72131-04
HOUSING SOCKET 12-WAY (GRAY)
27
72169-07
TERMINAL PIN 16-20 AWG
28
72189-04
SEAL PIN (4-CA/CM, 11-CL)
29
72488-07BK
HOUSING 12-WAY (BLACK)
30
72549-07
TERMINAL PIN 22 AWG
31
74196-04
TERMINAL SOCKET, 20 AWG. (8-CA/CM, 13-CL)
32
74197-04
LOCK SECONDARY, 12-WAY SOCKET (2-CL)
33
74402-05B
SENSOR SPEEDOMETER
35
67415-04A
SPEEDOMETER MPH/KPH (ENGLAND)
35
67416-04A
SPEEDOMETER KPH (CANADA/HDI/AUSTRALIA/JAPAN)
