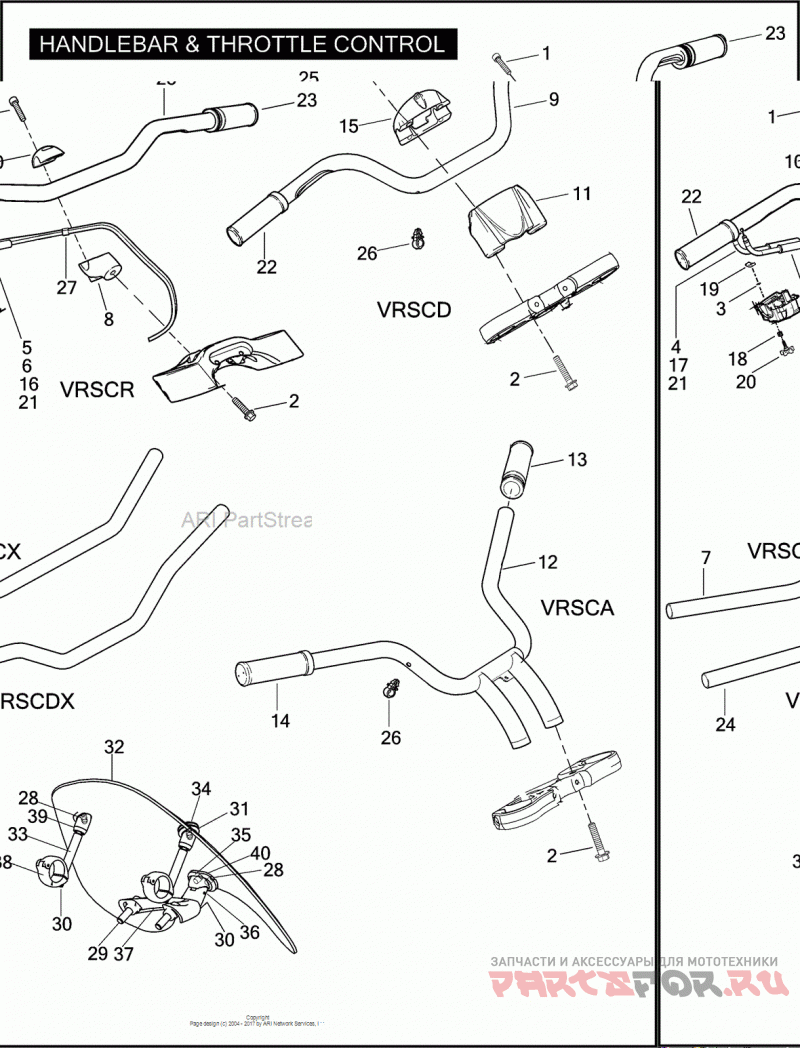

HANDLEBAR & THROTTLE CONTROL

Harley Davidson VRSCX 1HJG VRSCX SCREAMIN' EAGLE V-ROD (2007)

Harley Davidson
#oem кодцена
1
3385M
SCREW M8 X 1.25 X 35 SOCKET HD.
2
3726M
SCREW M10 X 1.5 X 50 HEX FLANGE HD.
3
11155
Стопорное кольцо
4
11271
RETAINING RING IDLE CONTROL
5
11272
RETAINING RING THROTTLE CONTROL
6
38653-01
BOOT THROTTLE CABLE
7
55898-07
Руль
11
55989-04
RISER HANDLEBAR (SILVER)
13
56206-96
GRIP LEFT
14
56220-94A
GRIP & SLEEVE THROTTLE - RIGHT
15
55990-04
CLAMP HANDLEBAR (SILVER)
16
56984-07
THROTTLE CONTROL ASSEMBLY W/ 11272, & 38653-01
17
56985-07
IDLE CONTROL ASSEMBLY W/ 11271 & 38653-01
18
56394-74
SPRING ADJUSTING SCREW
19
56396-74A
FRICTION SPRING THROTTLE
20
56402-83A
Регулировочный Винт
21
56508-76
FERRULE CONTROL WIRE
27
70504-81
CLIP THROTTLE CABLES
28
4234M
SCREW M5 X .8 X 12 HEX SOCKET HD. CAP
29
4235M
SCREW M8 X 1.25 X 30 HEX SOCKET HD. CAP
30
4252M
SCREW M6 X 1 X 20 HEX SOCKET HD. CAP W/LOCK PATCH
31
11557
Уплотнитель резиновый
32
57350-07
Ветровое стекло
33
57351-07
POST UPPER MOUNT
34
57782-01
TOP MOUNT UPPER MOUNT
35
57783-01
GROMMET LOWER MOUNT
36
57784-01
PIVOT MOUNT LOWER
37
57786-01
WINDSHIELD MOUNTING LOWER
38
57788-01
CLAMP HANDLEBAR
39
57794-01
MOUNT SNAP UPPER
40
57795-01
CLAMP MOUNTING LOWER
