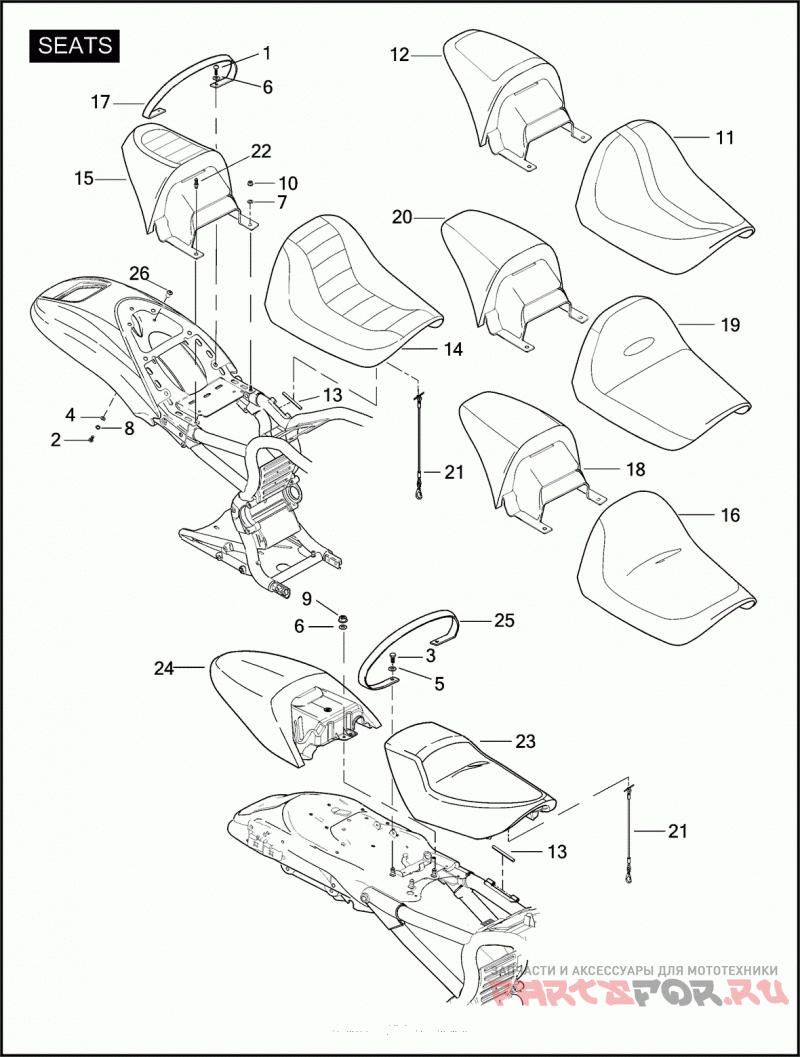

SEATS
Harley Davidson VRSCAW 1HFZ VRSCAW V-ROD (2007)
| # | oem код | название | цена |
|---|---|---|---|
1 | 3108M SCREW M8 X 1.25 X 20 HEX HD. | SCREW M8 X 1.25 X 20 HEX HD. | |
2 | 3540 SCREW 5/16-18 X 5/8 SOCKET BUTTON HD. | SCREW 5/16-18 X 5/8 SOCKET BUTTON HD. | |
4 | 6702 WASHER 5/16 X 11/16 X 1/16 | WASHER 5/16 X 11/16 X 1/16 | |
6 | 6838M WASHER M8 REGULAR | WASHER M8 REGULAR | |
7 | 6859M WASHER M6 SPECIAL | WASHER M6 SPECIAL | |
8 | 7041 LOCKWASHER 5/16 | LOCKWASHER 5/16 | |
10 | 7495 NUT M6 FLANGE | NUT M6 FLANGE | |
13 | 52041-82 Гильца | Гильца | |
16 | 52383-07 SEAT RIDER | SEAT RIDER | |
17 | 52386-07B Ремень | Ремень | |
18 | 52387-07 SEAT PASSENGER | SEAT PASSENGER | |
21 | 52402-01 LANYARD SEAT | LANYARD SEAT | |
22 | 52410-07 SEAT POST | SEAT POST | |
26 | 51952-07 NUT GRABSTRAP | NUT GRABSTRAP |
