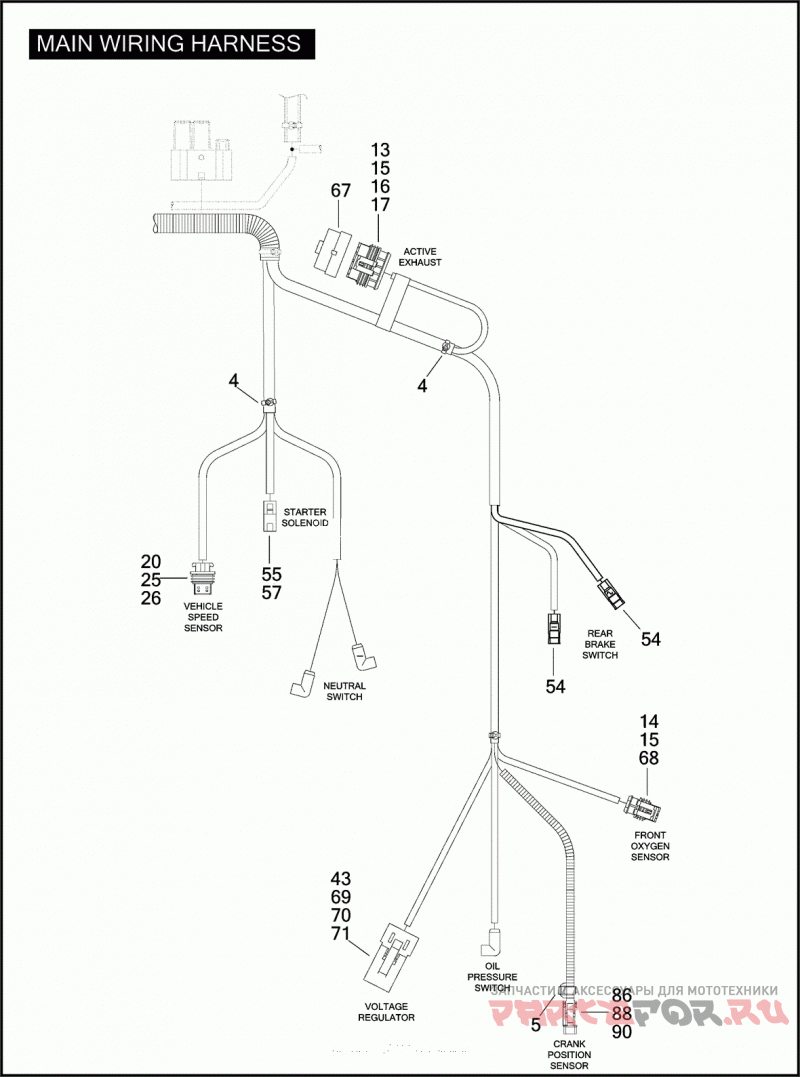

MAIN WIRING HARNESS (CONTINUED)

Harley Davidson FXSTSSE 1PT9 CVO SOFTAIL SPRINGER (2007)

Harley Davidson
#oem кодцена
70330-07
MAIN WIRING HARNESS (CONTINUED)
49
72249-94
SHRINK TUBE
50
72254-94
TERMINAL 1/4 RING
51
72260-04
HOUSING 1-WAY (GRAY)
52
72272-07
TERMINAL SOCKET, #14-16 AWG
53
72289-04
TERMINAL FEMALE
54
72290-94
TERMINAL FEMALE
55
72291-94
TERMINAL FEMALE SPADE - #14-16 AWG
56
72292-94
TERMINAL FEMALE, 12 GAUGE
57
72295-94
HOUSING STARTER
58
72327-03A
CONNECTOR 3-way
59
72330-95
FUSE 15 AMP
59
72369-00
BRACKET FUSE BLOCK MOUNTING (NOT ILLUSTRATED)
60
72414-07BK
HOUSING 6-WAY, SOCKET
61
72428-00
Терминал
62
72430-00
FUSE BLOCK TYPE 0
63
72432-00
FUSE BLOCK TYPE 2
64
72434-00
Терминал
65
72469-07GY
HOUSING 8-WAY, SOCKET (GREY)
66
72533-06
DUST CAP 2-PIN CONNECTOR
66
72548-07
COVER FUSEBLOCK (NOT ILLUSTRATED)
67
72553-07
DUST CAP 5-PIN CONNECTOR
68
72611-07
TERMINAL SOCKET, #16-20 AWG
69
72612-06BK
HOUSING 2-WAY SOCKET
70
72652-06
SECONDARY LOCK 2-WAY SOCKET
71
72694-06
TERMINAL SOCKET, #10 AWG
72
72914-01BK
SOCKET HOUSING 4-WAY (BLACK)
73
72990-01
SOCKET TERMINAL #14-16 WIRE
74
73103-96BK
PIN HOUSING 3-WAY
75
73104-96BK
PIN HOUSING 4-WAY (BLACK)
76
73106-96BK
PIN HOUSING 6-WAY (BLACK)
77
73108-96BK
PIN HOUSING 8-WAY (BLACK)
78
73190-96
TERMINAL PIN 20-16 GAUGE
79
73196-96
ANCHOR T-STUD
80
73199-96
ANCHOR PIN HOUSING
81
73301-04
PIN HOUSING 2-WAY
82
73303-04
SECONDARY LOCK 2-WAY
83
73304-04
TERMINAL #10 AWG
84
73305-04
SEAL #10 AWG (BLUE)
85
74108-98BK
PIN HOUSING 8-WAY (BLACK)
86
74112-98BK
HOUSING SOCKET 2-WAY (BLACK)
87
74148-98
SECONDARY LOCK PIN - 8-WAY
88
74152-98
SECONDARY LOCK SOCKET - 2-WAY
89
74190-98
TERMINAL PIN
90
74191-98
TERMINAL SOCKET
91
74195-98
SEAL PIN PLUG
92
74196-04
TERMINAL SOCKET
93
74197-04
SECONDARY LOCK
