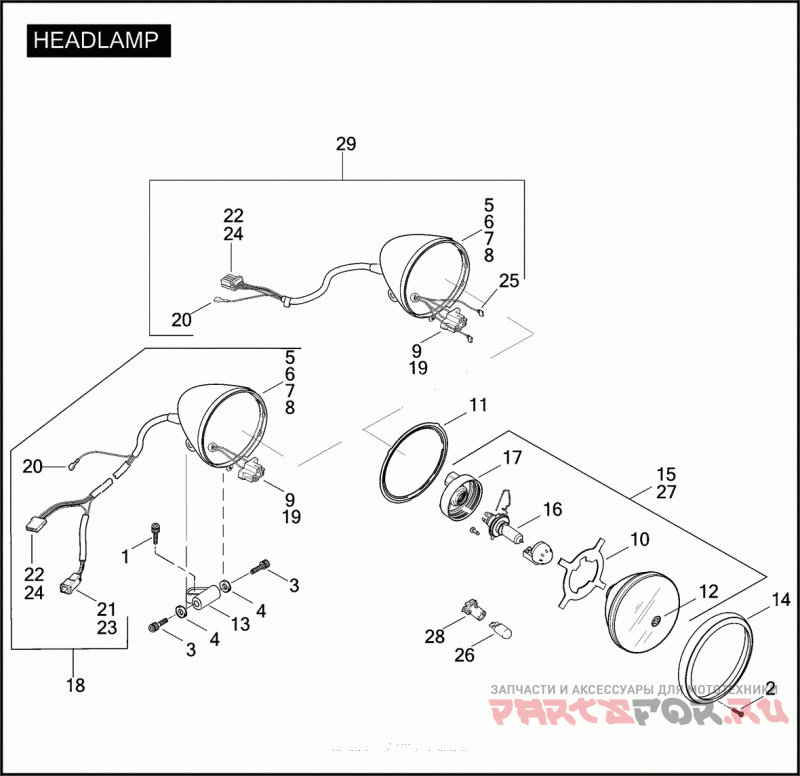

Фара

Harley Davidson FXSTSSE 1PT9 CVO SOFTAIL SPRINGER (2007)

Harley Davidson
#oem кодцена
1
3214
Деталь SCREW 3/8-16 X 1-1/4 SOCKET HD., THREAD-CUTTING
2
3615
Деталь SCREW NO. 8-32 X 1, PAN HD., THREAD-CUTTING
3
4190
Деталь SCREW 3/8-16 X 3/4 TORX BUTTON HD.
4
6379W
Деталь WASHER 3/8 X 5/8 X 3/64
5
7073
Деталь LOCKWASHER 1/4 EXTERNAL TOOTH
6
7230
Деталь LOCKWASHER 1/4 EXTERNAL TOOTH
7
7689W
Деталь JAMNUT 1/4-20 X 5/32 X 7/16 (GRADE 2)
8
8625
заклёпка
9
9847
Деталь WIRE TERMINAL FEMALE SPADE, RIGHT HAND
9
9848
Деталь WIRE TERMINAL FEMALE SPADE, LEFT HAND
10
67601-94A
Деталь GASKET HEADLAMP, THIS GASKET IS SOLD SEPARATELY AND IS NOT PART OF ITEMS 15 & 27
11
67603-94A
Деталь ADAPTER RING
12
67667-05
Деталь MEDALLION LENS
13
67892-93
Деталь MOUNTING BLOCK
14
67894-93A
Деталь TRIM RING (CHROME)
15
68297-05A
Деталь LAMP ASSEMBLY WITH 15, 21, 22
16
68329-03
Деталь BULB HB2/H4
17
68380-05
чехол
18
69769-05A
Деталь SHELL ASSEMBLY HEADLAMP, W/ HOUSING & WIRING, 5-3/4 INCH
19
72056-92
Деталь INSULATOR SPADE TERMINAL, 3-WAY
20
72249-94
Деталь SHRINK TUBE
21
73101-96BK
Деталь PIN HOUSING 2-PLACE
22
73154-96BK
Деталь SOCKET HOUSING 4-PLACE
23
73190-96
Деталь PIN TERMINAL #16-20 GAUGE
24
73191-96
Деталь CONTACT SOCKET #16-20 GAUGE
25
9898
Деталь TERMINAL FEMALE FLAG (HDI)
26
53438-92
Деталь BULB POSITION LAMP (HDI)
27
68335-05A
Деталь LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (LEFT) (AUSTRALIA, ENGLAND, JAPAN)
27
68341-05A
Деталь LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (RIGHT) (HDI, ASIA-PACIFIC)
29
69717-05A
Деталь SHELL ASSEMBLY HEADLAMP, W/ HOUSING & WIRING, 5-3/4 INCH
