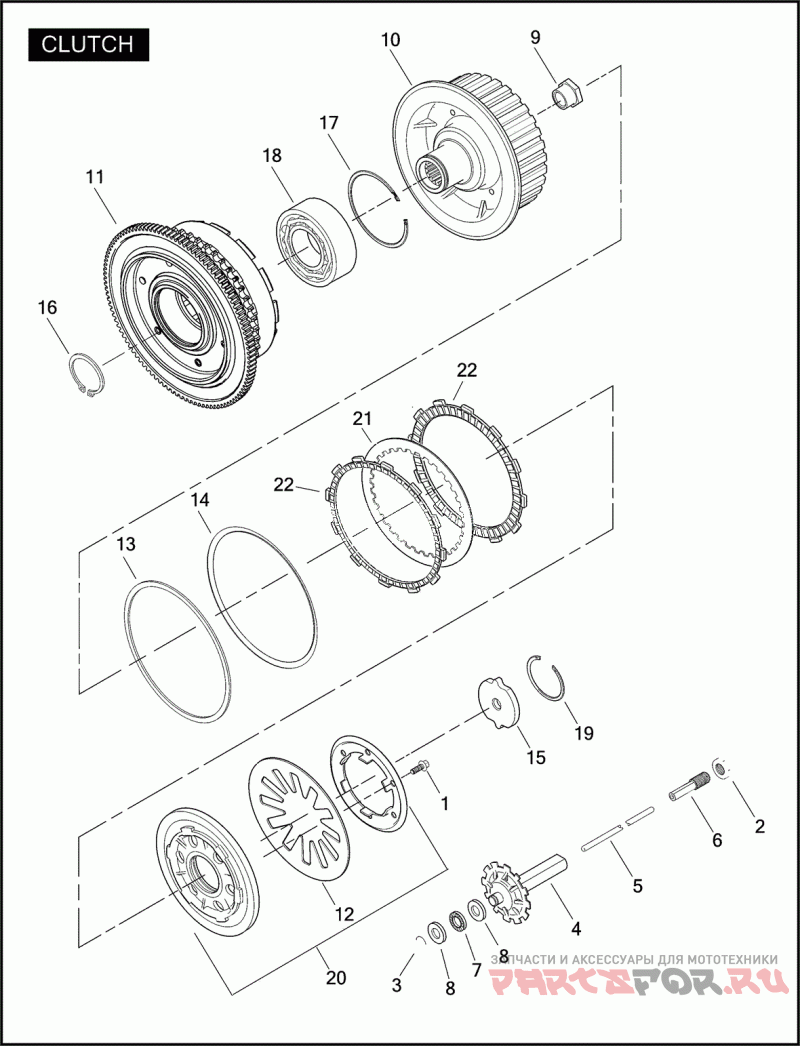

Сцепление

Harley Davidson FXSTD 1JB5 SOFTAIL DEUCE (2007)

Harley Davidson
#oem кодцена
1
2980
Деталь SCREW M6 X 1 X 16MM HEX FLANGE HD.
2
7848W
Деталь JAMNUT 7/16-20 X 1/4 X 11/16 (GRADE 2)
3
11096
Стопорное кольцо
4
37069-90A
Деталь PUSHROD END
5
37092-06
Деталь PUSH ROD CLUTCH RELEASE (THROUGH MAINSHAFT)
6
37090-98A
Деталь SCREW ADJUSTER
7
37312-75
Деталь BEARING PUSH ROD
8
37313-80
Деталь THRUST RACE BEARING
9
37496-90A
Деталь NUT MAINSHAFT
10
37554-06A
Деталь CLUTCH HUB W/ HUB, THRUST WASHER, SPRING WASHER, & RETAINING RING
11
37813-06A
Деталь CLUTCH ASSEMBLY W/ 1, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21 & 22
12
37882-06A
Деталь SPRING clutch (blue)
13
37883-98
Деталь SEAT DAMPER SPRING
14
37884-98
Деталь DAMPER SPRING
15
37903-90
Деталь RELEASE PLATE
16
37904-90
Деталь RETAINING RING INTERNAL
17
37905-00
Деталь RETAINING RING INTERNAL
18
37906-90
Деталь BEARING BALL - DOUBLE ROW
19
37909-90
Деталь RETAINING RING INTERNAL
20
37912-98A
Деталь PRESSURE PLATE KIT CLUTCH
21
37913-98
Деталь PLATE CLUTCH
22
37932-98
Деталь FRICTION PLATE KIT INCLUDES ALL NINE FRICTION PLATES
