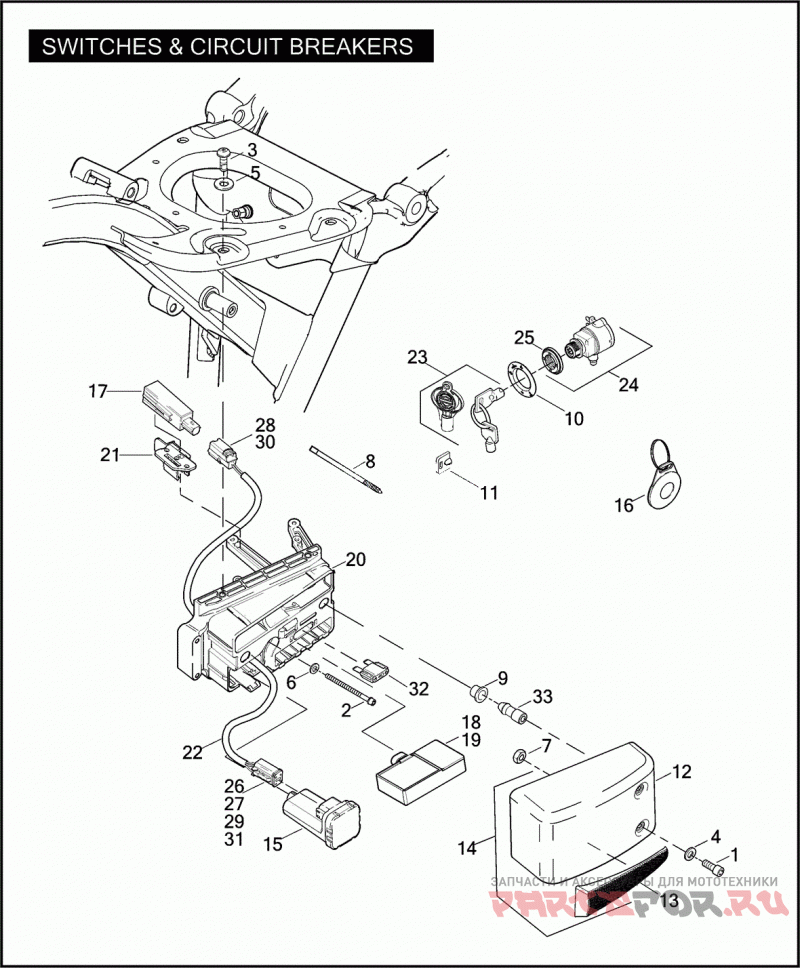

SWITCHES & CIRCUIT BREAKERS

Harley Davidson FXDSE 1PS8 CVO DYNA (2007)

Harley Davidson
#oem кодцена
1
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
2
4274
SCREW 1/4-20 X 2-3/4 SOCKET HD.
3
4613
SCREW 5/16-18 X 7/8 TORX BUTTON HD.
4
6099
WASHER 1/4 X 7/16 X 1/16
5
6702
WASHER 5/16 X 11/16 X 1/16
6
6703
WASHER 1/4 X 5/8 X 1/16
7
7792
NUT 1/4-20 X 1/4 (GRADE 2)
8
10065
CABLE STRAP KEYS
9
11491A
Уплотнитель резиновый
10
14117-06B
DECAL IGNITION
11
61081-92
COVER KEY
12
66456-07
COVER ELECTRICAL PANEL (PRIME)
13
66457-07
TRIM ELECTRICAL PANEL COVER
14
66458-07CJF
COVER ELECTRICAL PANEL, W/ 66457-07 (SILVER)
14
66458-07CJJ
COVER ELECTRICAL PANEL, W/ 66457-07 (RED)
14
66458-07CJL
COVER ELECTRICAL PANEL, W/ 66457-07 (BLUE)
15
68925-07
MODULE SECURITY SYSTEM
16
68926-07
REMOTE CONTROL FOB
17
68956-07
MODULE ASSEMBLY
18
68958-07C
SIREN ALARM (Australia, England, HDI, Japan & Asia-Pacific)
19
69018-00
BATTERY REPLACEMENT KIT SIREN
20
70367-04B
ELECTRICAL CADDY
21
70401-07
ADAPTER SECURITY ANTENNA
22
70619-07
HARNESS HANDS-FREE, W/ 72134-94GY, 72154-94, 72191-94, 72195-94, 72720-07, & 72721-07
23
71031-04
KEY KIT CVO DECORATIVE
24
71473-07A
IGN SW&FORK LOCK (REQ KEYCODE)
25
71555-06
NUT IGNITION SWITCH FACE
26
72114-94BK
PLUG, 4-way socket
27
72154-94
SECONDARY LOCK 4-WAY SOCKET (GRAY)
28
72191-94
TERMINAL SOCKET, #16-18 AWG
29
72195-94
SEAL PIN
30
72720-07
HOUSING 2-WAY SOCKET
31
72721-07
TERMINAL SOCKET, #18-20 AWG
32
72314-01
FUSE MAXI, 40 AMP
33
76132-00
PIN COVER MOUNT
