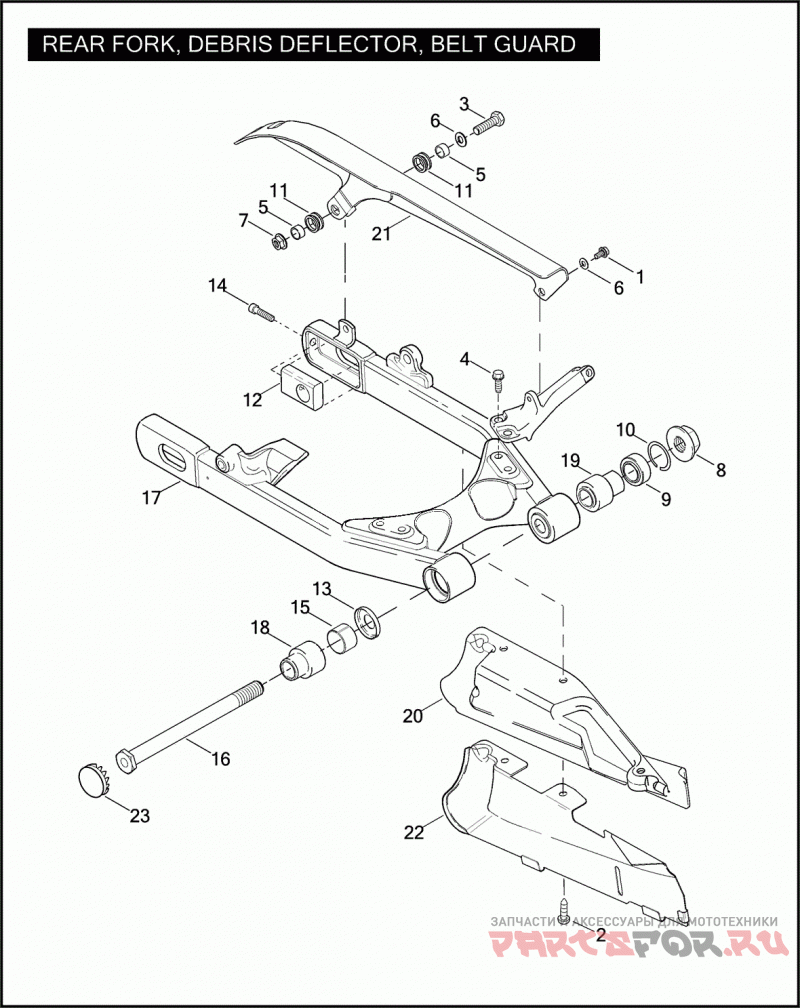

REAR FORK, DEBRIS DEFLECTOR, BELT GUARD

Harley Davidson FXDSE 1PS8 CVO DYNA (2007)

Harley Davidson
#oem кодцена
1
3340
SCREW 5/16-18 X 1/2 HEX HD. (GRADE 8)
2
3579A
SCREW 1/4-28 X 1/4 SEMS HEX HD., SELF-TAPPING (GRADE 2)
3
4654
SCREW BELT GUARD
4
4059
SCREW 3/8-16 X 1 TORX HD., W/LOCKPATCH, SELF-TAPPING (GRADE 8)
5
5928
Проставка
6
6702
WASHER 5/16 X 11/16 X 1/16
7
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
8
8050
NUT FLANGE
9
9208
BEARING PIVOT
10
10992
RETAINING RING INTERNAL
11
11578
GROMMET BELT GUARD
12
41571-06A
BLOCK AXLE ADJUSTER
13
41585-90B
DUST SHIELD
14
45991-06
SCREW 3/8-16 X 0.163 (GRADE 8)
15
47624-90B
Втулка
16
47641-06
SCREW 3/4-10 X 9-1/4 HEX HD. (GRADE 8)
17
48656-07CJF
SWINGARM ASSEMBLY W/ 9208, 10992, 41585-90B, 47624-90A, & 47844-06, SILVER
17
48656-07CJJ
SWINGARM ASSEMBLY W/ 9208, 10992, 41585-90B, 47624-90A, & 47844-06, RED
17
47820-06
REAR FORK ASSEMBLY W/ 10992, 9208, 41585-90B, 47624-90A, & 47844-06
18
47841-06
SPACER - RIGHT HAND
19
47844-06
SPACER - LEFT HAND
20
60356-07A
DEBRIS DEFLECTOR
21
60711-07
BELT GUARD KIT W/ KIT HARDWARE (CHROME)
23
68222-06
PLUG HOLE
