FUEL PUMP, SENDER, TOP PLATE для мотоциклов Harley Davidson FXDSE 1PS8 CVO DYNA (2007) (2007)

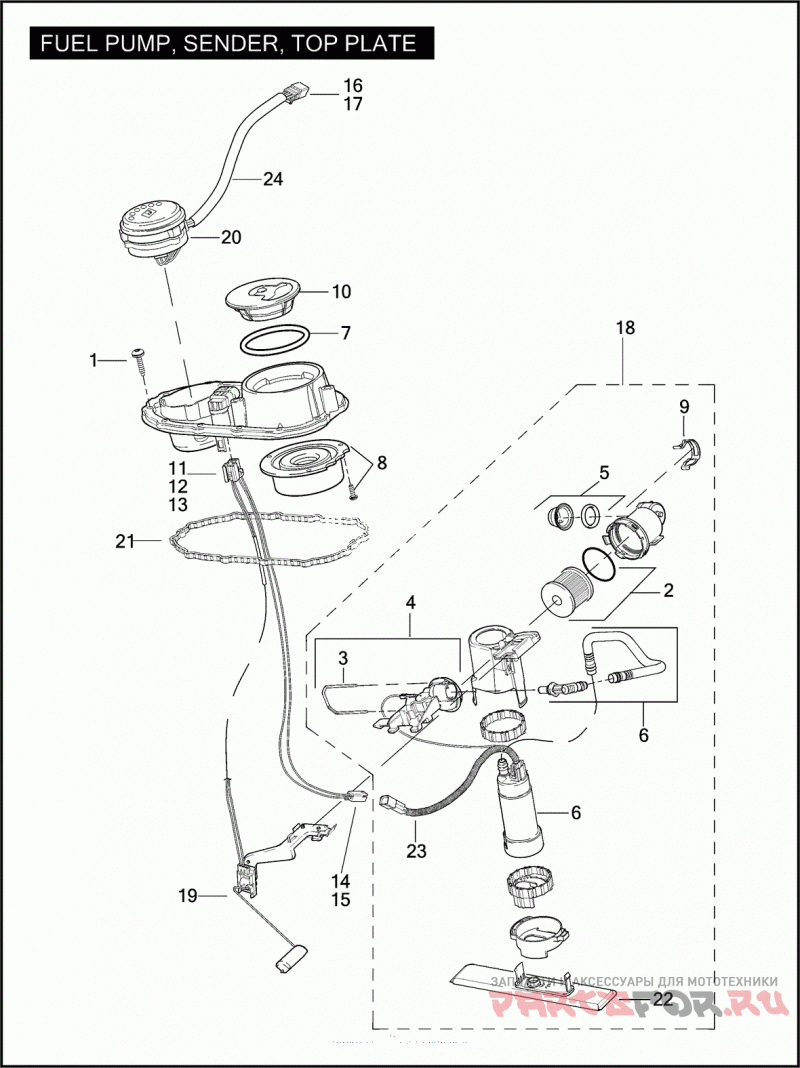

FUEL PUMP, SENDER, TOP PLATE

Harley Davidson FXDSE 1PS8 CVO DYNA (2007)

oem код

название

цена

1331

SCREW NO. 8-32 X 3/4 BUTTON HD.

11387A

O-RING (NOT ILLUSTRATED)

61011-04A

FUEL FILTER KIT W/ O-RING

61012-04A

CLIP FILTER RETAINER

61013-04A

FILTER END CAP & CLIP KIT W/ 61012-04A

61015-04A

FUEL REGULATOR KIT W/ O-RING, & SPACERS

61016-04B

FUEL PUMP ASSEMBLY W/ 75255-04A

SEAL FUEL TANK CAP

FUEL RESTRICTOR KIT

CLIP REGULATOR

FUEL CAP W/ 61030-04A

72418-04

HOUSING 4-WAY SOCKET

72419-04

TERMINAL SOCKET, #16-18 AWG

72420-04

SECONDARY LOCK 4-WAY (GRAY)

72425-04

SOCKET HOUSING 2-WAY (GRAY)

72426-04

SECONDARY LOCK 2-WAY (GRAY)

72904-01BK

HOUSING 4-WAY PIN (BLACK)

72990-01

TERMINAL PIN, #18-22 AWG

75218-04D

MODULE ASSEMBLY FUEL PUMP, WITH 1, 3, 4, 5, 6, 7, 9 AND 20 (ELECTRICAL HARNESS NOT INCLUDED)

75219-04

SENDER FUEL LEVEL

75238-07A

FUEL GAUGE,MIRRORED,RED LED

75245-04A

SEAL TOP PLATE

75254-04A

FUEL PUMP INLET SOCK

75255-04A

ELECTRICAL HARNESS FUEL PUMP

75316-07

HARNESS FUEL GAUGE, W/ 72904-01BK & 72990-01
