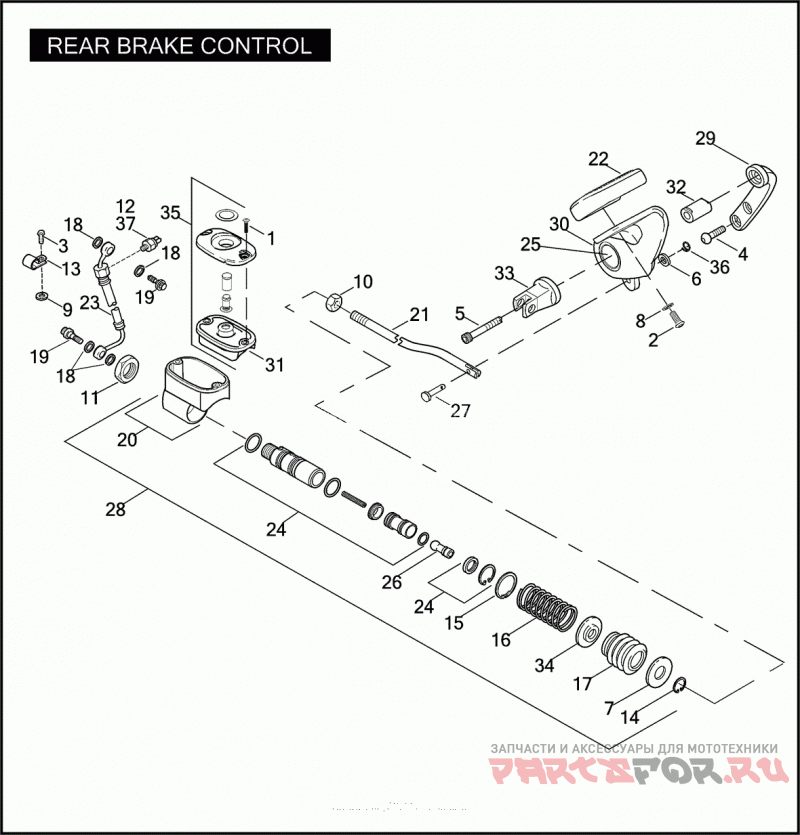

Тормозной цилиндр задний

Harley Davidson FXDSE 1PS8 CVO DYNA (2007)

Harley Davidson
#oem кодцена
1
2579A
SCREW NO. 8-32 X 5/16 POZIDRIV OVAL HD.
2
3026
SCREW NO. 10-32 X 1/2 SOCKET BUTTON HD.
3
3537
SCREW 1/4-28 X 1/2 FLANGE HD., W/LOCKPATCH
4
4059
SCREW 3/8-16 X 1 TORX HD., W/LOCKPATCH, SELF-TAPPING (GRADE 8)
5
4339A
SCREW 3/8-16 X 2-3/4 TORX HD. (GRADE 8)
6
6099
WASHER 1/4 X 7/16 X 1/16
7
6366
WASHER 1/2 X 1-1/4 X 3/32
8
6716
WASHER NO. 10 X 1/2 X 3/64
9
7229W
LOCKWASHER 1/4 INTERNAL/EXTERNAL TOOTH
10
7744
JAMNUT 5/16-24 X 3/16 X 1/2 (GRADE 2)
11
7951
JAMNUT 3/4-16 X 17/64 X 1-7/64 (GRADE 2)
12
9907
TERMINAL FLAG
13
10059A
Зажим
14
40903-87
Стопорное кольцо
15
40918-87
Стопорное кольцо
16
40920-87
Пружина
17
40922-87A
BOOT master cylinder
18
41731-01
Прокладка
19
41747-82A
Болт
20
41803-06
RESERVOIR ASSEMBLY
21
41962-03
PUSH ROD KIT W/ UNUSED CLIP
22
42722-07
BRAKE PEDAL PAD KIT W/ 3026 & 6716
23
42222-07
BRAKE LINE
24
42382-87E
REPAIR KIT master cylinder
25
42443-80A
BUSHING BRAKE LEVER
26
42448-87
PUSH ROD
27
42460-80B
CLEVIS PIN
28
42474-06C
MASTER CYLINDER WITH 1, 6, 16, 17, 18, 19, 23, 28, 31, 39, 42 AND 43
29
33697-03A
SUPPORT RIGHT HAND FOOTREST
30
42542-03
BRAKE PEDAL W/ 42443-80A
31
42568-05A
GASKET master cylinder reservoir (used w/ 46458-05)
32
42664-03A
CLEVIS FOOTREST MOUNT
33
42665-03
PIVOT SHAFT
34
44126-87
SPRING RETAINER
35
46457-05B
COVER MASTER CYLINDER WITH 42568-05A
36
51938-04
COTTER CIRCLE
37
72023-51E
SWITCH KIT stop lamp
