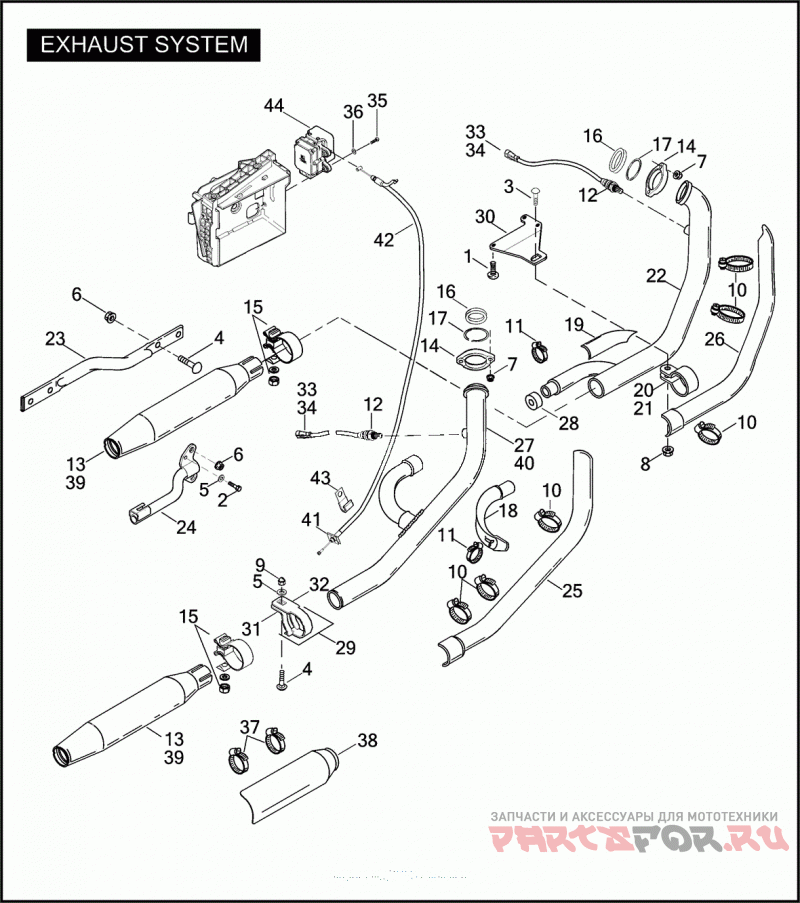

Глушитель

Harley Davidson FXDB 1GX4 DYNA STREET BOB (2007)

Harley Davidson
#oem кодцена
1
942
SCREW 1/4-20 X 3/4 TORX BUTTON HD., W/LOCKPATCH (GRADE 8)
2
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
3
5414
BOLT 3/8-16 X 7/8 CARRIAGE (GRADE 5)
4
5445W
BOLT 5/16 X 1-1/4 CARRIAGE (GRADE 5)
5
6702
WASHER 5/16 X 11/16 X 1/16
6
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
7
7593
NUT 5/16-24 FLANGE
8
7601
LOCKNUT 3/8-16 FLANGE
9
7739
LOCKNUT 5/16-18 X 11/32 X 1/2
10
9955
Зажим
11
10119
Зажим
12
27683-07
SENSOR OXYGEN, W/ 27714-06, 72009-05, & 72011-05
12
27714-06
WASHER OXYGEN SENSOR (NOT ILLUSTRATED)
13
64941-07
MUFFLER ASSEMBLY
14
65184-02
FLANGE PIPE
15
65296-95A
MUFFLER CLAMP
16
65324-83B
GASKET, exhaust port
17
65325-83A
RETAINING RING EXHAUST GASKET
18
65376-95A
SHIELD CROSSOVER, REAR (JAPAN)
19
65379-95
SHIELD CROSSOVER - FRONT (BLACK)
20
65440-06
CLAMP BRACKET UPPER PIPE
21
65441-06
CLAMP BRACKET LOWER PIPE
22
65631-06
EXHAUST PIPE FRONT
23
65674-95
SUPPORT MUFFLER
24
65695-07
BRACKET REAR EXHAUST
25
65701-06A
SHIELD REAR EXHAUST (CHROME)
26
65746-06
SHIELD FRONT EXHAUST (CHROME)
27
65825-06
EXHAUST PIPE REAR (DOMESTIC, JAPAN)
28
65830-03
GASKET INTERCONNECT
29
65946-07
CLAMP ASSEMBLY
30
65975-99
EXHAUST BRACKET FRONT
33
72009-05
HOUSING 2-WAY PIN
34
72011-05
WIRE SEAL #16-20 AWG (YELLOW)
35
923
SCREW 1/4-20 X 3/4 SOCKET PAN HD.
36
6703
WASHER 1/4 X 5/8 X 1/16
37
10074
CLAMP (HDI)
38
65463-00
SHIELD MUFFLER (HDI)
39
65868-07
MUFFLER ASSEMBLY FRONT (HDI, ENGLAND, AUSTRALIA)
39
66025-07
MUFFLER ASSEMBLY REAR (HDI, ENGLAND, AUSTRALIA)
40
65930-07B
EXH PIPE ASY,RR CHRM-HDI
41
66767-07
CABLE RETAINER EXHAUST VALVE (HDI, AUSTRALIA, ENGLAND
42
66778-07
CABLE EXHAUST VALVE (HDI, AUSTRALIA, ENGLAND)
43
66798-07
CLAMP EXHAUST VALVE (HDI, AUSTRALIA, ENGLAND)
44
70991-07
ACTUATOR EXHAUST (HDI, AUSTRALIA, ENGLAND)
44
71019-07
SHROUD EXHAUST ACTUATOR (NOT ILLUSTRATED) (HDI, AUSTRALIA, ENGLAND)
