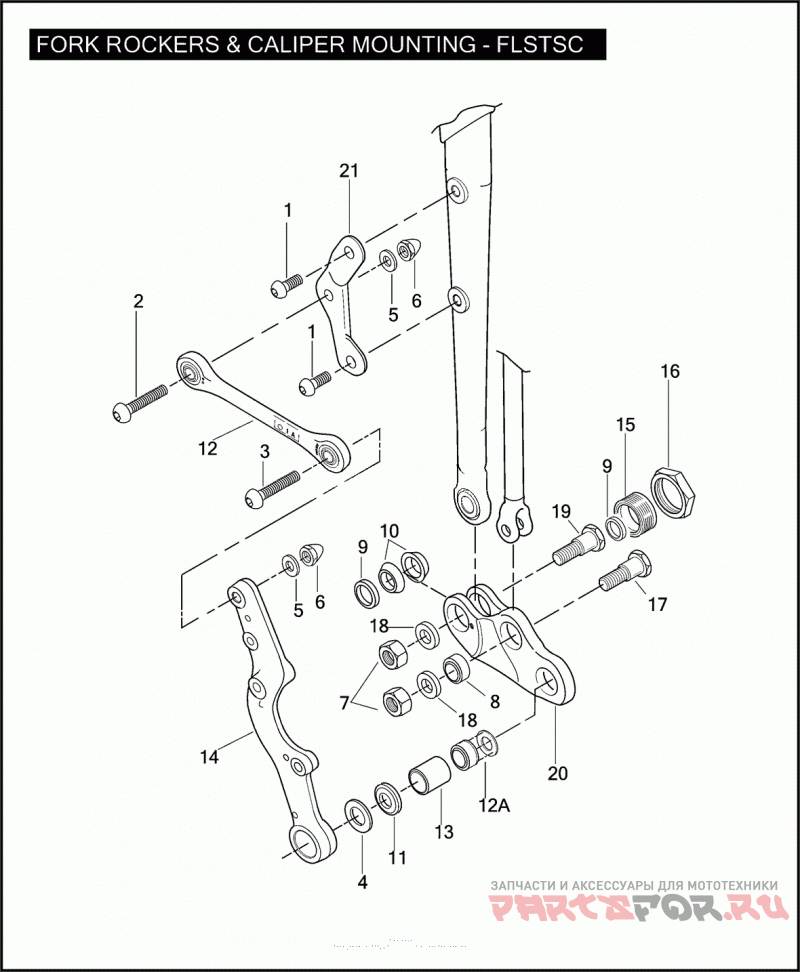

FORK ROCKERS & CALIPER MOUNTING - FLSTSC

Harley Davidson FLSTSC 1BY5 SPRINGER CLASSIC (2007)

Harley Davidson
#oem кодцена
1
4163
SCREW 3/4-16 X 7/8 TORX BUTTON HD. (GRADE 8)
2
4164
SCREW 3/8-16 X 1-1/4 HEX HD. (GRADE 8)
3
4165
SCREW 3/4-16 X 1-39/64 HEX HD. (GRADE 8)
4
6042A
WASHER 1 X 1-1/5 X 1/16 LAYERED
5
6812
WASHER 13/32 X 11/16 X 1/16
6
7862
ACORN NUT 3/8-16 (CHROME)
7
7880
NUT 1/2-13 X 7/16 X 3/4 (GRADE 2)
8
9139
BEARING SPHERICAL, FORK TO ROCKER
9
9140
RACE SPHERICAL BEARING, FORK TO ROCKER
10
9141
BALL SPHERICAL BEARING, FORK TO ROCKER
11
11260
Резинка
12
41070-05
BRAKE REACTION LINK
12A
43360-00
SPACER LEFT SIDE OF WHEEL, W/ THRUST WASHER
13
44031-97
PIVOT SLEEVE LEFT
13
44086-97
BUSHING CALIPER MOUNTING (NOT ILLUSTRATED)
14
44350-05
BRACKET CALIPER MOUNTING
15
45655-88
BEARING RETAINER RIGID FORK
16
45659-88
JAM NUT BEARING RETAINER
17
45660-88A
PIVOT STUD RIGID FORK TO ROCKER
18
45662-88
WASHER ROCKER TO FORK LEG
19
45663-88A
PIVOT STUD SPRING FORK TO ROCKER
20
46210-05
FORK ROCKER RIGHT
20
46216-05
FORK ROCKER LEFT, W/ 44031-97
21
46277-05
FORK LEG BRACKET
