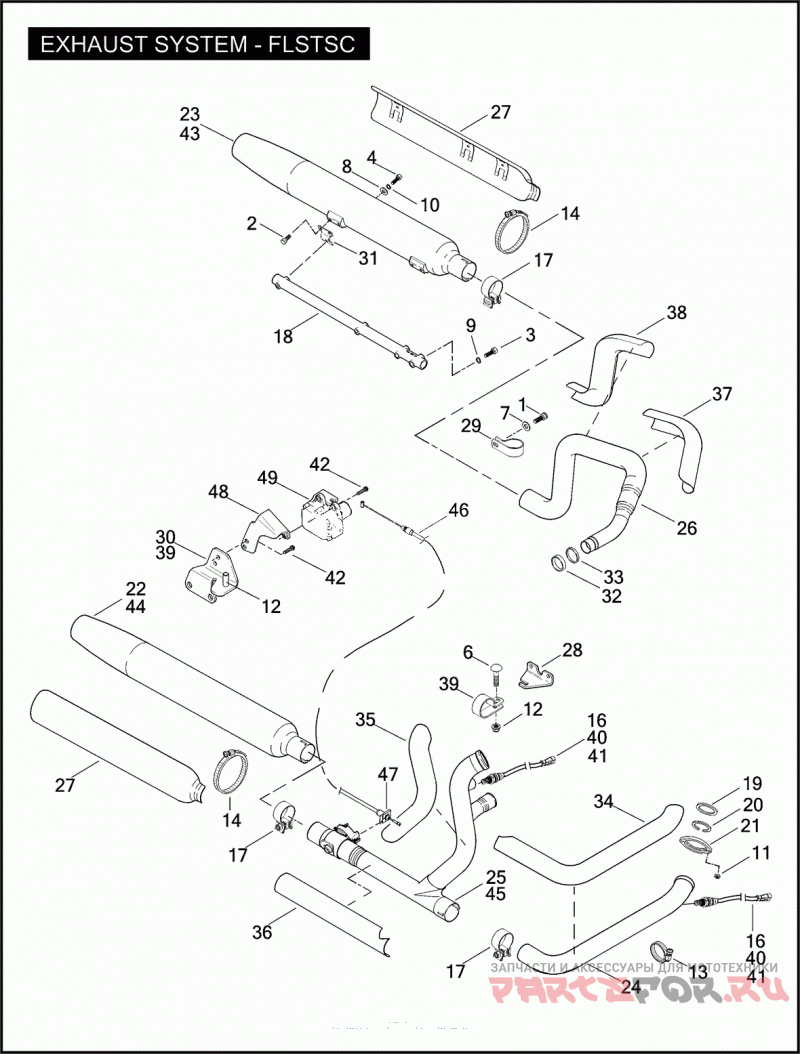

EXHAUST SYSTEM - FLSTSC

Harley Davidson FLSTSC 1BY5 SPRINGER CLASSIC (2007)

Harley Davidson
#oem кодцена
1
861A
SCREW 3/8-16 X 1 KNURLED HD. (GRADE 8)
2
3391
SCREW 1/4-20 X 7/16 HEX FLANGE HD.
3
3775
SCREW 3/8-16 X 2 HEX HD. (GRADE 5)
4
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
5
4722
BOLT 3/8-16 X 2-1/4 HEX HD. (GRADE 5)
6
5416
BOLT 3/8-16 X 1/8 CARRIAGE (GRADE 5)
7
6701
WASHER 3/8 X 13/16 X 1/16
8
6702
WASHER 5/16 X 11/16 X 1/16
9
7038
LOCKWASHER 3/8
10
7041
LOCKWASHER 5/16
11
7593
NUT 5/16-24 FLANGE
12
7601
LOCKNUT 3/8-16 FLANGE
13
9955
Зажим
14
10074
Зажим
15
10147
CLIP (NOT ILLUSTRATED)
16
27683-07
OXYGEN SENSOR W/ 27714-06, 72009-05 & 72011-05
16
27714-06
SEAL RING (NOT ILLUSTRATED)
17
65296-95A
CLAMP MUFFLER
18
65311-97
SUPPORT TUBE MUFFLER
19
65324-83B
GASKET, exhaust port
20
65325-83A
RETAINING RING EXHAUST GASKET
21
65184-02
CLAMP EXHAUST MANIFOLD
22
65753-07
MUFFLER ASSEMBLY RIGHT (DOM, CAL, CAN)
23
65751-07
MUFFLER ASSEMBLY LEFT (DOM, CAL, CAN)
24
66782-07
EXHAUST PIPE FRONT
25
66783-07
EXHAUST PIPE RIGHT REAR (DOM, CAL, CAN, JAP)
26
66754-07
EXHAUST PIPE LEFT
27
65651-05
SHIELD MUFFLERS
28
65652-07
BRACKET EXHAUST
29
65654-97
CLAMP EXHAUST PIPE
30
65708-07
BRACKET REAR MOUNTING
31
65734-95
BRACKET MUFFLER
32
65781-82
GASKET INTERCONNECT
33
65782-82
WASHER INTERCONNECT
34
65907-97A
HEAT SHIELD FRONT
35
65908-00A
HEAT SHIELD REAR
36
65909-00
HEAT SHIELD LOWER RIGHT REAR
37
65910-97
HEAT SHIELD LEFT FRONT
38
65911-97
HEAT SHIELD LEFT REAR
39
65946-07
EXHAUST CLAMP ASSEMBLY 2-PIECE CLAMP
40
72009-05
HOUSING 2-WAY PIN
41
72011-05
WIRE SEAL #16-20 AWG
42
3574
SCREW 1/4-20 X 3/4 FLANGE
43
65759-07
MUFFLER ASSEMBLY LEFT (HDI, AUS, ENG)
43
64962-07
MUFFLER ASSEMBLY LEFT (JAP)
44
65757-07
MUFFLER ASSEMBLY RIGHT (HDI, AUS, ENG)
44
64963-07
MUFFLER ASSEMBLY RIGHT (JAP)
45
66786-07
EXHAUST PIPE RIGHT REAR (HDI, AUS, ENG)
46
66766-07
EXHAUST ACTUATOR CABLE W/ 66767-07 (HDI, AUS, ENG)
47
66767-07
RETAINER CABLE (HDI, AUS, ENG)
48
66797-07
BRACKET EXHAUST ACTUATOR (HDI, AUS, ENG)
49
70991-07
EXHAUST ACTUATOR (HDI, AUS, ENG)
49
71019-07
SHROUD EXHAUST ACTUATOR (HDI, AUS, ENG)
