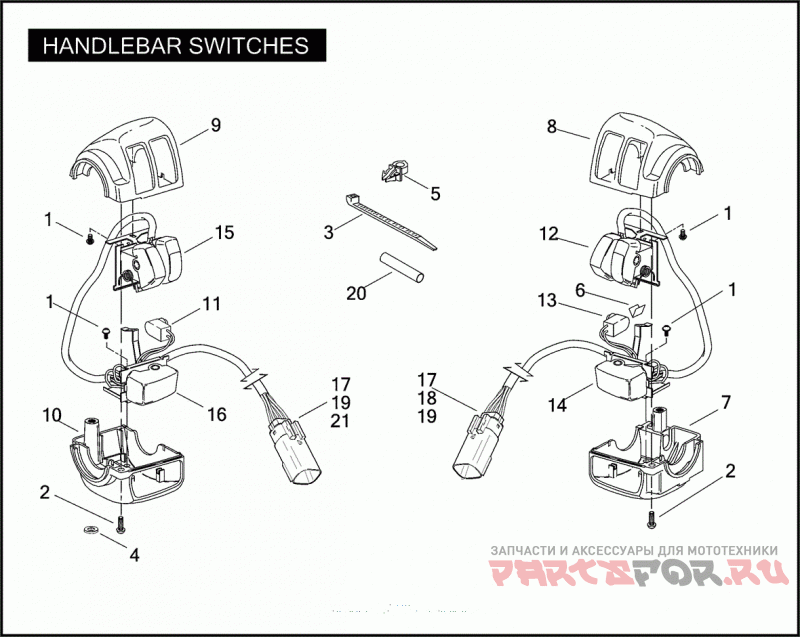

HANDLEBAR SWITCHES

Harley Davidson FLSTF 1BX5 FAT BOY (2007)

HANDLEBAR SWITCHES

#

oem код

название

цена

1

SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER

SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER

2

SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)

SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)

3

CABLE STRAP (AS REQUIRED)

CABLE STRAP (AS REQUIRED)

4

Уплотнитель резиновый

Уплотнитель резиновый

5

RETAINER WIRING

RETAINER WIRING

6

Зажим

Зажим

7

HOUSING LOWER RIGHT

HOUSING LOWER RIGHT

8

HOUSING UPPER RIGHT

HOUSING UPPER RIGHT

9

HOUSING UPPER LEFT

HOUSING UPPER LEFT

10

HOUSING LOWER LEFT

HOUSING LOWER LEFT

11

CLUTCH SWITCH W/ 10181 & 72266-94

CLUTCH SWITCH W/ 10181 & 72266-94

12

SWITCH ASSEMBLY ENGINE STOP/START, W/ 10181 & 72266-94

SWITCH ASSEMBLY ENGINE STOP/START, W/ 10181 & 72266-94

13

STOPLAMP SWITCH FRONT, W/ 10181 & 72266-94

STOPLAMP SWITCH FRONT, W/ 10181 & 72266-94

14

SWITCH ASSEMBLY, right turn signal, w/ 10181 & 72266-94

SWITCH ASSEMBLY, right turn signal, w/ 10181 & 72266-94

15

SWITCH ASSEMBLY, headlamp high/low & horn, w/ 10181 & 72266-94

SWITCH ASSEMBLY, headlamp high/low & horn, w/ 10181 & 72266-94

16

SWITCH ASSEMBLY, left turn signal, w/ 10181 & 72266-94

SWITCH ASSEMBLY, left turn signal, w/ 10181 & 72266-94

17

TERMINAL PIN, #16-20 AWG (LEFT)

TERMINAL PIN, #16-20 AWG (LEFT)

18

HOUSING 6-WAY PIN, RIGHT

HOUSING 6-WAY PIN, RIGHT

19

TERMINAL SOCKET (AS REQUIRED)

TERMINAL SOCKET (AS REQUIRED)

20

SHRINK TUBE DUAL WALL, .3 X 2 IN. (AS REQUIRED)

SHRINK TUBE DUAL WALL, .3 X 2 IN. (AS REQUIRED)

21

HOUSING 8-WAY PIN, LEFT

HOUSING 8-WAY PIN, LEFT
