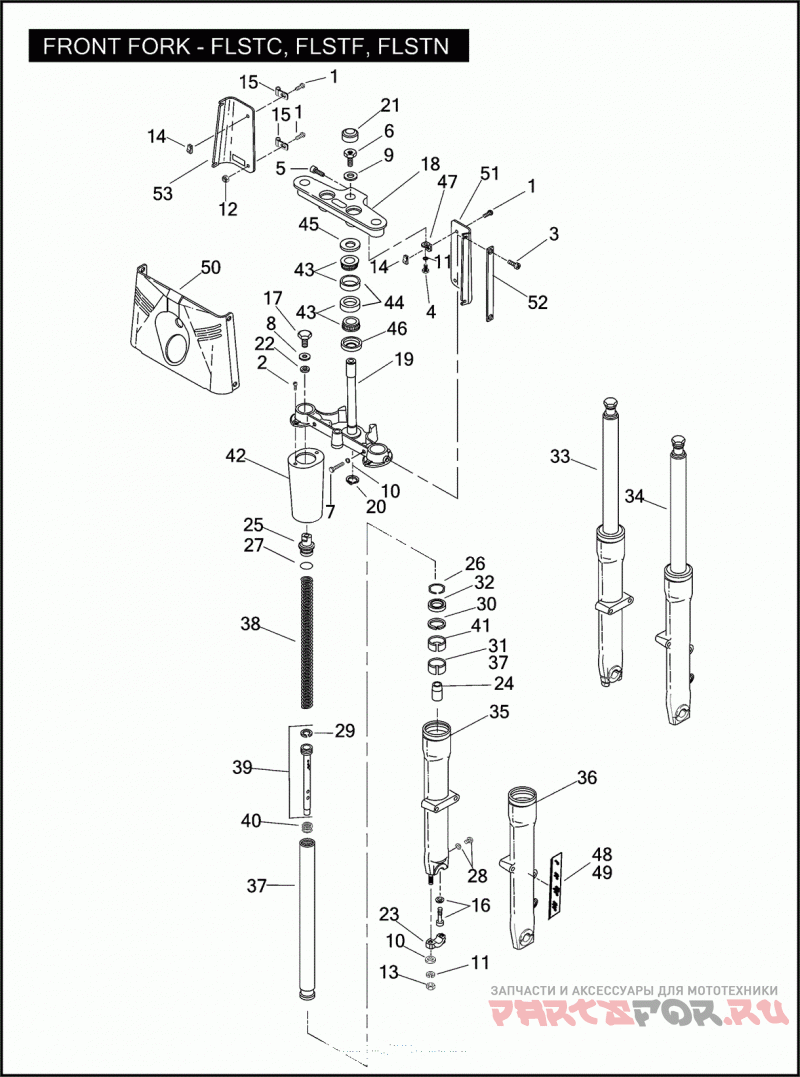

FRONT FORK - FLSTC, FLSTF, FLSTN

Harley Davidson FLSTF 1BX5 FAT BOY (2007)

Harley Davidson
#oem кодцена
1
941
SCREW 1/4-20 X 5/8 SOCKET BUTTON HD. (GRADE 8)
2
3537
SCREW 1/4-28 X 1/2 FLANGE HD., W/LOCKPATCH
3
3538
SCREW 5/16-24 X 1/2 SOCKET BUTTON HD.
4
3953W
BOLT 5/16-24 X 1/2 HEX HD. (GRADE 5)
5
4350A
SCREW 3/8-16 X 1-1/2 SOCKET HD.
6
4453
BOLT 1/4-20 X 7/8 HEX HD. SPECIAL WITH TAPPED HOLE
7
4729
BOLT 7/16-20 X 1-1/4 HEX HD. (GRADE 5)
8
5710
WASHER 63/64 X 1-1/2 X 5/64
9
6655
WASHER 5/8 X 1-1/2 X 7/64
9A
6702
WASHER 5/16 X 11/16 X 1/16
10
7039
LOCKWASHER 7/16
11
7041
LOCKWASHER 5/16
12
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
13
7962
NUT 5/16-18 X 1-11/16
14
8108
SPEEDNUT 1/4-20
15
41713-86
Зажим
16
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
17
45419-80
CAP SLIDER TUBE
18
45456-86B
BRACKET UPPER
19
45605-00A
STEM & BRACKET ASSEMBLY INCLUDING LOWER BEARING CONE
20
45611-86
RETAINING RING FORK STEM
21
45670-80A
CAP FORK STEM
22
45733-48
OIL SEAL FORK TUBE PLUG
23
45835-00
AXLE CAP RIGHT SLIDER
24
45803-97
STOP OIL LOCK PIECE
25
45838-77
PLUG FORK TUBE
26
45842-77A
RETAINING RING OIL SEAL
27
45845-77
O-RING SLIDER TUBE PLUG
28
45858-77
DRAIN SCREW W/ WASHER & SLIDER
30
45865-84
WASHER SLIDER
32
45875-84A
Сальник
33
48717-07A
FORK SLIDER & TUBE ASSEMBLY W/ 48666-07, RIGHT
34
48720-07A
FORK SLIDER & TUBE ASSEMBLY W/ 48666-07, LEFT
35
48718-07
SLIDER ASSEMBLY RIGHT
36
48721-07
SLIDER ASSEMBLY LEFT
37
48724-07
STANCHION TUBE W/ 45866-84
38
48725-07
Пружина
39
48723-07
DAMPER TUBE W/ 45859-77A
40
45933-86
SPRING DAMPER TUBE
41
45940-84
BUSHING SLIDER
42
47728-07
COVER SLIDER, LEFT
42
47718-07
COVER SLIDER, RIGHT
43
48300-60
ROLLER BEARING W/ CUP
44
48315-60
BEARING CUP
45
48361-80
DUST SHIELD BEARING, UPPER
46
48365-48A
DUST SHIELD BEARING, LOWER
46
48666-07
CASE COVER (NOT ILLUSTRATED)
47
50991-86
BRACKET FRONT PANEL
48
60253-07
BRACKET ASSEMBLY REFLECTOR
49
60254-07
REFLECTOR AMBER
50
67982-07
FRONT PANEL
51
67816-86
BACK PANEL LEFT REAR (STAINLESS STEEL)
52
67819-86
TRIM STRIP FRONT PANEL
53
67814-86
BACK PANEL RIGHT REAR (STAINLESS STEEL)
