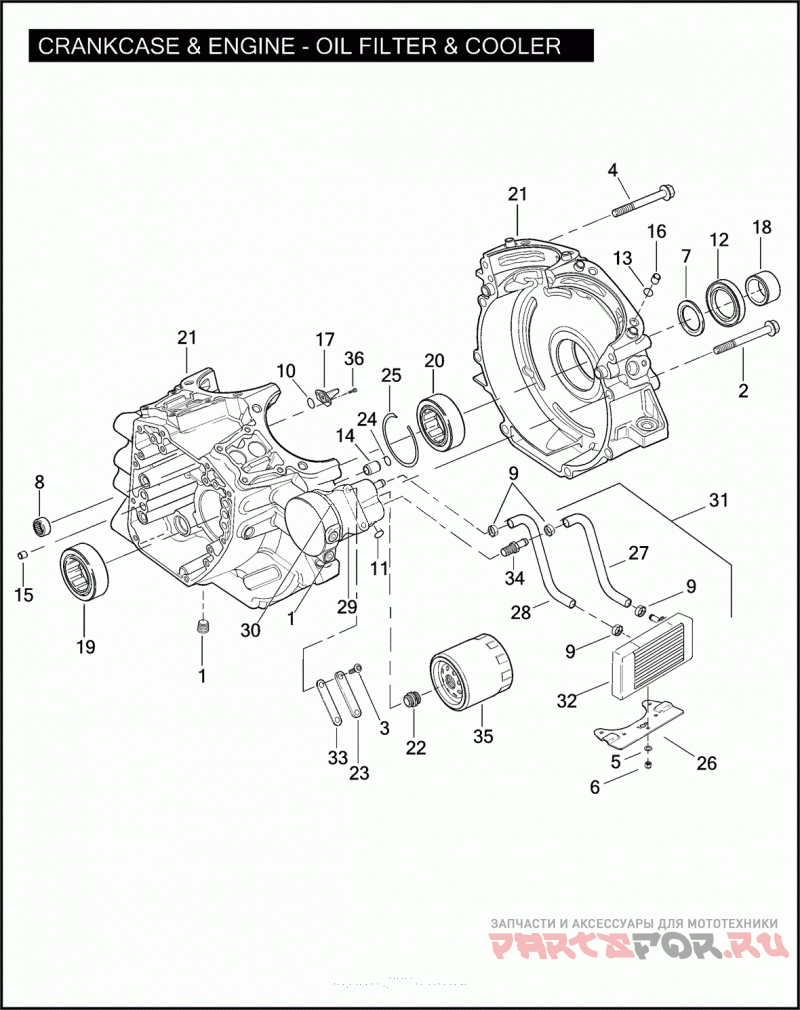

CRANKCASE & ENGINE - OIL FILTER & COOLER 103 ™

Harley Davidson FLHTP 1FMM ELECTRA GLIDE STANDARD POLICE (2007)

Harley Davidson
#oem кодцена
1
765
Заглушка
2
895
SCREW 5/16-18 X 3.0 HEX FLANGE HD. (GRADE 5)
3
924
SCREW 1/4-20 X 33/64 SOCKET PAN HD.
4
1090A
SCREW, 5/16-18 X 3-3/4 hex flange hd.w/ seal ring
5
6703
WASHER 1/4 X 5/8 X 1/16
6
7671
LOCKNUT 1/4-20 NYLON
7
8972
WASHER 1-1/4 X 1-53/64 X 1/8
8
9215
BEARING NEEDLE, LEFT SIDE, CAMSHAFT
9
10198
Зажим
10
11140
Уплотнительное кольцо
11
11290
Уплотнительное кольцо
12
12068
SEAL OIL
13
11273
Уплотнительное кольцо
14
16574-99A
Палец
15
16589-99A
Палец
16
16595-99A
Палец
17
22307-99
JET COOLING, PISTON, W/ 11140
17
24004-03B
BEARING KIT LEFT SIDE W/ 8972, 24605-07 & 35114-02
18
24009-06
SPACER SPROCKET SHAFT
20
24605-07
BEARING MAIN
21
24621-06B
CRANKCASE SET w/ 1, 2, 3, 5, 6, 9, 10, 11, 12, 16, 18, 20 & 3983 (not shown) bolts (black)
22
26041-05A
Адаптер
24
26432-76A
Уплотнительное кольцо
25
35114-02
RING RETAINING, INTERNAL
26
62108-03
BRACKET MOUNTING, OIL-COOLER
27
62629-05A
HOSE OIL - SHORT
28
62641-05A
HOSE OIL - LONG
29
63059-07
ADAPTER ASSEMBLY OIL COOLER W/ 924, 11290, 26356-05A, 63066-07, 63084-07, & 63533-41A
30
63066-07
Прокладка
31
63083-07
OIL COOLER CORE W/ STONE PLATE
32
63083-07
OIL COOLER CORE W/ STONE PLATE
33
63084-07
Прокладка
34
63533-41A
Фитинг
35
63798-99A
FILTER OIL (CHROME)
36
68042-99
SCREW NO. 8-32 X 3/8 TORX HD.
36
89584-07
PROTECTOR CAP (NOT ILLUSTRATED)
