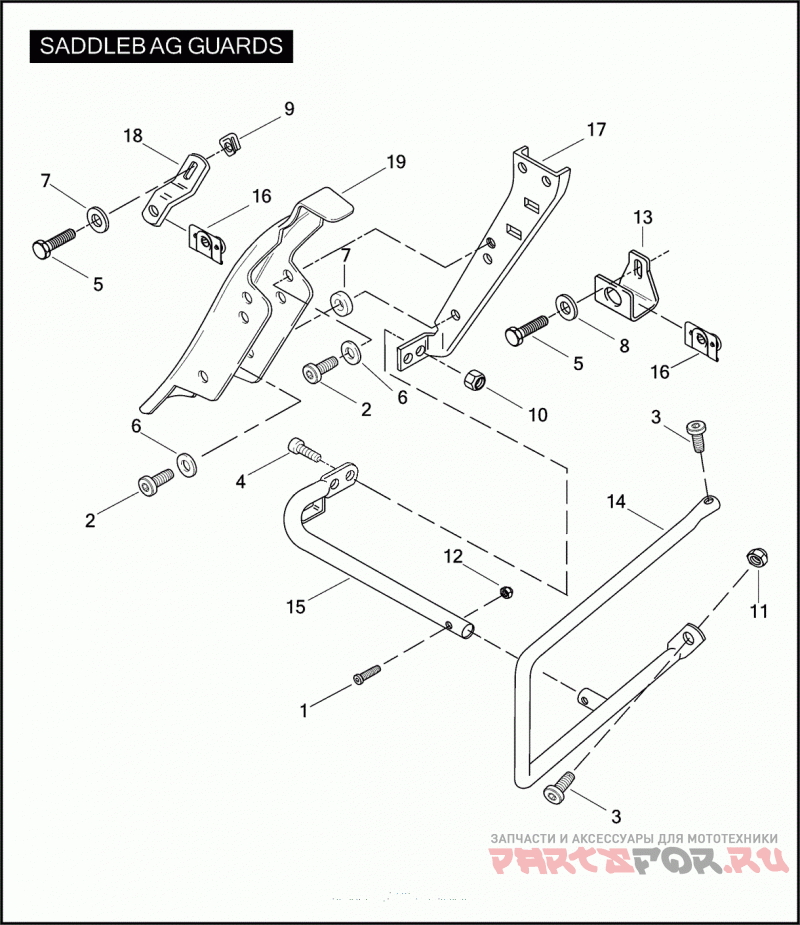

SADDLEBAG GUARDS

Harley Davidson FLHTCUSE2 1PR8 CVO ULTRA CLASSIC (2007)

Harley Davidson
#oem кодцена
1
3601
SCREW 1/4-20 X 1-1/4 KNURLED HD. (GRADE 8)
2
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
3
3678
SCREW 3/8-16 X 7/8 TORX PAN HD.
4
3684
SCREW 5/16-18 X 1 TORX PAN HD.
5
3787
BOLT 1/4-20 X 3/4 HEX HD. (GRADE 5)
6
6116
WASHER 5/16 X 16/16 X 1/8
7
6378
WASHER 21/64 X 7/8 X 11/64
8
6703
WASHER 1/4 X 5/8 X 1/16
9
7490
CLIP NUT
10
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
11
7667
NUT 3/8-16 X 9/32 X 9/16 NYLON INSERT
12
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
13
47449-06
BRACKET FRONT
14
49176-97
GUARD RIGHT
14
49187-97
GUARD LEFT
15
49194-85
SUPPORT SADDLEBAG, LEFT (BLACK)
15
90781-93
SUPPORT SADDLEBAG, RIGHT (BLACK)
16
70909-95
RECEPTACLE
17
90718-79C
SUPPORT BRACKET KIT LEFT
17
90720-79C
SUPPORT BRACKET KIT RIGHT
18
90801-06
BRACKET SADDLEBAG MOUNTING
19
91413-07CKF
FILLER STRIP SADDLEBAG TRIM (BLACK ICE)
19
91413-07BSC
FILLER STRIP SADDLEBAG TRIM (LIGHT CANDY CHERRY)
19
91413-07CJX
FILLER STRIP SADDLEBAG TRIM (LIGHTNING BLUE PEARL)
