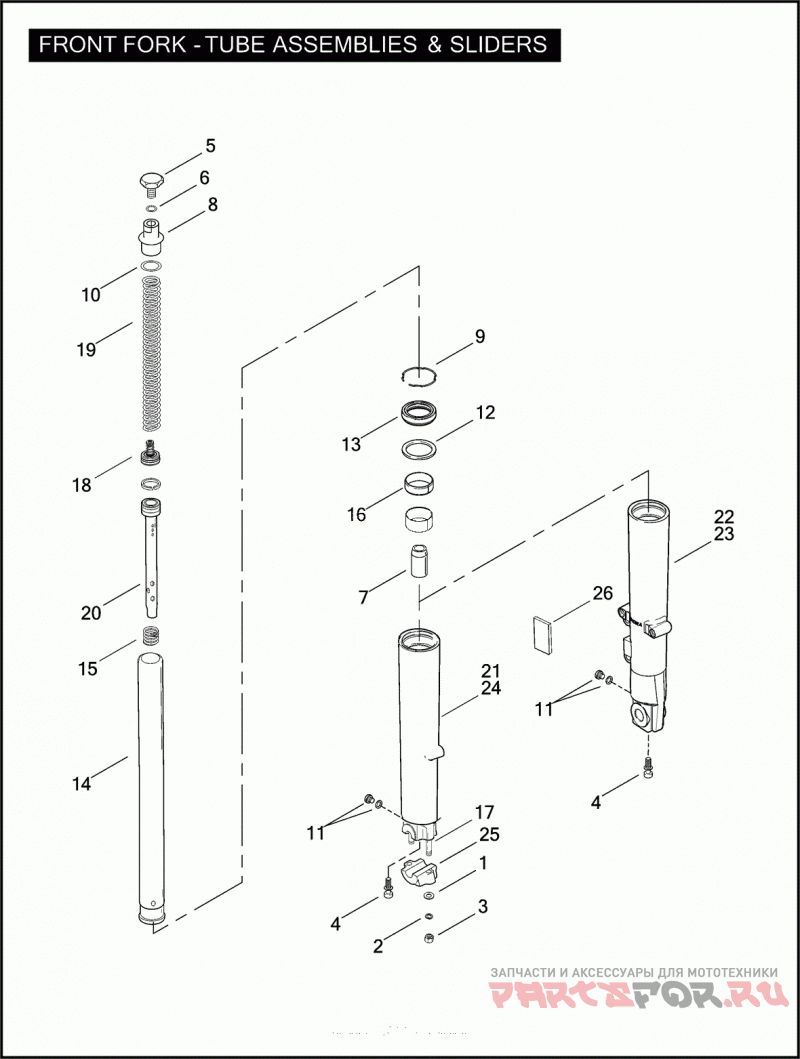

FRONT FORK - TUBE ASSEMBLIES & SLIDERS

Harley Davidson FLHTCUSE2 1PR8 CVO ULTRA CLASSIC (2007)

Harley Davidson
#oem кодцена
1
6702
WASHER 5/16 X 11/16 X 1/16
2
7041
LOCKWASHER 5/16
3
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
4
45405-75A
SCREW DAMPER TUBE, W/ CAPTIVE WASHER
5
45419-80
BOLT FORK
6
45733-48
SEAL OIL, BOLT
7
45803-97
STOP LOWER
8
45838-77
BOLT FRONT FORK
9
45842-77A
RING RETAINING, OIL-SEAL
10
45845-77
Уплотнительное кольцо
11
45858-77
SCREW DRAIN, W/ COPPER WASHER
12
45865-84
SPACER SEAL
13
45875-84A
SEAL OIL
14
45890-97
TUBE ASSEMBLY STANCHION, W/ 45866-84
15
45933-86
SPRING REBOUND
16
45940-84
BUSHING GUIDE
17
45998-73
Шпилька
18
46209-06
DAMPER VALVE
19
46235-06
SPRING FORK
20
46422-06
DAMPER TUBE
21
46621-06A
FORK ASSEMBLY RIGHT FRONT (CHROME) (COMPLETE)
22
46622-06A
FORK ASSEMBLY LEFT FRONT (CHROME) (COMPLETE)
23
45500169
SLIDER,LH/FRT FORK,CHRM
24
46474-00A
SLIDER FORK, RIGHT (CHROME)
25
46499-00
HOLDER RIGHT AXLE
26
59481-00
REFLECTOR RIGHT
26
59482-00
REFLECTOR LEFT (NOT ILLUSTRATED)
