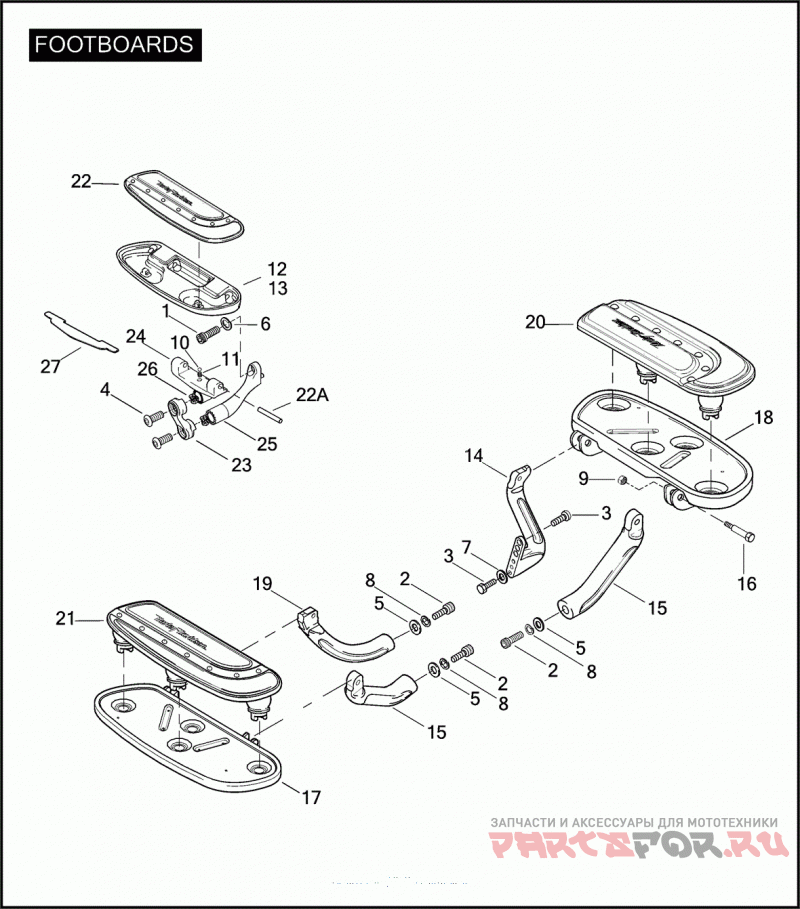

FOOTBOARDS

Harley Davidson FLHTCUSE2 1PR8 CVO ULTRA CLASSIC (2007)

Harley Davidson
#oem кодцена
1
861A
SCREW 3/8-16 X 1 KNURLED HD. (GRADE 8)
2
3599
SCREW 1/2-13 X 1-1/8 KNURLED HD. (GRADE 8)
3
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
4
4631
Винт
5
6738
WASHER 17/32 X 7/8 X 7/64
6
7038
LOCKWASHER 3/8
7
7041
LOCKWASHER 5/16
8
7068
LOCKWASHER 1/2
9
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
9
8126A
PUSHNUT (NOT ILLUSTRATED)
10
8861
Шарик
11
51501-07
Пружина
12
50700-04
FOOTBOARD LEFT-HAND, PASSENGER
13
50701-04
FOOTBOARD RIGHT-HAND, PASSENGER
14
50806-07
BRACKET SUPPORT FOOTBOARD, REAR LEFT
15
47370-04
MOUNTING BRACKET FRONT FOOTBOARD
16
50635-82A
BOLT FOOTBOARD HINGE
17
50683-04
BOTTOM ASSEMBLY RIGHT, W/ HINGE
18
50688-04
BOTTOM ASSEMBLY LEFT, W/ HINGE
19
50571-04
BRACKET SUPPORT FOOTBOARD, REAR RIGHT
20
50812-07
INSERT ASSEMBLY LEFT, RIDER
21
50816-07
INSERT ASSEMBLY RIGHT, RIDER
22
50819-07
FOOTBOARD INSERT PASSENGER, LEFT
22
50823-07
FOOTBOARD INSERT PASSENGER, RIGHT (NOT ILLUSTRATED)
22A
50933-86A
PIVOT PIN
23
50998-07
ARM ROTATING, RIGHT
23
51006-07
ARM ROTATING, LEFT
24
51007-07
SUPPORT FOOTBOARD
25
51008-07
ARM MAIN MOUNTING ASSEMBLY
26
51023-07
WAVE SPRING
27
44430-04
PAD RUBBER (HDI)
28
50957-02B
BILLET FOOT PEG MOUNT, ENGINE GUARD
29
50935-07
IRONSIDE FOOTPEG KIT (NOT SHOWN)
