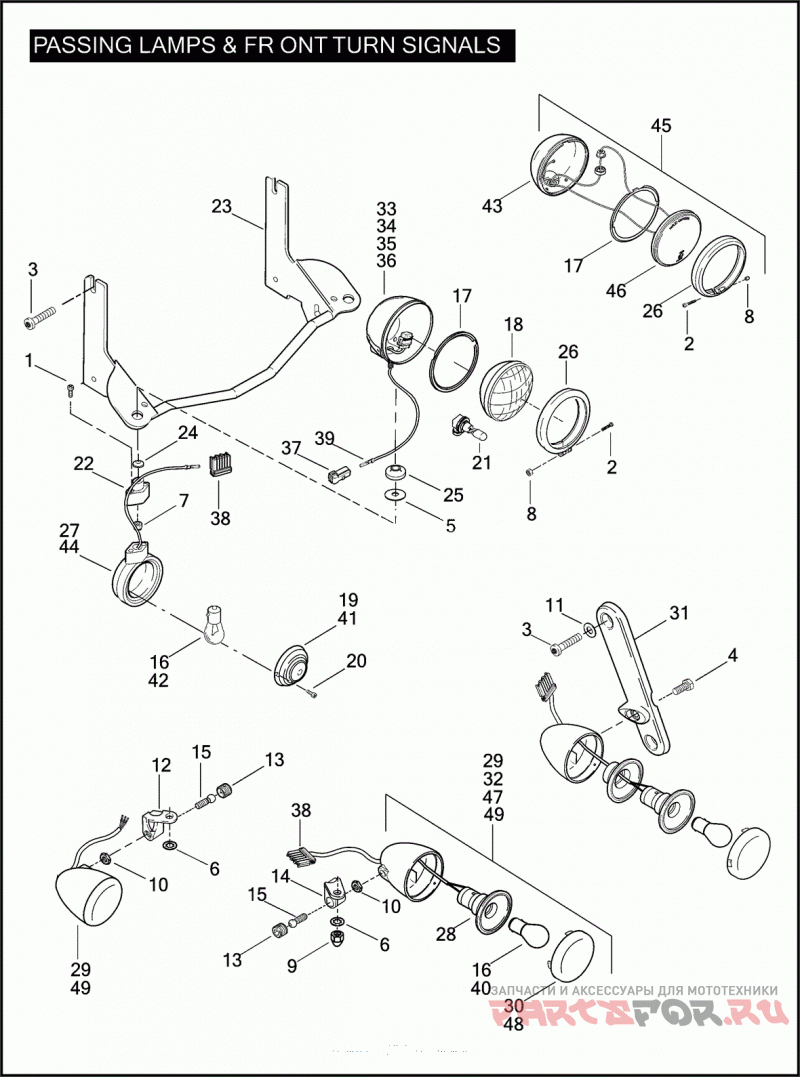

PASSING LAMPS & FRONT TURN SIGNALS

Harley Davidson FLHTC 1FF4 ELECTRA GLIDE CLASSIC (2007)

Harley Davidson
#oem кодцена
1
2647B
SCREW NO. 10-24 X 3/4 SOCKET HD., SELF-LOCKING
2
3514
SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
3
3684
SCREW 5/16-18 X 1 TORX PAN HD.
5
6072
WASHER 3/8 X 1 1/4 X 5/64
7
7601
LOCKNUT 3/8-16 FLANGE
8
7606
LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)
10
10065
CABLE STRAP (NOT ILLUSTRATED)
17
68331-02
RING AUXILIARY LAMPS
18
68414-05A
LAMP AUXILIARY, W/ 68000056 (DOMESTIC)
19
68440-86
LENS TURN SIGNAL (AMBER)
20
68452-86
Винт
21
68000056
BULB (HDI)
22
68519-68A
MOUNTING BRACKET
23
68712-94A
BRACKET PASSING LAMPS
24
68720-62
CLAMP BLOCK PASSING LAMPS
25
68721-62
SWIVEL BLOCK PASSING LAMPS
26
68725-62A
BEZEL RING PASSING LAMPS
27
68766-94
TURN SIGNAL ASSEMBLY W/ 68168-89, 68440-86 & 68452-86
33
72160-06
HOUSING AUXILIARY LAMP, W/ 72161-06, 72298-95 & 72356-95
34
72161-06
SOCKET HOUSING 2-WAY
35
72298-95
TERMINAL SEAL (GREEN)
36
72356-95
SOCKET TERMINAL 18-20 AWG
37
73154-96BK
SOCKET HOUSING 4-PLACE (2) (BLACK)
38
73156-96BK
SOCKET HOUSING 6-PLACE (2) (BLACK)
39
73191-96
TERMINAL SOCKET 16-20 AWG
41
68505-90
LENS TURN SIGNAL (AMBER) (2) (HDI)
42
68572-64B
BULB TURN SIGNAL (2) (HDI)
43
68683-02
LAMP HOUSING (CHROME) (HDI)
44
68767-94
TURN SIGNAL W/ 68452-86, 68505-90 & 68572-64B (2) (HDI)
45
68846-98C
FOGLAMP ASSEMBLY W/ 3514, 7606, 68331-02 68683-02, 68725-62A & 68847-98A (2) (HDI)
46
68847-98A
BULB FOGLAMP (2) (HDI)
