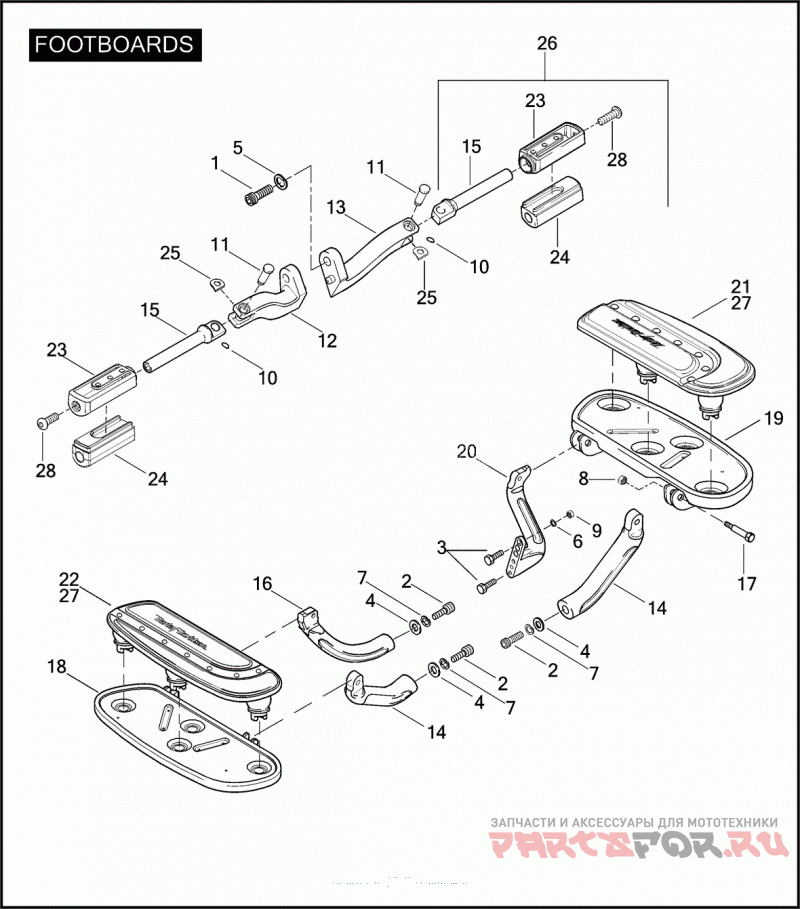

FOOTBOARDS

Harley Davidson FLHRSE3 1PG8 CVO ROAD KING (2007)

Harley Davidson
#oem кодцена
1
861A
SCREW 3/8-16 X 1 KNURLED HD. (GRADE 8)
2
3599
SCREW 1/2-13 X 1-1/8 KNURLED HD. (GRADE 8)
3
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
4
6738
WASHER 17/32 X 7/8 X 7/64
5
7038
LOCKWASHER 3/8
6
7041
LOCKWASHER 5/16
7
7068
LOCKWASHER 1/2
8
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
9
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
10
11304
RING RETAINING
11
45041-01A
CLEVIS PIN PASSENGER FOOTPEG SUPPORT
12
49015-04A
BRACKET RIGHT PASSENGER FOOTPEG
13
49036-04A
SUPPORT LEFT PASSENGER FOOTPEG
14
47370-04
SUPPORT SUPPORT FOOTBOARD, FRONT
15
50351-03
MOUNT FOOTPEG SUPPORT
16
50571-04
BRACKET SUPPORT FOOTBOARD, REAR RIGHT
17
50635-82A
BOLT FOOTBOARD HINGE
18
50683-04
BOTTOM ASSEMBLY RIGHT, W/ HINGE
19
50688-04
BOTTOM ASSEMBLY LEFT, W/ HINGE
20
50806-07
BRACKET SUPPORT, FOOTBOARD, REAR LEFT
21
50812-07
FOOTBOARD INSERT ASSEMBLY LEFT
22
50816-07
FOOTBOARD INSERT ASSEMBLY RIGHT
23
50834-07
FOOTPEG BODY
24
50835-07
FOOTPEG TREAD
25
50912-72
Пружинная шайба
26
50935-07
FOOTPEG KIT W/ 50351-03, 50834-07, 50835-07, & 94409-03
27
50968-07
FOOTBOARD KIT W/ 50812-07, & 50816-07
28
94409-03
SCREW 5/16-18 X 1 SOCKET BUTTON HD W/LOCK PATCH
