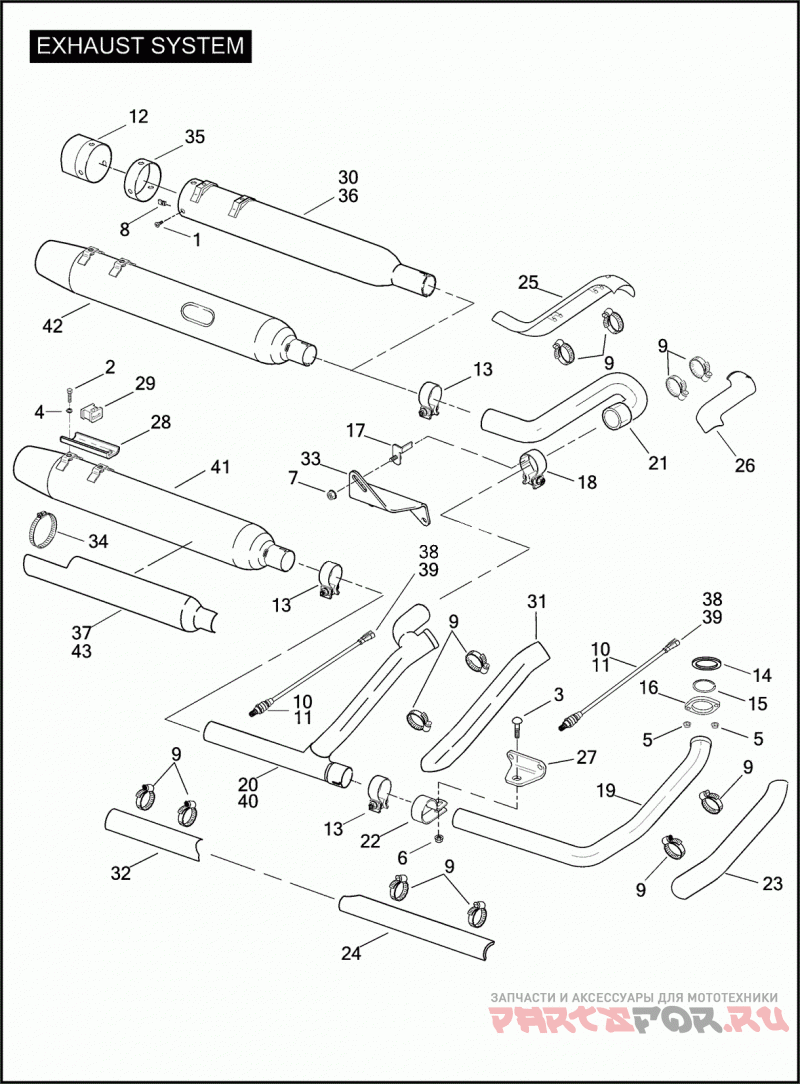

Глушитель

Harley Davidson FLHRSE3 1PG8 CVO ROAD KING (2007)

Harley Davidson
#oem кодцена
1
10200384
SCREW 1/4-20 X 1/2 HEX SOCKET HD. (STAINLESS)
2
3929
SCREW 5/16-18 X 1/2 HEX HD.
3
5416
BOLT 3/8-16 X 1/8 CARRIAGE (GRADE 5)
4
7041
LOCKWASHER 5/16
5
7593
NUT 5/16-24 FLANGE
6
7601
LOCKNUT 3/8-16 FLANGE
7
7796
NUT 5/16-18 X 1/4 EXTERNAL-TOOTH WASHER (GRADE 2)
8
8146
NUT CLIP
9
9955
CLAMP SHIELD
10
27714-06
Уплотнительное Кольцо
11
27719-07
SENSOR OXYGEN (O2) W/ 27714-06, 72009-05, 72011-05
12
64993-07
END CAP
13
65296-95A
MUFFLER CLAMP
14
65324-83B
GASKET, exhaust port
15
65325-83A
RETAINING RING EXHAUST GASKET
16
65328-83A
CLAMP exhaust port
17
65619-98
BRACKET TAB EXHAUST MOUNT AT STARTER
18
65620-98A
CLAMP EXHAUST
19
65621-07
EXHAUST PIPE RIGHT, FRONT
20
65626-07B
EXHAUST PIPE ASSEMBLY RIGHT, REAR
21
65627-07
EXHAUST PIPE LEFT
22
65654-97
CLAMP PIPE TO BRACKET
23
65694-05A
SHIELD FRONT EXHAUST PIPE
24
65634-98A
SHIELD RIGHT EXHAUST PIPE, FRONT
25
65636-07
SHIELD LEFT EXHAUST PIPE, REAR
26
65647-98
SHIELD LEFT EXHAUST PIPE, FRONT
27
65678-07
BRACKET REAR EXHAUST MOUNT
28
65723-85
MOUNTING BRACKET
29
65724-85A
MOUNT RUBBER
30
65913-06B
MUFFLER LEFT, CATALYTIC (CHROME)
31
65951-98A
HEAT SHIELD REAR EXHAUST PIPE
32
65952-98A
HEAT SHIELD EXHAUST PIPE, RIGHT REAR LOWER
33
65988-07A
SUPPORT BRACKET EXHAUST MOUNT AT STARTER
34
66047-05
CLAMP WORM
35
66078-06
RING RETENTION
36
66080-06B
MUFFLER RIGHT, CATALYTIC (CHROME)
37
66219-06
HEAT SHIELD MUFFLER, RIGHT
37
66220-06
HEAT SHIELD MUFFLER, LEFT
38
72009-05
HOUSING 2-WAY, PIN
39
72011-05
WIRE SEAL 16-20 AWG (YELLOW)
40
65626-07B
EXHAUST PIPE ASSEMBLY RIGHT, REAR
40
65905-07B
EXHAUST PIPE RIGHT, REAR (HDI)
41
65748-07
MUFFLER ASSEMBLY RIGHT, CATALYTIC (CHROME) (JAPAN)
41
65863-07
MUFFLER ASSEMBLY RIGHT, CATALYTIC (CHROME) (HDI, ENGLAND)
42
65949-07
MUFFLER ASSEMBLY LEFT, CATALYTIC (CHROME) (HDI, ENGLAND, JAPAN)
43
65742-05
SHIELD MUFFLER RIGHT (HDI, ENGLAND, JAPAN)
43
65743-05
SHIELD MUFFLER LEFT (HDI, ENGLAND, JAPAN)
